Pre-Installation Tasks
15
4.0 Pre-Installation Tasks
Before connecting any components, follow the
safety information in the ETS-Lindgren
Product Information Bulletin included with your
shipment.
Bench Test
Perform the following procedures to verify system operation.
R
EADOUT AND
P
ROBE
B
ENCH
T
EST
1.
Remove the plastic caps from the readout's fiber optic connectors.
Remove the protective covers from the fiber optic cable assembly.
Save all protective caps and covers for future use.
2.
Visually inspect the tips of the fiber optic cables to make sure that they

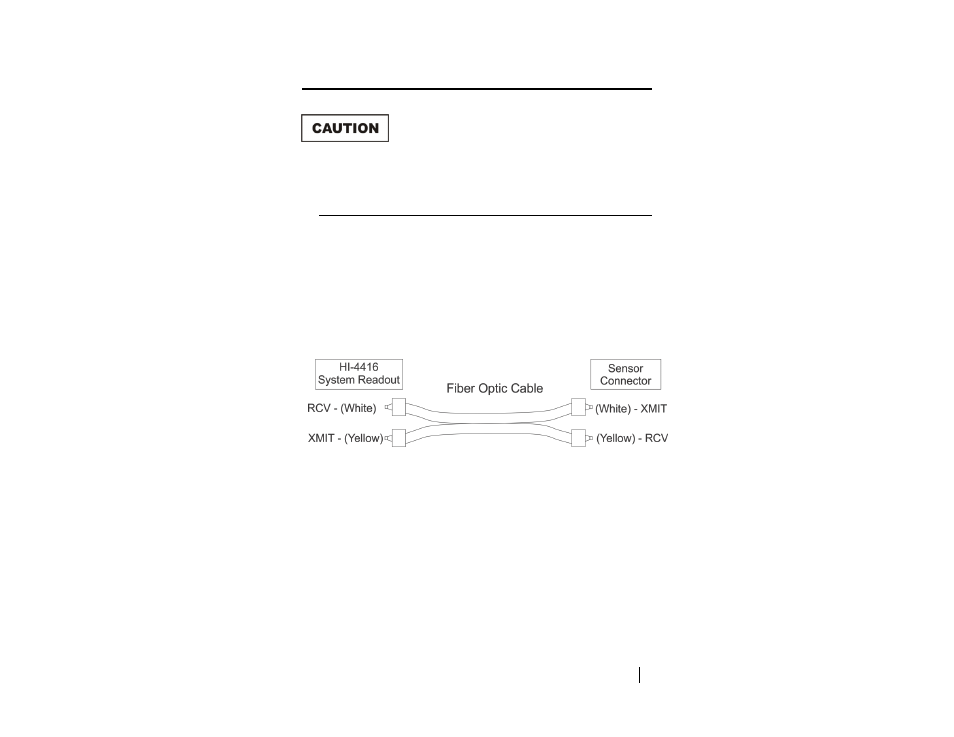

are free of dirt and other contaminants. Connect the fiber optic cable to
the two connectors on the top of the readout; be sure to match the
cable connector colors to those on the readout connectors (yellow to
TRANSMIT; white to RECEIVE).
3.
Connect the other end of the fiber optic cable to the sensor connectors.
Be sure to match the cable connector colors to those on the sensor
connectors (white to XMIT; yellow to RCV).
4.
Set the ARM/OFF switch on the sensor to ARM.
