Standard Configuration
The Model 3150B ships unassembled, and includes the following components to
be assembled, plus the necessary fasteners. For assembly steps, see page 15.


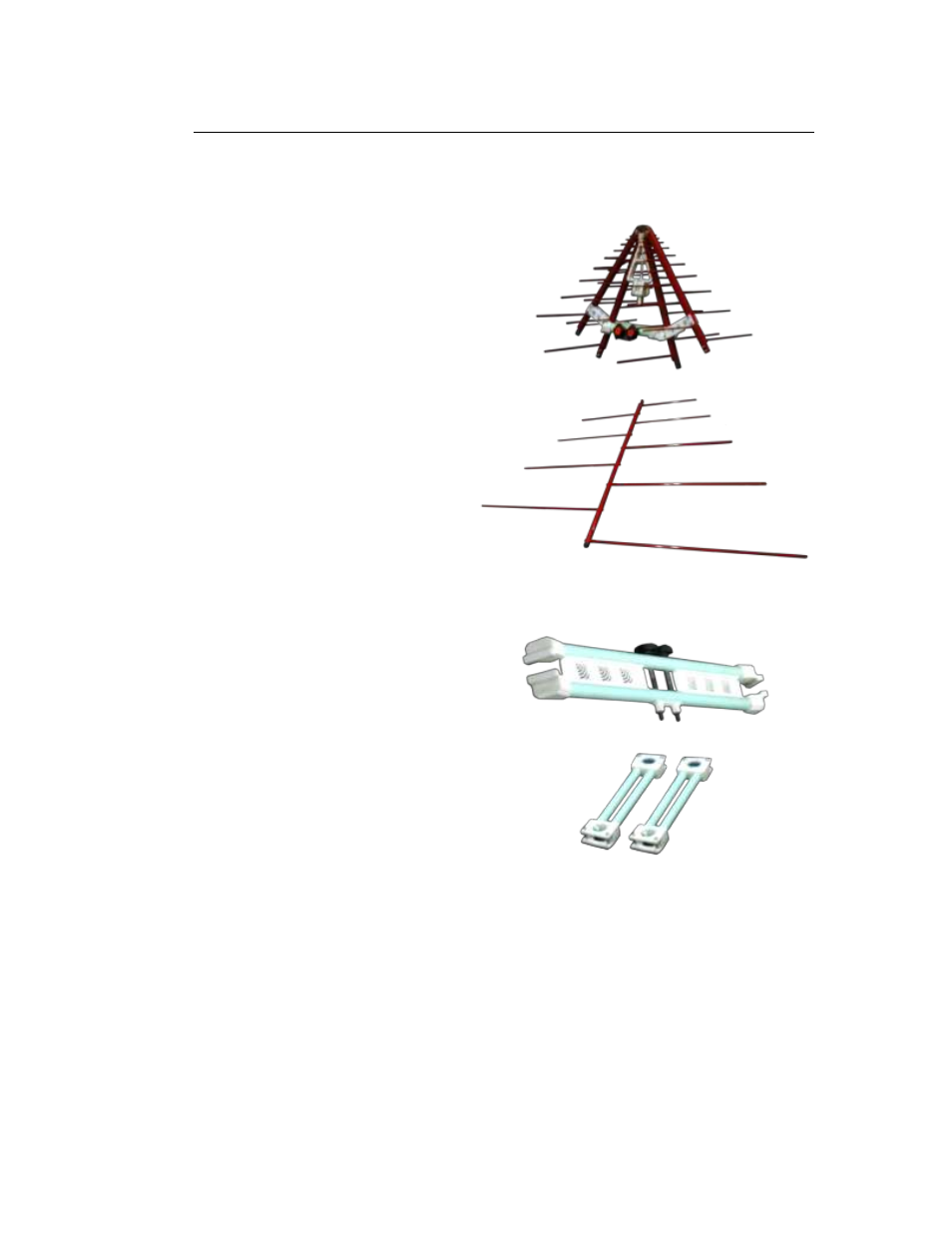

Feed Boom Assembly

Boom Assemblies (4)
The five longest elements
(the last five elements
from the bottom of each
boom assembly) are
removed for shipping. To
attach the removable
elements to the boom
assembly, see page 16. (one boom assembly shown with
the five removable elements attached)

Center Support Bar

Side Support Bars (2)
