S-5500 Curtain Wall Router & Jig Use Instructions
Router Fixtures (DJ32 & DJ33) for Sill Cover Weep Slots
1. Slide sill cover into router fixture (DJ33) and flush cover with end of the top plate of the fixture.
See Figure 4. Use router bit DJ38.
2. Ensure that the router bit is set to the correct depth so not to damage the face of the cover.
3. Clamp fixture to the sill cover and begin making the interior weep slot.
Flush with
top plate
DJ33

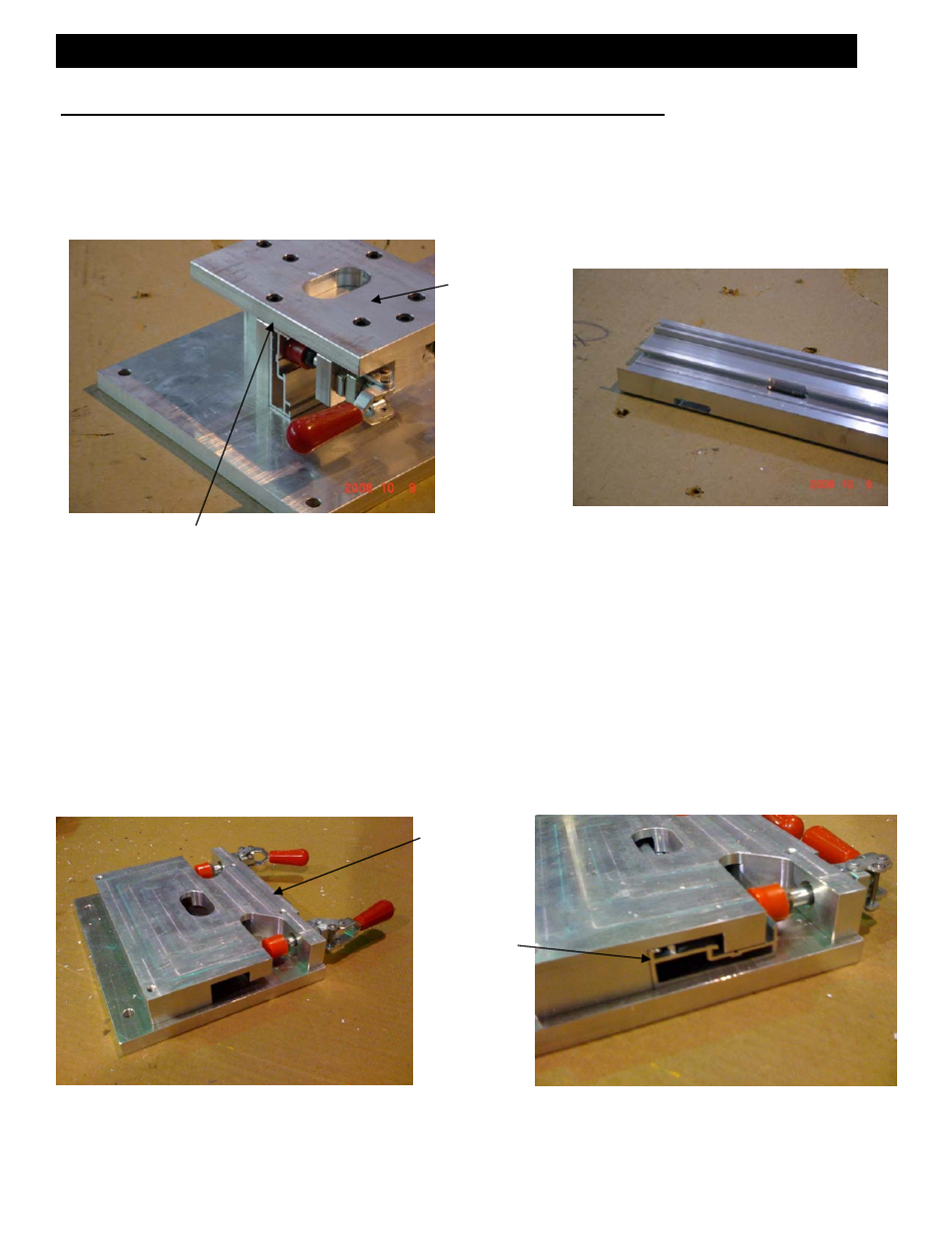

[Fig. 3] [Fig. 4]
1. Slide sill cover into router fixture (DJ32) and flush cover with the end of the bottom plate of
the fixture. See Figure 1. Use router bit DJ38.
2. Clamp fixture to the sill cover and begin making the exterior weep slot.
Flush with
top of plate
DJ32
[Fig. 1] [Fig. 2]
