EFCO S5500 Router & Jig - Manual (Page 2)

EFCO CORPORATION 6/2012 Page 2
S-5500 Curtain Wall Router & Jig Use Instructions

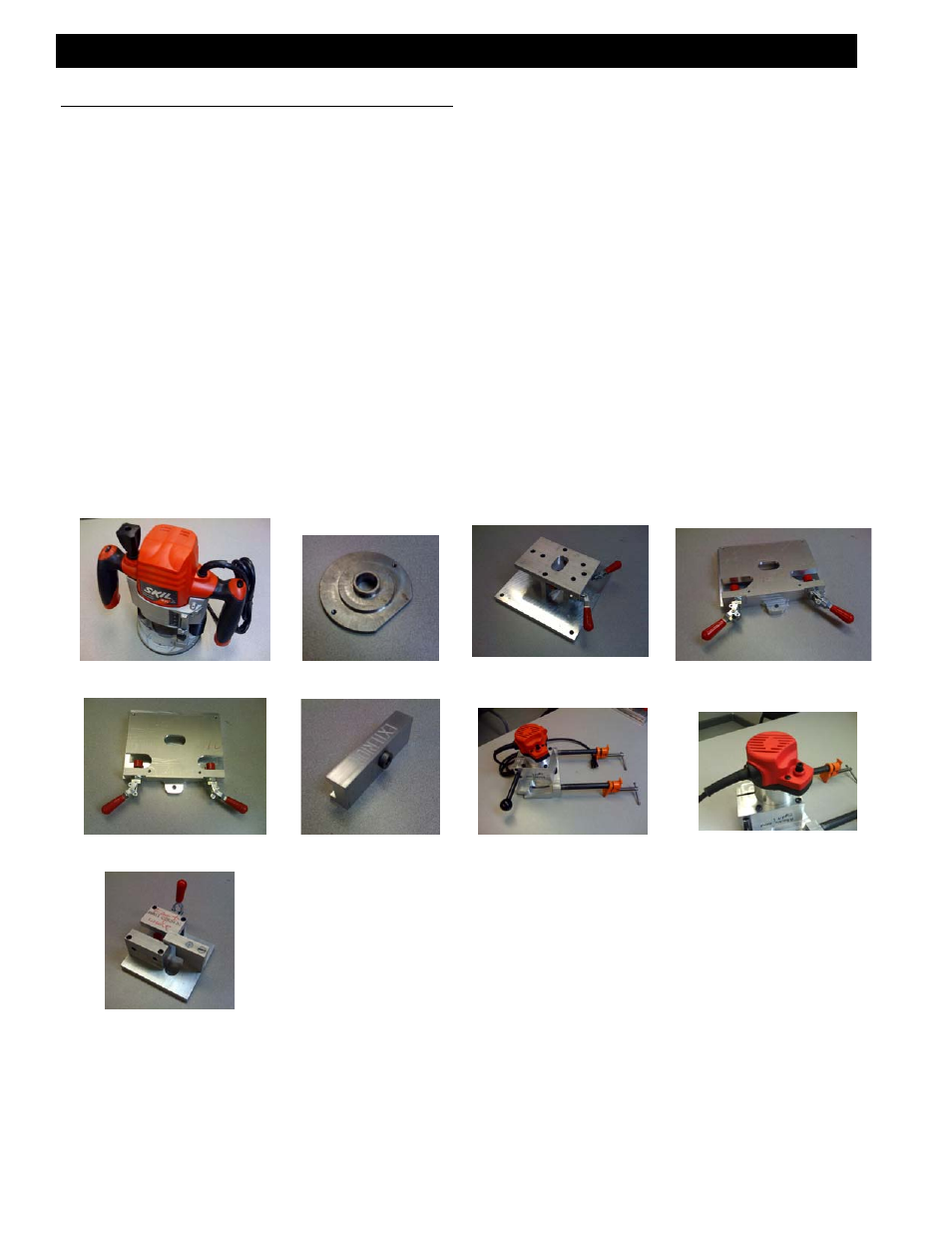

Router Fixture Description and Index
DJ30 - Hand Router (2 1/4 HP)
DJ31 - Custom Base Plate
DJ32 - Sill Cover Weep Fixture (exterior) See page 3.
DJ33 - Sill Cover Weep Fixture (interior) See page 3.
DJ34 - Intermediate Horizontal Weep Fixture (interior) See page 4.
DJ35 - Intermediate Horizontal Weep Drill Fixture (exterior) See page 4.
DJ36 - Horizontal Weep Fixture See page 5.
DJ37 - Horizontal Continuity Notch Fixture See page 6.
DJ38 - 3/16” Router Bit See pages 3 & 4.
DJ39 - 1” Router Bit See page 5.
DJ40 - Horizontal Weep Fixture Router (1 3/4 HP) See page 5.
DJ41 - 1/2” Router Bit See page 6.
DJ31
DJ30 DJ32 DJ33
DJ34 DJ35 DJ36
DJ40
DJ37
