You will need:
(Not to Scale)
Actual Size:
Locking System
2x
Installing the Rod and Locking System
1/4” Lock Nut
2x
D
Rod
2x

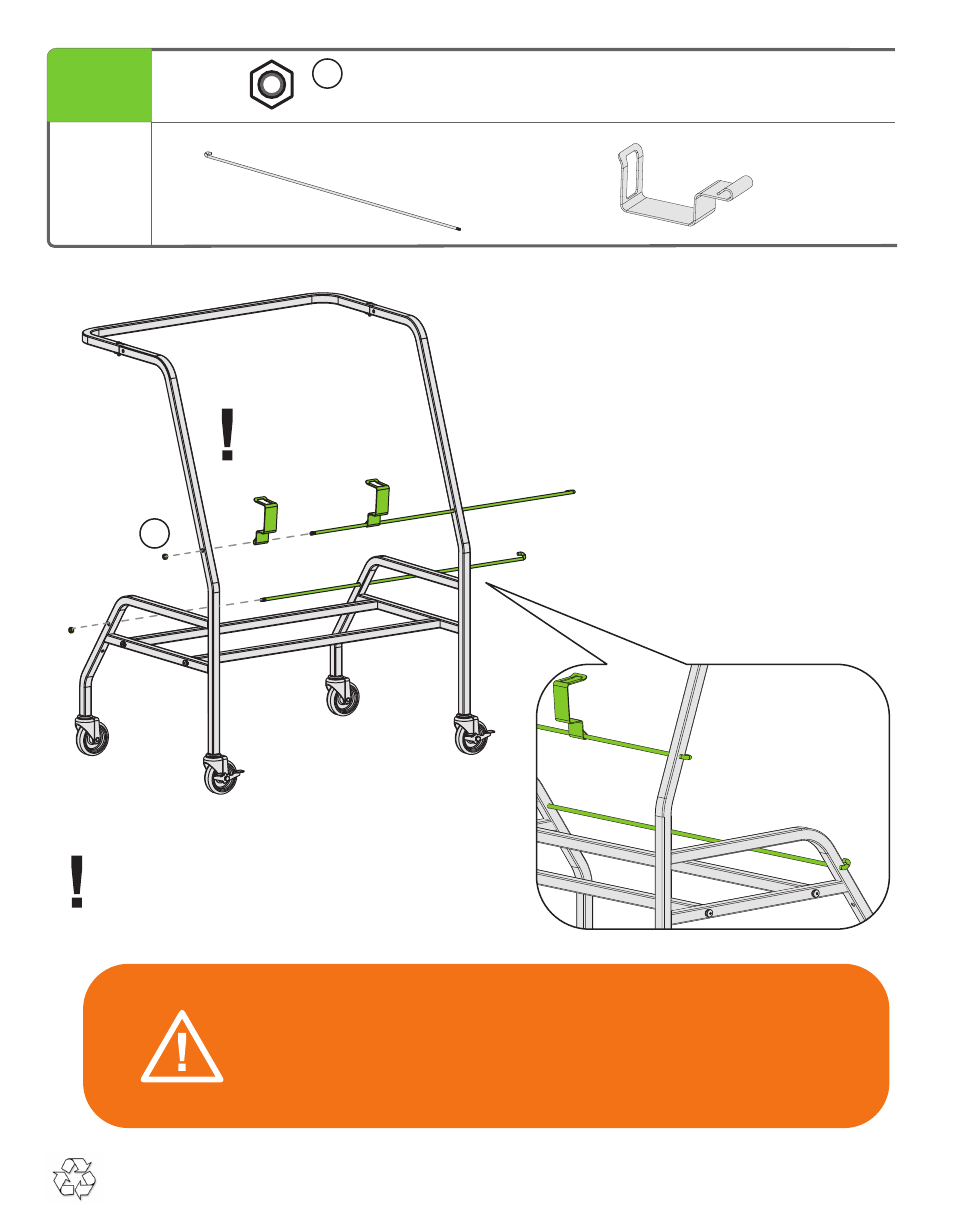

Slide the one end of the Rod through,
then slide the locking system parts onto
the Rod. Note the orientation of both
Locking System & Rods.
D
Note the orientation
of Locking Systems
10
To assemble your Tech Tubs™, follow the assembly instruction
included in the Tub cartons, before moving on to step 6 or 7.
STOP - YOU MUST ASSEMBLE THE TUBS NOW
