Copernicus TEC500C - Manual (Page 7)

TEC500C - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.
Power Strip
1x
1
You will need:
(Not to Scale)
Actual Size:

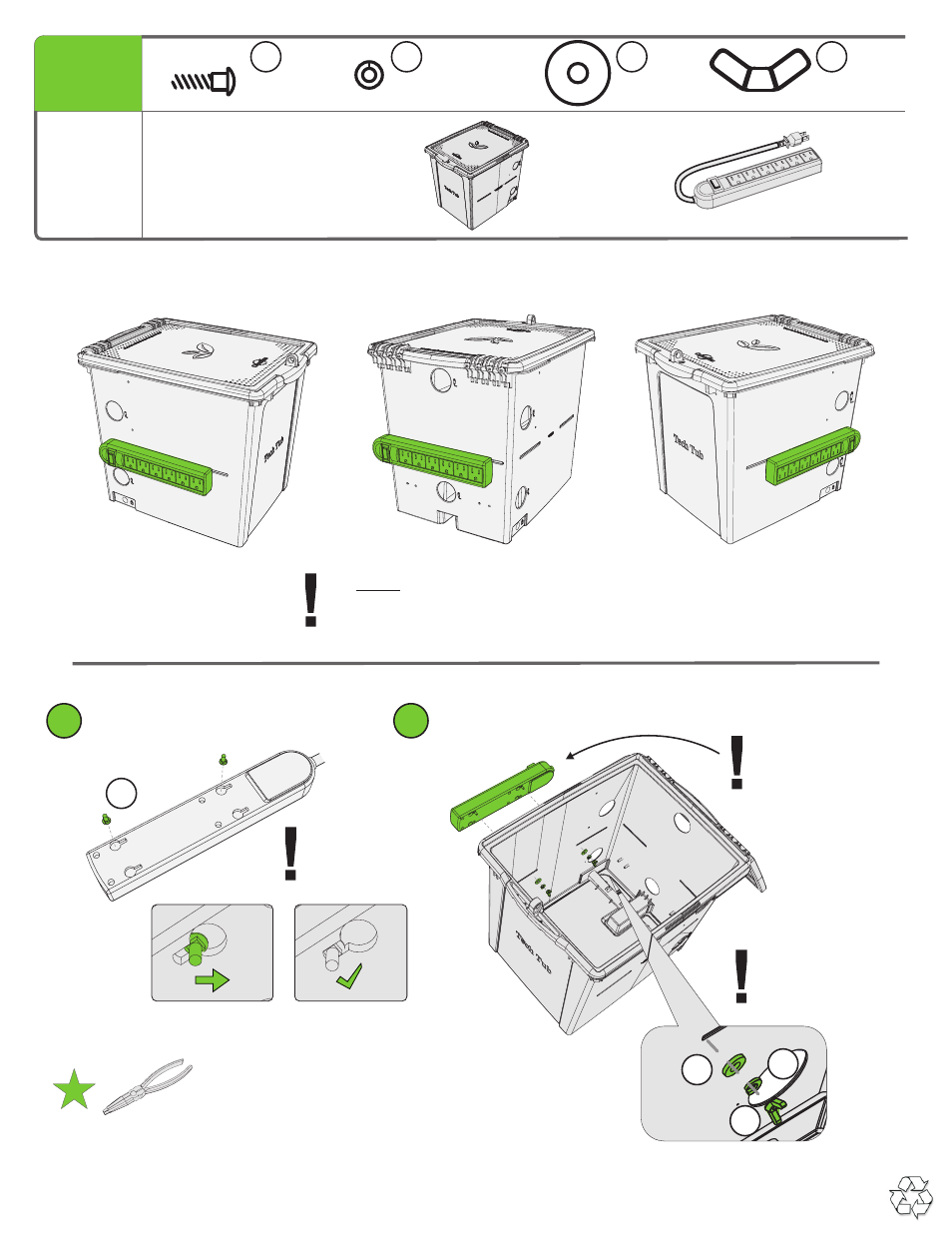

TM Install Hardware on Power Strip and Mount to Tech Tub
Choose the side you would like to mount the power strip on
Right Back Left
TM Tech Tub
1x
You MUST assemble the power strip on
back face if you are using your Tech Tub™
with TEC510C & TEC520C carts.
7
1
Tighten fully
2 Install screws in power strip Install power strip to the Tech Tub™
C
D
Make sure outlet
cable end if pointed
towards the back of
the Tech Tub™
A
It may take some force to fit the
screw head into the keyhole slot.
Use pliers to help slide the screw
head into the keyhole slot. B
Tighten bolts
once in place
A
Actual Size:
M3 x 12mm
2x
B C D
M3 Lock Washer
2x Flat Washer
2x M3 Wing Nut
2x
M3 x 12mm
Carriage Screw
(3.8mm Square Width)
2x
