Copernicus TEC500 - Manual (Page 9)

TEC500 - Version B - Released October 17, 2014 - Copernicus Educational Products Inc.

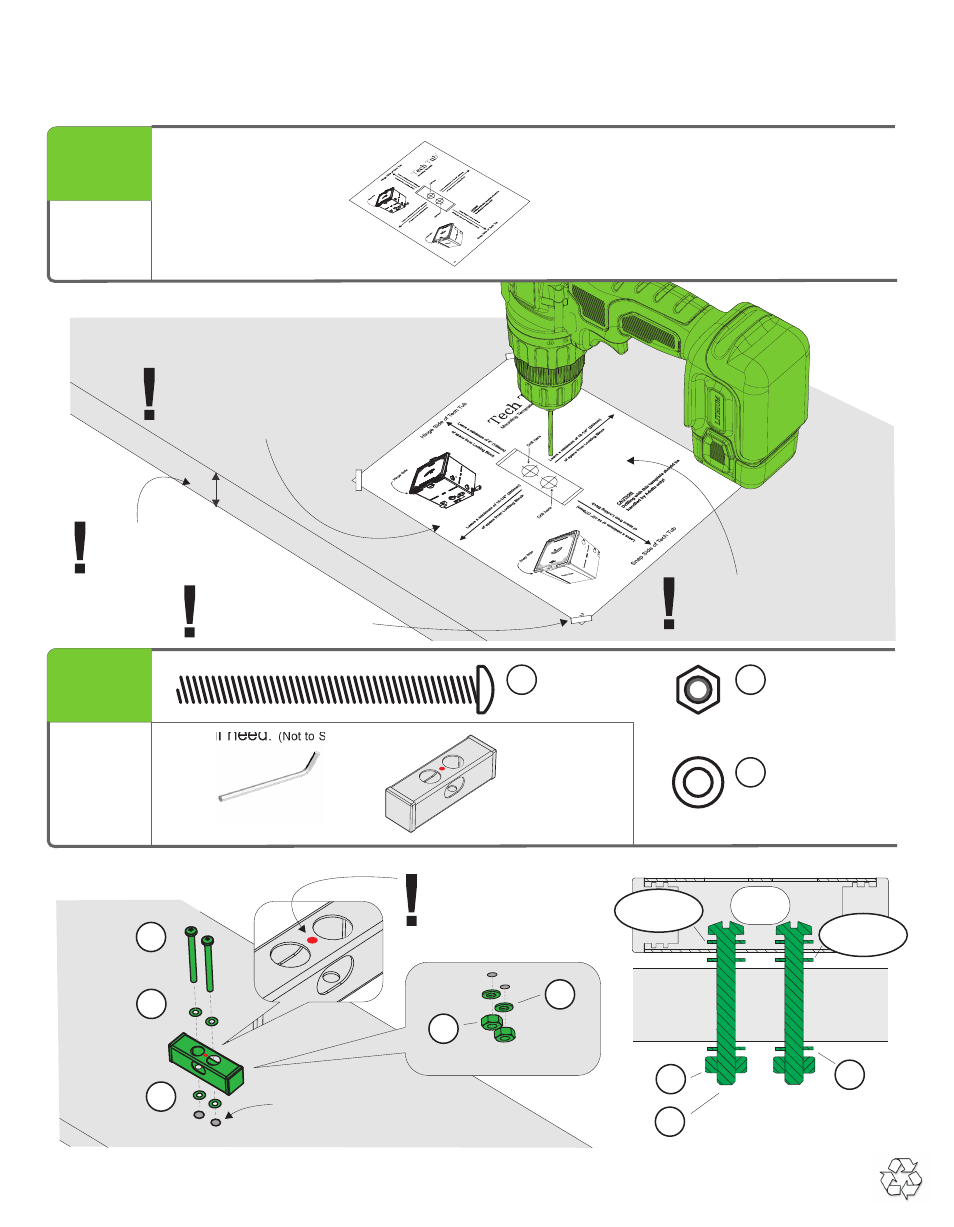

Use Template and Drill Holes into Surface
6
You will need:
(Not to Scale)
7
You will need:
(Not to Scale)
Actual Size:
Locking Block
1x
M6 x 70mm
2x
B
M6 Lock Nut
2x
E
M6 Washer
6x
F
OPTIONAL:
Positioning Template (found at back of this guide)
1x
9
Allen Key 4mm
1x
TM
Follow Steps 6 to 8 to install the Tech Tub Locking
Block and Locking Pin System
Mount Locking Block
Drilled holes from Step 6
B
F
E
Underside
Label facing
upwards
F
Table or Countertop
Section
View
E
B
F Washer goes
INSIDE tube
F Washer goes
UNDER tube
F
F
Use positioning template
found at back of these
Assembly Instructions
Use 1/4” or 6mm drill bit
Maximum thickness of
surface is 2-1/2” (63mm)
Table or Countertop
Use tape to secure
the positioning template
