The bracket fasteners make excellent hard mounting points for radar guns and video
cameras, etc.
Caution: Drilling into the housing of the light bar could damage wiring or other internal
components.

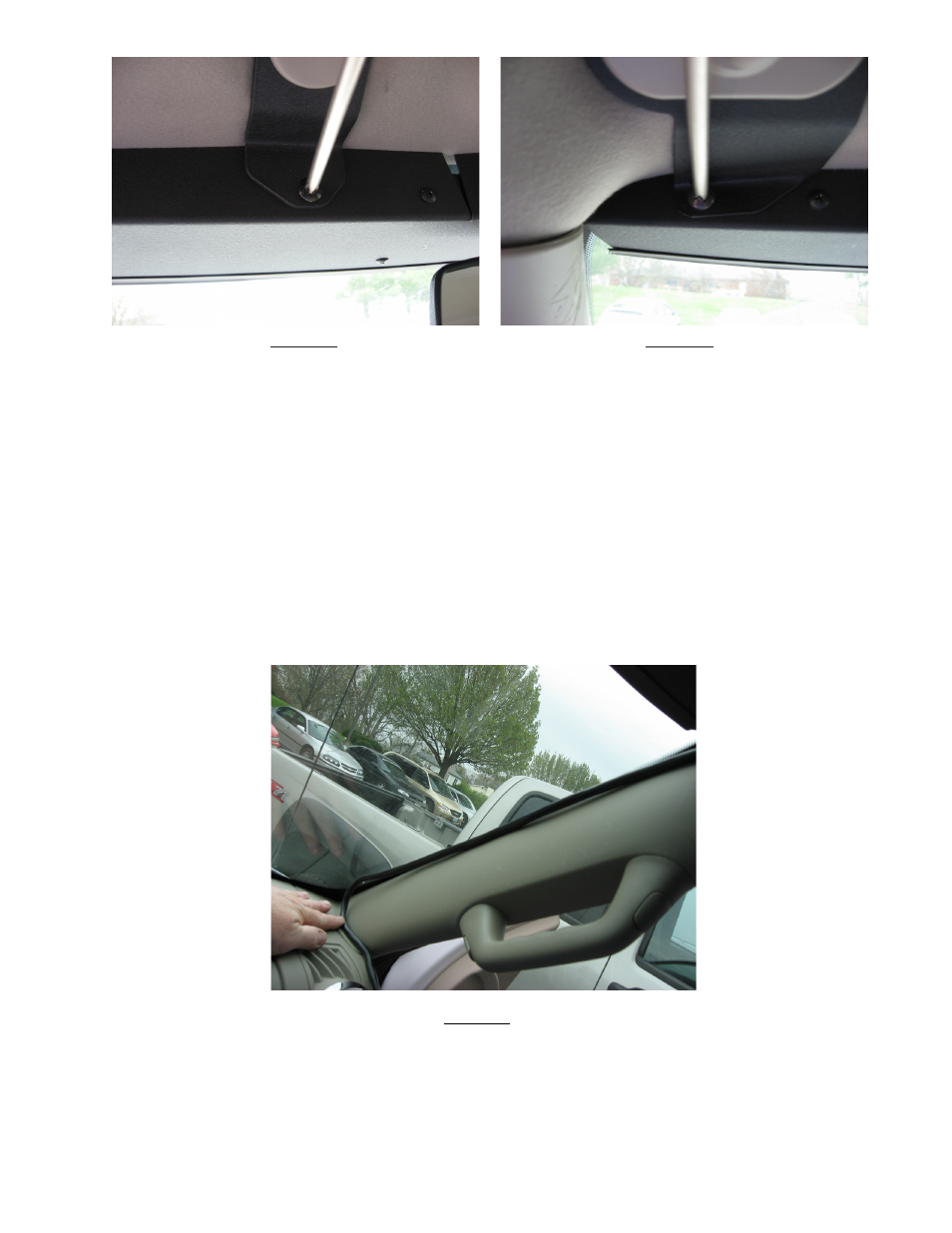

FIgURE 15 FIgURE 16
5
Cable Routing Instructions
Route the wiring cable into the passenger compartment down the door post as shown in Figure 17 (passenger side shown) or as otherwise
desired (As stated before in the "Note" in Step 3 the cable can also be routed up above the headliner across and down behind the
plastic corner door post covers and under the dashboard. Refer to the service manual for the Ford Explorer for detailed instruc-
tions as to how to remove the door post cover for access to route the cable). It is advisable to leave an extra loop of cable when
installing the light bar to allow for future changes or reinstallations.
FIgURE 17
wiring Instructions
Connect the black lead to a solid frame ground (earth), preferably the (-) or ground (earth) side of the battery, and the
power wire to the +12V terminal of the battery. Connect the remaining wires as shown on page 6.
