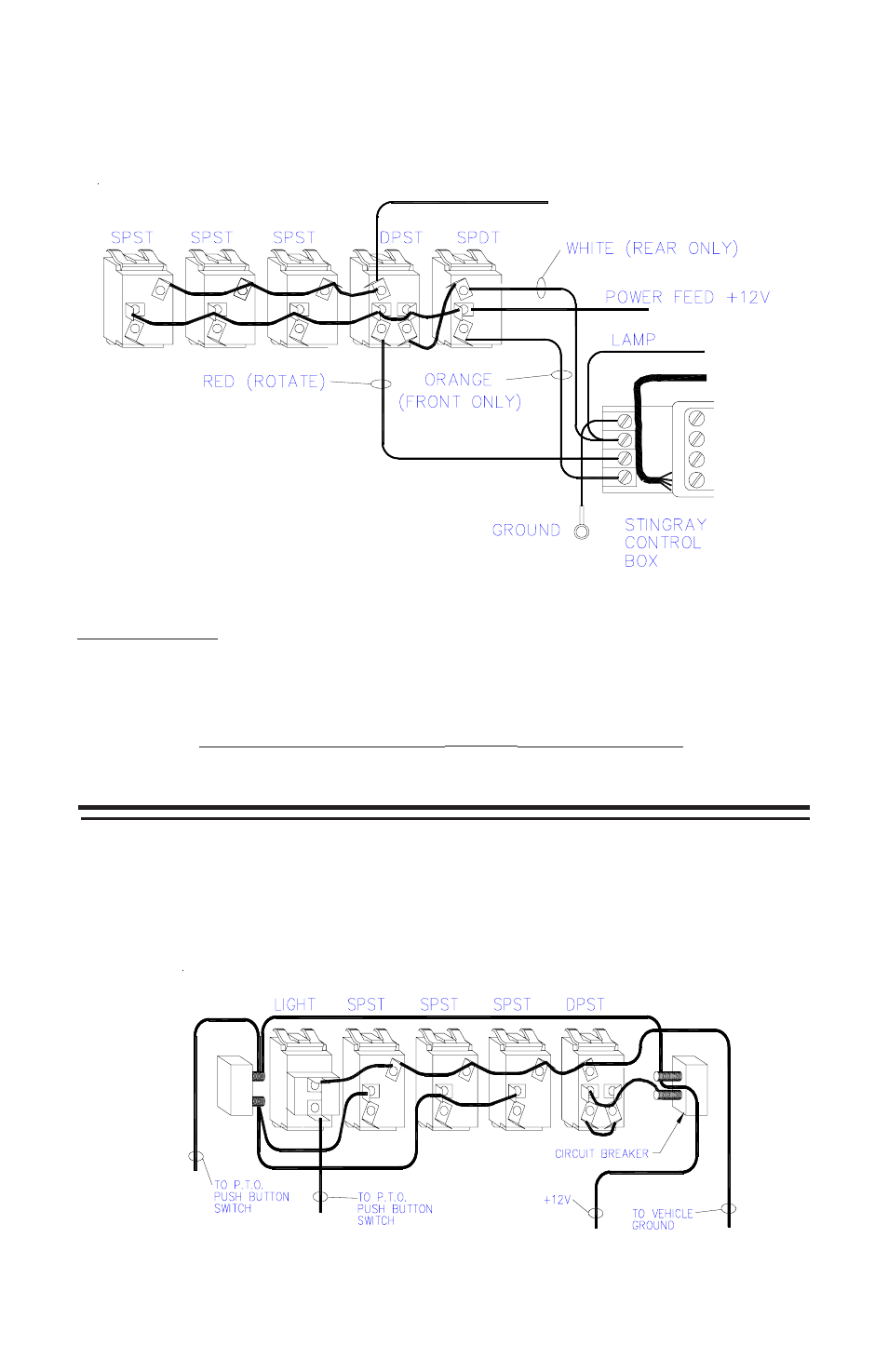

Models 415PS
Use this hook-up for any control having StringRay switching circuits.
IMPORTANT NOTE:
The STINGRAY and ROTATE switches are
wired together to provide the unique operational
features of the StingRay oscillating signal. These
switches may be activated at the same time; however
ROTATE
overrides
STINGRAY
R (Rear only).
STINGRAY
F (Front only) overrides
ROTATE
and does not operate unless
ROTATE
is also activated. The
ROTATE
switch will be lighted whenever the warning lights are lit.
Model 415T and all models with Circuit Breakers
Use this hook-up (as shown on right) for any control furnished with circuit
breakers. See page 6 for PTO bracket installation.
3
GROUND
