Code 3 MR6 - Manual (Page 2)

mounting surface
mounting screw
120523

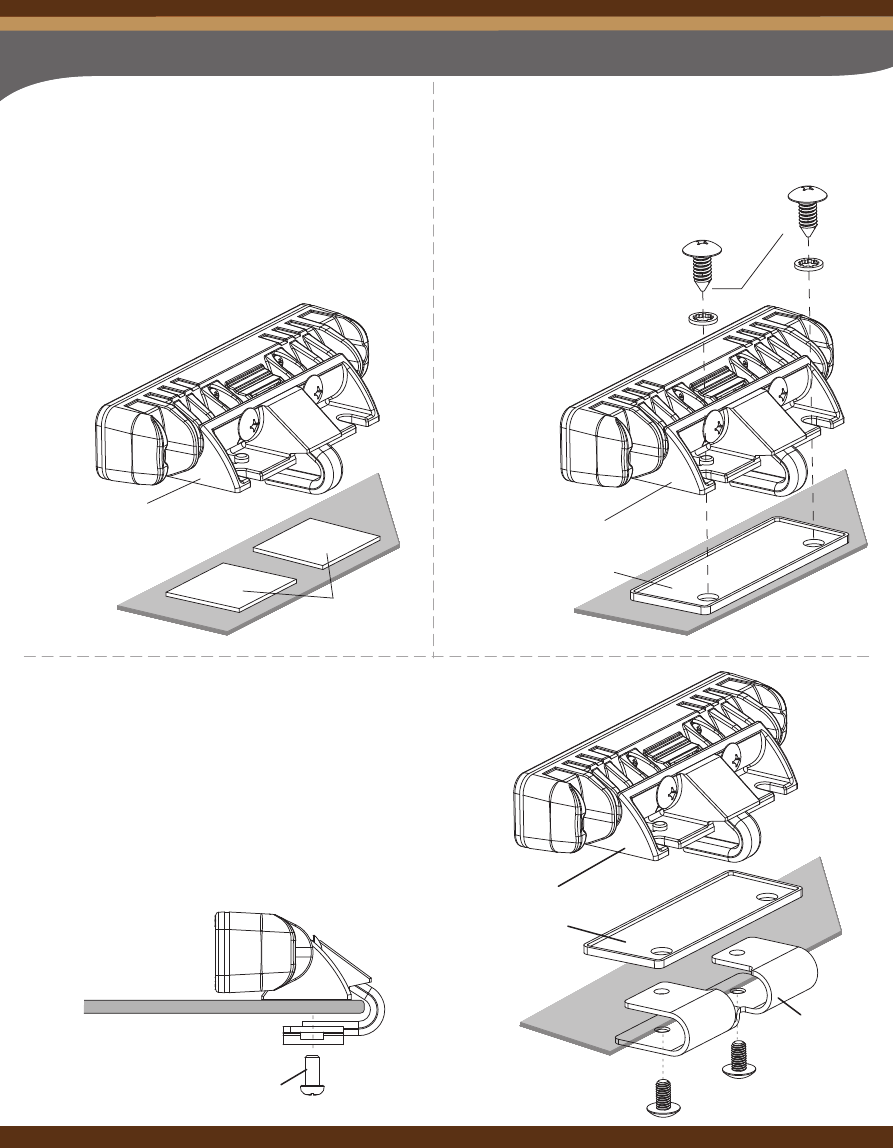

Adhesive Mount
1. Clean mounting surface.
2. Use adhesive pads to secure lighthead.
NOTE: Optimum adhesive strength is
achieved after 24hrs.
Screw Mount
1. Mark and drill mounting holes.
2. Place rubber pad to bottom of
ligthhead base.
3. Secure lighthead to
mounting surface
with supplied screws.
mounting surface
mounting
screws
lighthead base
rubber pad
Bracket Mount
1. Select mounting location.
2. Place rubber pad to bottom of lighthead base.
3. Place lighthead to the mounting surface.
4. Align top holes of bracket onto the lighthead
base alignment points.
5. Secure lighthead with supplied screws from
the bottom of bracket.
mounting surface
lighthead base
rubber pad
mounting
bracket
lighthead base
adhesive
pads
mounting surface
