Code 3 for 2011 Ford PI Utility and Explorer User Manual

Page 2

background image

2

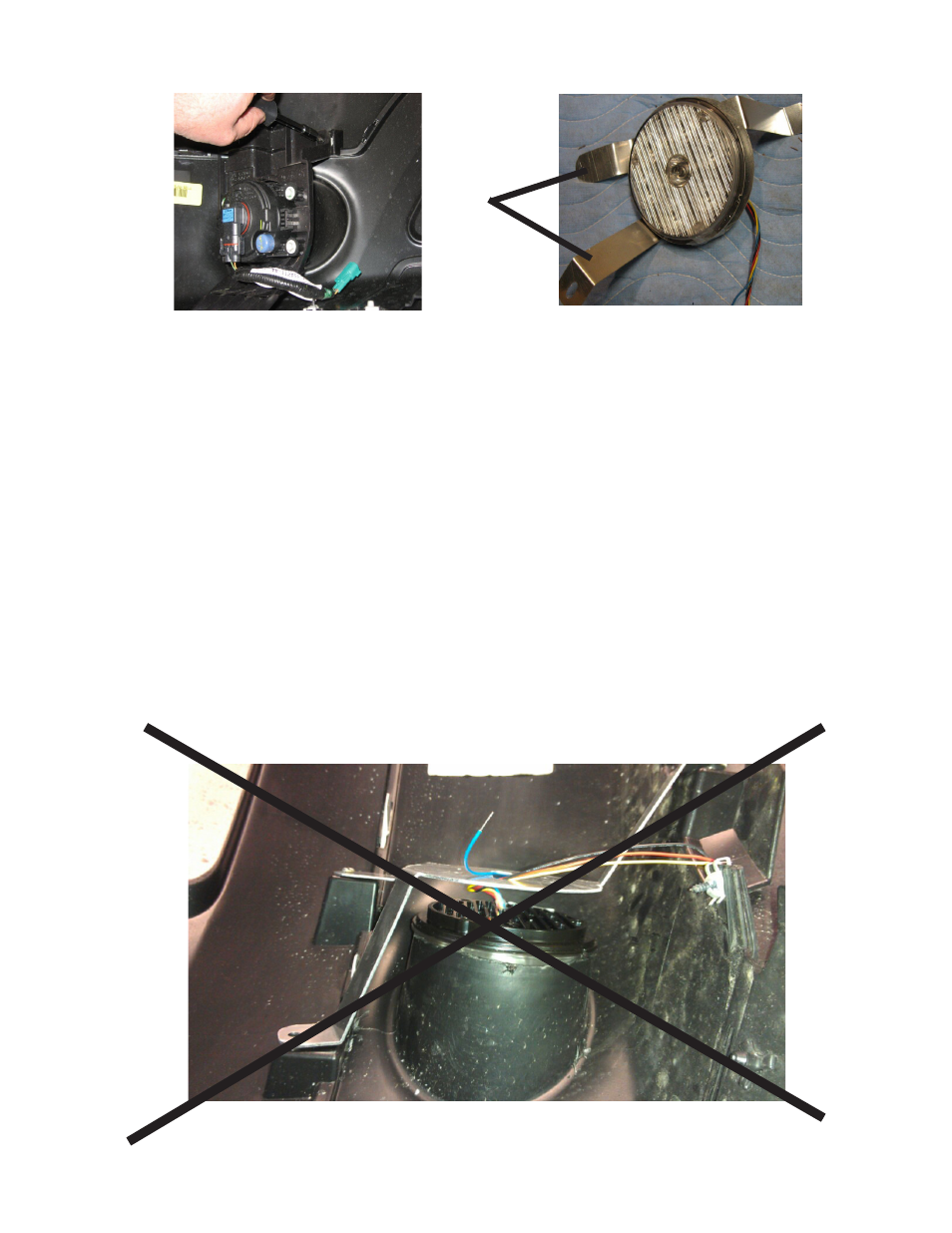

PAR 36 Light Head Installation:

fig 1

fig 2

1. For vehicles supplied with fog lights from the factory,

remove the (3) phillips head screws from each fog lamp

mounting assembly. Retain the screws for installation of

PAR 36 mounting brackets. (It is not necessary to remove

the fog lamp housing from the assembly) (see fig 1.)

Note: For the Ford PI SUV you will have to use a hole

saw to provide a hole for the PAR-36. The size of the hole

saw should just fit inside the "Molded Ring" on the inside

of the vehicles facia. In the final assembly, the face of the

PAR 36 Light Head will just touch the face of the molded

ring on the back side of the facia. WARNING NOTE: DO

NOT CUT THE FACIA AS SHOWN BELOW!!!

2. Install Par 36 LED light head to

new brackets provided as shown.

Light head should be mounted on

side of bracket with two forward

facing legs. (see fig 2.)

(forward facing

legs)
