Code 3 Par 36 for Dodge Charger - Manual (Page 2)

2

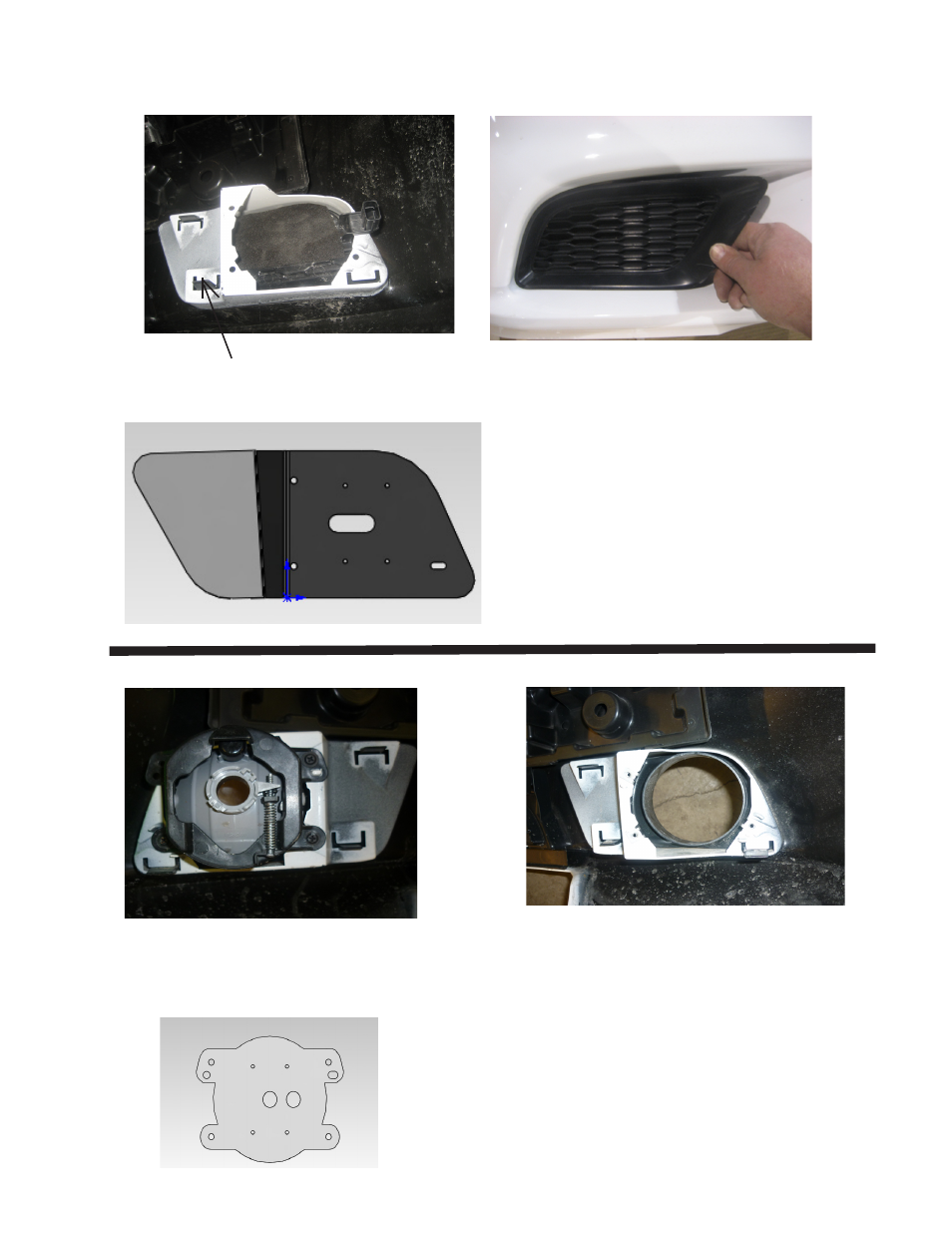

(a) Installation on vehicles supplied without fog lights from the factory:
(b) Installation on vehicles supplied with fog lights from the factory:
fig 1
fig 2
fig 4
fig 3
1. remove cover by pressing lock tab up and
pushing cover forward
2. Once tab is released from behind, pull cover off
of front of vehicle to expose area
3. mount Par 36 light head onto mounting
bracket/close-off plate using (4) screws and
lock washers supplied with light head.
NOTE: light head should be set inside relief
of formed plate. Driver and Passenger side
brackets are supplied.
4. Remove J-Nuts from facia if they are present
from the factory. Install J-Nuts provided in
mounting kit with extrusion facing rearward.
3. mount Par 36 light head onto mounting bracket/
close-off plate using (4) screws and lock washers
supplied with light head.
4. Mounting plate and light head must be mounted
from the back side of the facia. The same mounting
plate is used on both Driver and Passenger sides.
1. Remove fog light assembly from front
facia (3) screws from back of facia.
2. Remove (3) J-Nuts from front facia at each fog
light opening. Discard and replace with larger J-
Nuts provided in mounting kit. (install J-Nuts with
extrusion facing forward).
