Installation Instructions

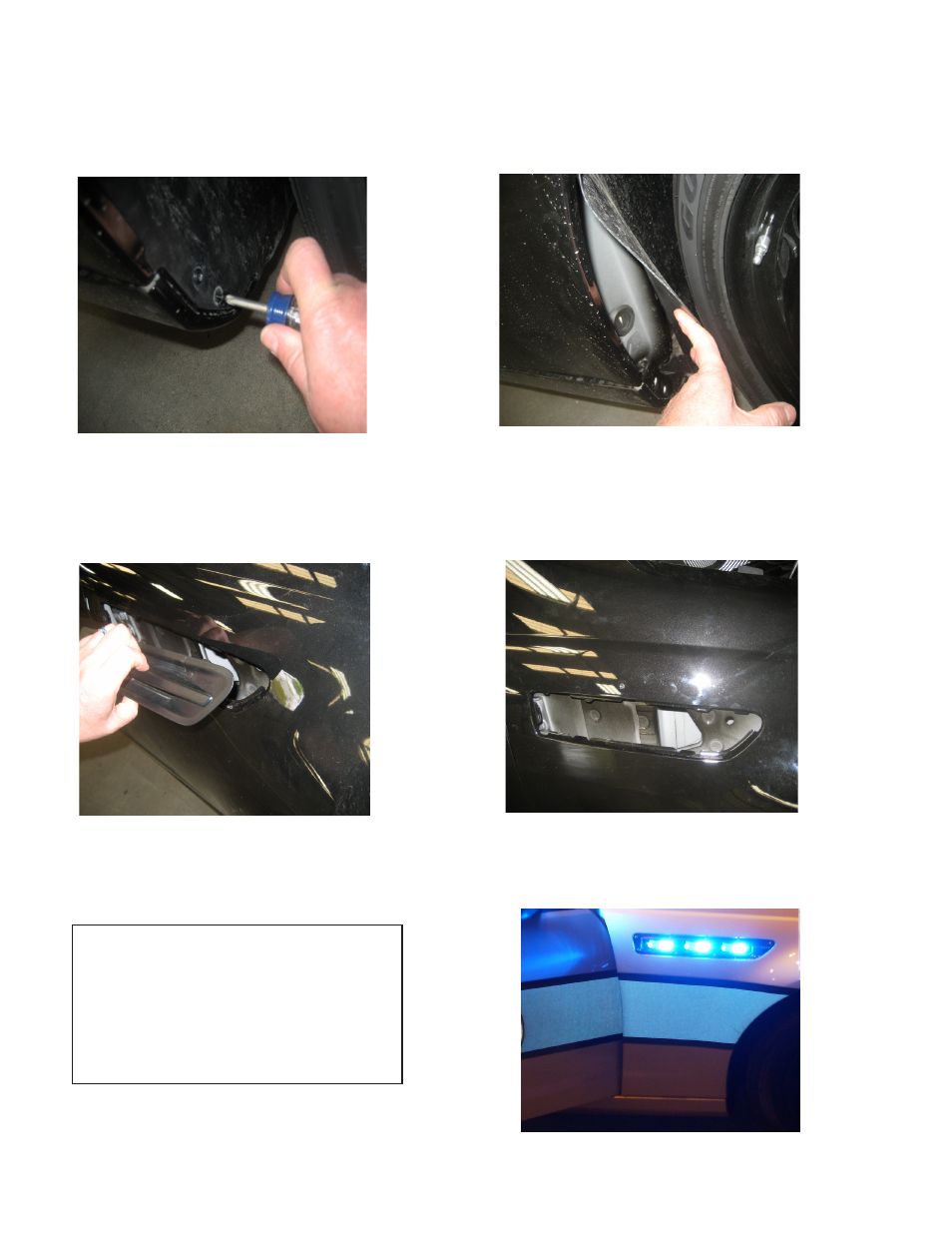

STEP 1, ACCESS FRONT FENDER

FROM WHEEL WELL BASE BY

REMOVING (2) BOTTOM PHILLIPS

HEAD SCREWS FROM WHEEL

WELL COVER

STEP 2. PULL OUT WHEEL WELL

COVER AT BASE TO GAIN ACCESS

FOR PUSHING OUT THE BOTTOM

CLIPS ON THE SIDE MARKER

COVER IN THE FRONT FENDER.

STEP 3. REMOVE THE SIDE

MARKER COVER FROM FENDER

STEP 4. INSTALL OR LOCATE

(4 wire) WIRING HARNESS FOR

LIGHTS

STEP 5. INSTALL (4) PIN WATERPROOF

CONNECTOR SUPPLIED IN KIT ONTO

WIRE HARNESS IN VEHICLE

STEP 6. PLUG IN LIGHT HEAD TO HAR-

NESS AND SNAP LIGHT HEAD ASSEM-

BLY INTO VEHICLE FRONT FENDER.

WIRE IDENTIFICATION TABLE:

Green wire- Syncronization

White wire- Change flash pattern

Red wire- Power

Black wire- Ground
