Code 3 C3100 Series Speaker - Manual (Page 4)

Secure the bracket to the mounting surface with the 4 supplied hex head
screws or the customer supplied fasteners of comparable strength and
size.
Note: Some kits are supplied with self-tapping screws. When
installing this type of screw you may need a socket and
electric drill to drive the screws.
Attach the siren to the bracket using the supplied screws and washers as
shown in Fig. 1. Note the center screw is a button head cap screw and
lock washer.
Extend the BLUE (Positive) and WHITE (Negative) speaker wires to your
siren amplifier and connect as shown in the amplifiers instructions.
Test the siren for proper operation.
Mounting The Speaker
Installation / 2002-2003 Ford Explorer:
The speaker will be mounted in front of the driver side front tire,
behind the bumper. You will use two existing nuts and their bolts
that are already on the vehicle. Always be sure that the siren’s
wires exit the bottom of the siren after mounting for proper
drainage of the siren.
Attach the mounting bracket to the speaker as shown in figure 3.
Looking in through the driver’s side wheel well, find the 2 existing bolts on
the vehicle that match up to the mounting holes on the bracket (Fig 4).

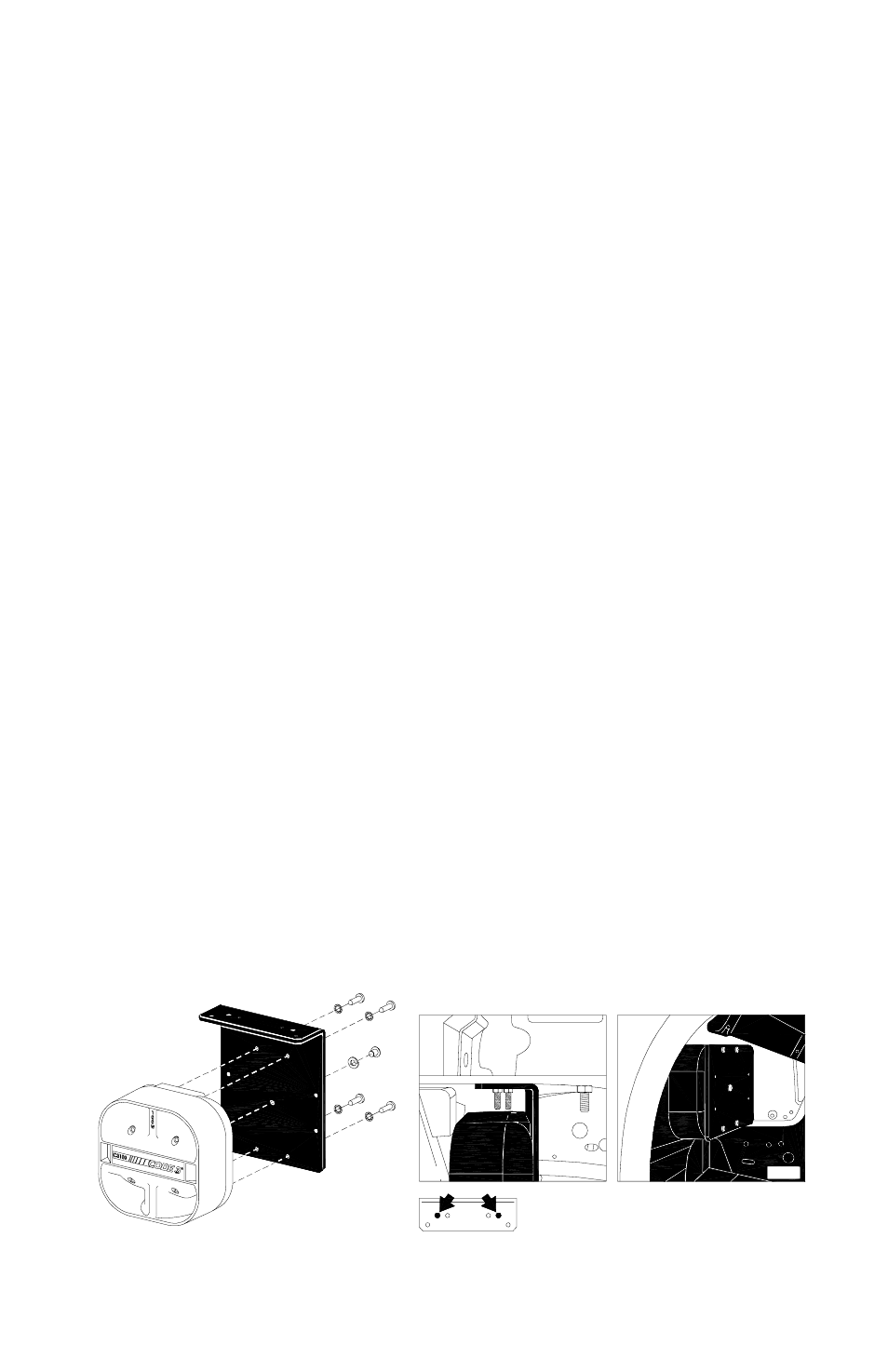

Fig 3,Attaching Mounting
Bracket
Fig 6, Use these holes for the 02-03
Ford Explorer
Fig 4 Fig 5
