INSTALLATION &
OPERATION
MANUAL
Read all instructions and warnings before installing and using.
This manual must be delivered to the end user of this equipment.
IMPORTANT:
INSTALLER:
2011-13 FORD EXPLORER
&
UTILITY INTERCEPTOR
SPEAKER INSTALLATION
2011 FORD EXPLORER &
2012-13 Uitility Interceptor
Speaker Bracket
Table of Contents:
Page No: Description:
1. Preparation for installation
2. Bolt-On Easy Installation of speaker to vehicle bumper system
3. Reinstalling the vehicle facia, Wiring connections and
Installation notes
4. Warranty Information
Preparation for Installation:
1. Access to the rear and front of the bumper extrusion is required in order to complete
hardware installation and make wiring connections.
Remove top engine shroud cover (2 push in fasteners & 6 hex head screws) •
Remove phillips head screws from both front wheel well forward areas •
Remove hex head screws from lower facia behind air dam area of vehicle •
Remove (2) phillips head screws from DS & PS facia under front wheel well trim •
Remove facia & grill from vehicle & unplug fog light connectors DS & PS •
Position : Below bumper installation shown,

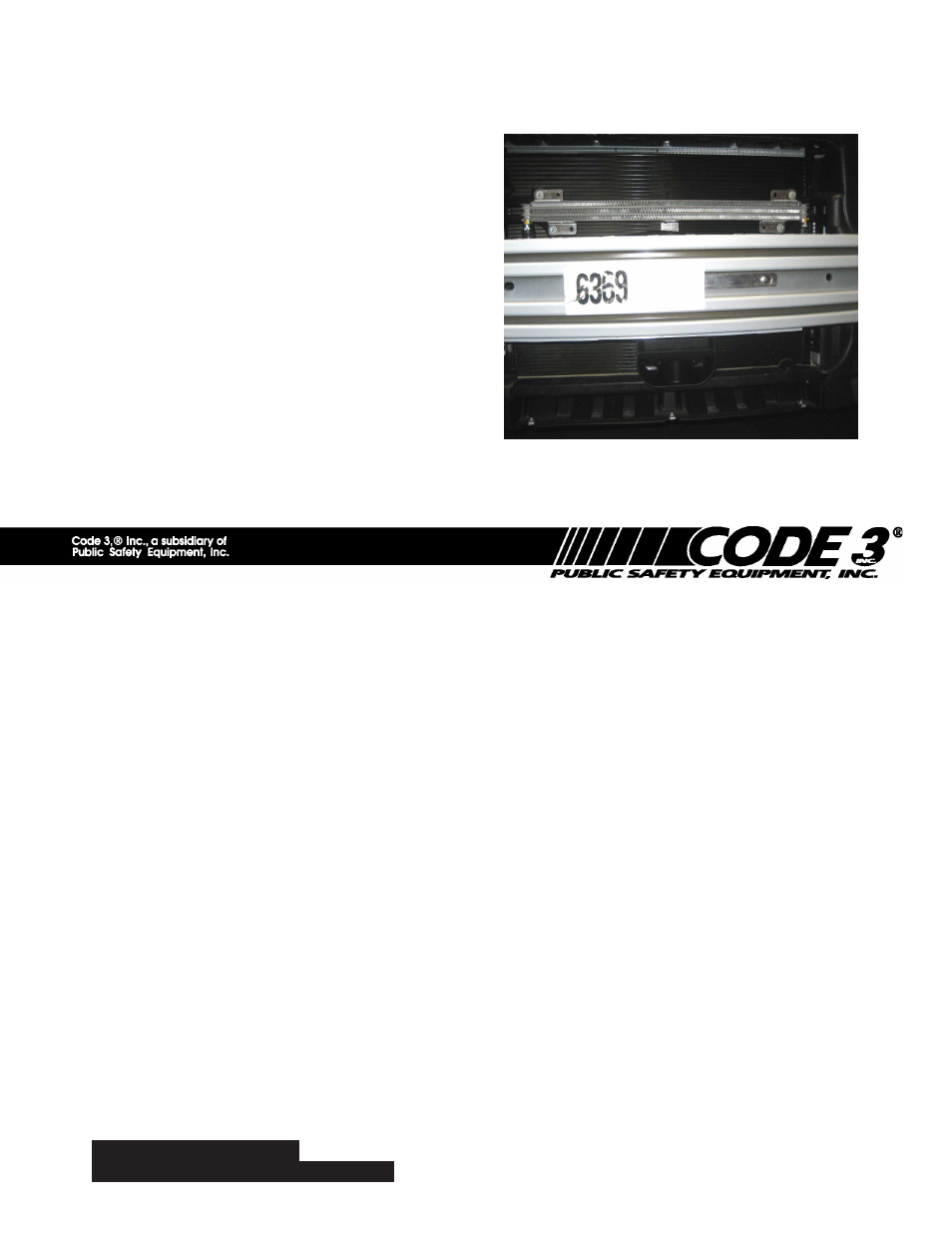

Installation does not interfer with auxiliary cooler on Utility Interceptor version of Explorer.
UTILITY INTERCEPTOR SHOWN:
