Code 3 2011-2013 Explorer and Ford PI Utility - Manual (Page 2)

2

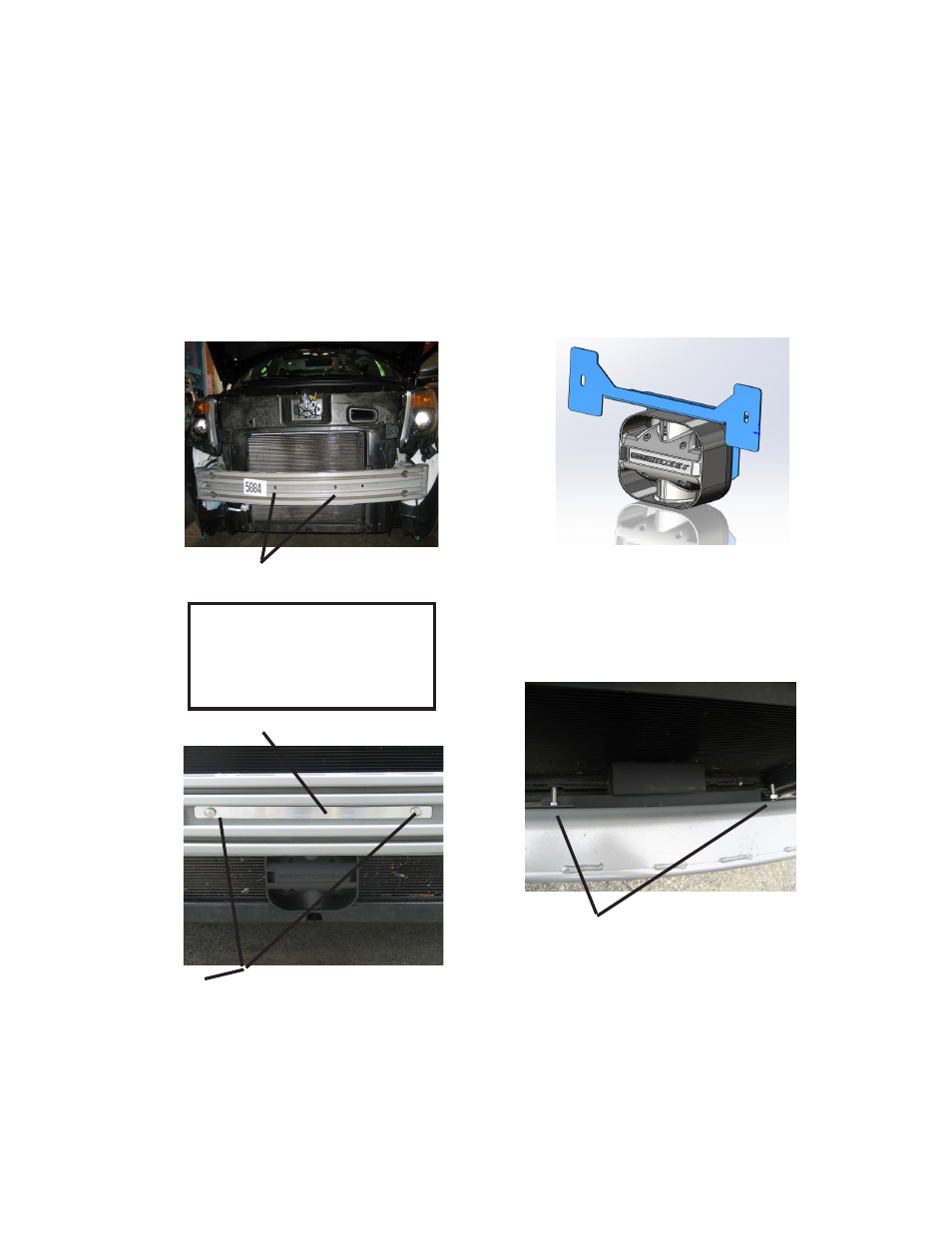

Bolt - On Installation of Speaker Bracket to bumper system on vehicle:
(No Drilling Necessary)
fig 1 fig 2
fig 4
fig 3
NOTE:
While vehicle facia is removed, installation of grill light brackets, Par
36 LED lighthead brackets and wiring harnesses may be easily accomplished.
1. removal of the front facia
exposes the bumper area for
speaker installation. Locate (2)
center holes in the mid section
2. install speaker onto bracket using the
hardware provided. Speaker should sit in-
side bracket recess as shown in fig. 2.
3. install 4.5" stainless steel car-
riage bolts through retaining strap
bracket, (Included in kit), and
place through holes in center of
bumper.
4. place speaker bracket over bolt
ends with speaker facing forward
5. install flat washer, lock washer and nut on
the back side of the speaker bracket.
6. slide bracket up in mounting slots and
tighten nuts using wrench.
NOTE:
Speaker should sit above lower lip of radiator hous-
ing and away from the front of the radiator fins.
No contact with the radiator should be alowed.
(TOP VIEW)
(FRONT VIEW) carriage bolts
retaining strap bracket
Below
bumper
install
shown.
DOMESTIC EXPLORER SHOWN:
