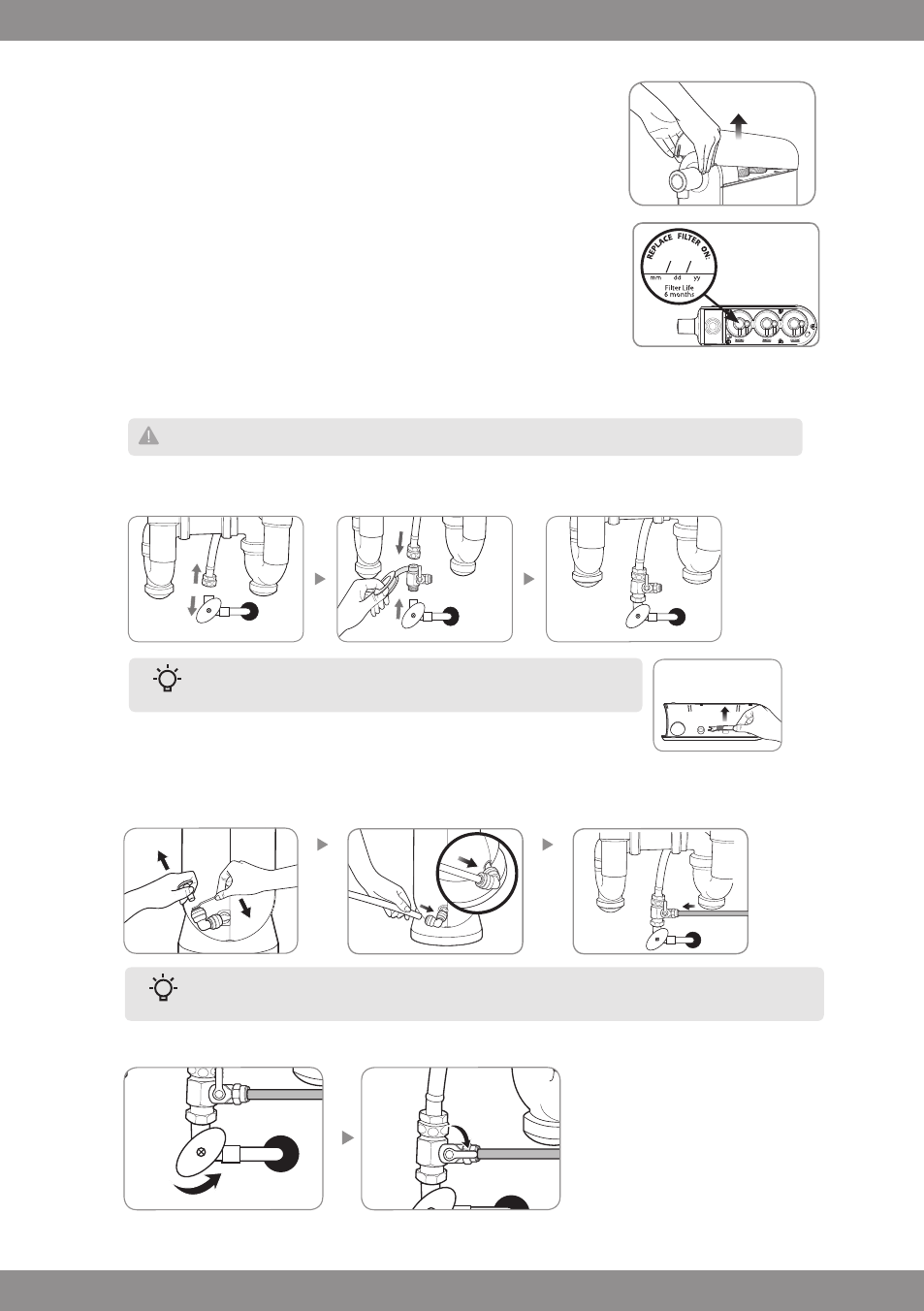

Alternative Installation T-valve Type (for under-the-counter water
supply direct connection)
Prior to installation.
a) Remove top cover with both hands.
b) Write filter replacement date on filter change sticker found on top of
each filter. Note: Carbon Block (HF-33) and Composite Plus (HF-31)
filters are 6 month filter life & Nanotrap (HF-32) filter is 1 year filter life.
1. Installing the T-valve type water supply fitting.
a) First, turn off hot and cold water supply under the sink at the wall. Then, open (turn on) the faucets
to drain water from the sink’s water line.
b) Disconnect cold water supply line from supply valve under sink at wall.
c) Connect the bottom of the T-valve to the cold water supply at the wall and connect faucet water supply hose to top
of T-valve as shown below. Use teflon tape (plumbers tape) on the threads if needed for a watertight seal.
2. Installing the tubing.
a) Remove the gray water inlet plug (see Page 4 for more details).
b) Connect one end of the 1/4˝ tubing (white) to the water inlet on the water filter unit.
c) Run the other end of the white hose under the sink and connect it to the open end of the installed T-valve.
3. First, turn on cold water supply line under sink at wall. Then, open the T-valve switch to supply main water.
The water supply T-Valve must be connected to the cold water supply only. Never connect to hot water supply!
OPEN
OPEN
* Sold separately on www.brondell.com or call Brondell at 1-888-542-3355.
Use Connection Tool for all “quick-connect” water tube connections. To use:
simply push down with the tool on the connection point as you pull out tubing
Tips
Note: be sure to push tubing firmly all the way into the quick-connectors & use Connection
Tool as needed
Tips
