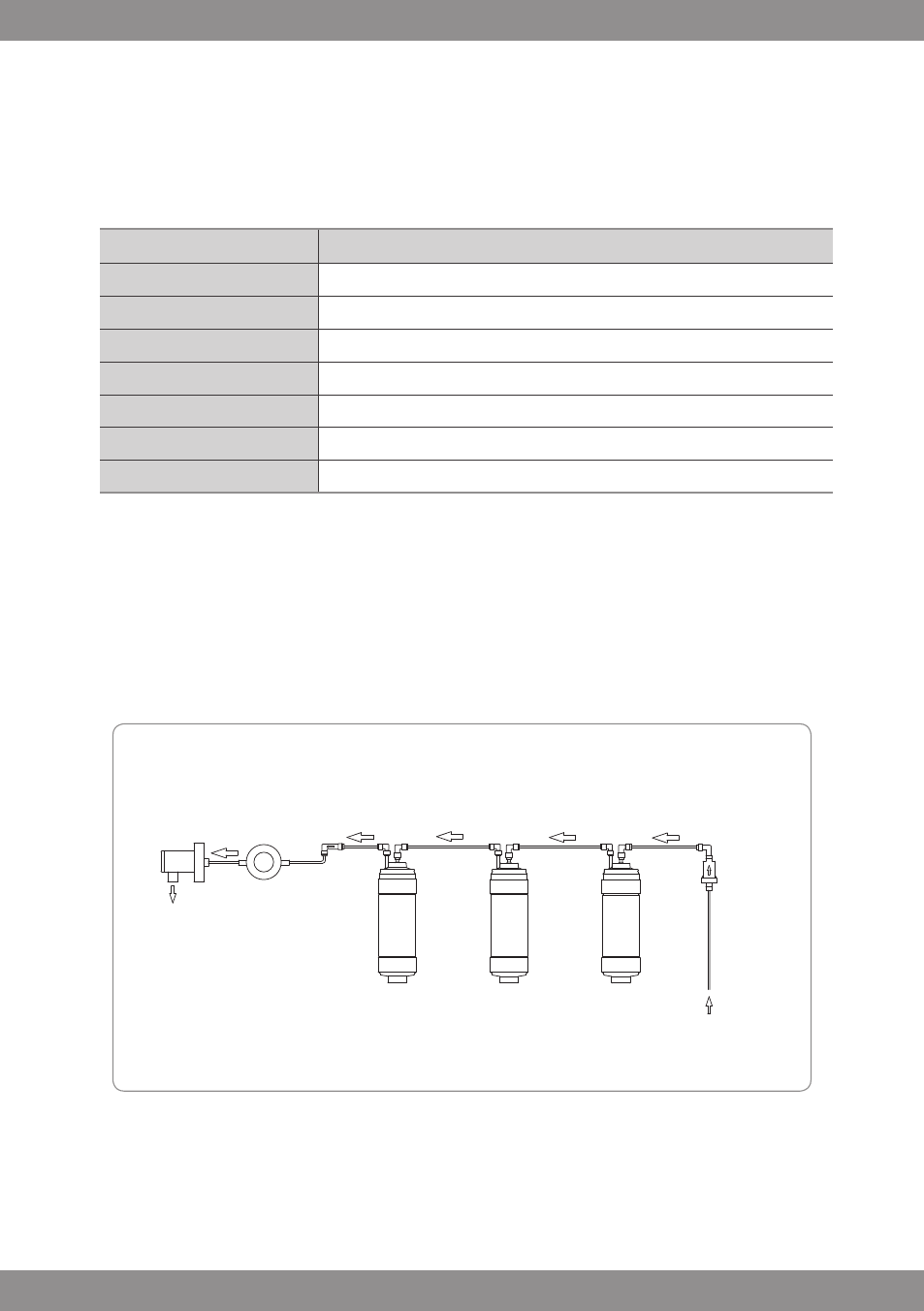

WATER FLOW DIAGRAM

Treated Water

INNO

SENSE

FILTER

NANO

TRAP

(R)

FILTER

NEO

SENSE

FILTER

Feed Water

Push Button

Constant flow

Fitting

Regulator

Brondell Cypress H630 Water Filtration System

A = Carbon Block (HF-33)

B = Nanotrap (HF-32)

C = Composite Plus (HF-31)

SPECIFICATIONS

Product name

H2O+ Cypress Water Filtration Device

Model / SKU

H630

Filter

Composite Plus (HF-31) / Nanotrap (HF-32) / Carbon Block (HF-33)

Working temperature

40 °F ~ 100 °F (4.4 °C ~ 37.8 °C )

Working pressure

20 ~ 120 PSI (0.14 MPa ~ 0.83 MPa)

Filter flow rate

0.5 GPM (1.9 LPM)

Dimensions

4.1 in (W) X 13.8 in (D) X 10.8 in (H)

(105 (W) X 350 (D) X 275 (H) (mm))

Net weight

6.6 lbs (3 kg)
