Note:

Be sure to unfold this page and refer to the front diagrams as you read each chapter.

Remarque:

Veuillez déployer cette page et vous référer aux schémas quand vous lisez chaque chapitre.

Nota:

Cuando lea los capítulos, despliegue esta página y consulte los diagramas.

3

DB335/DB235

4

DB335/DB235

English

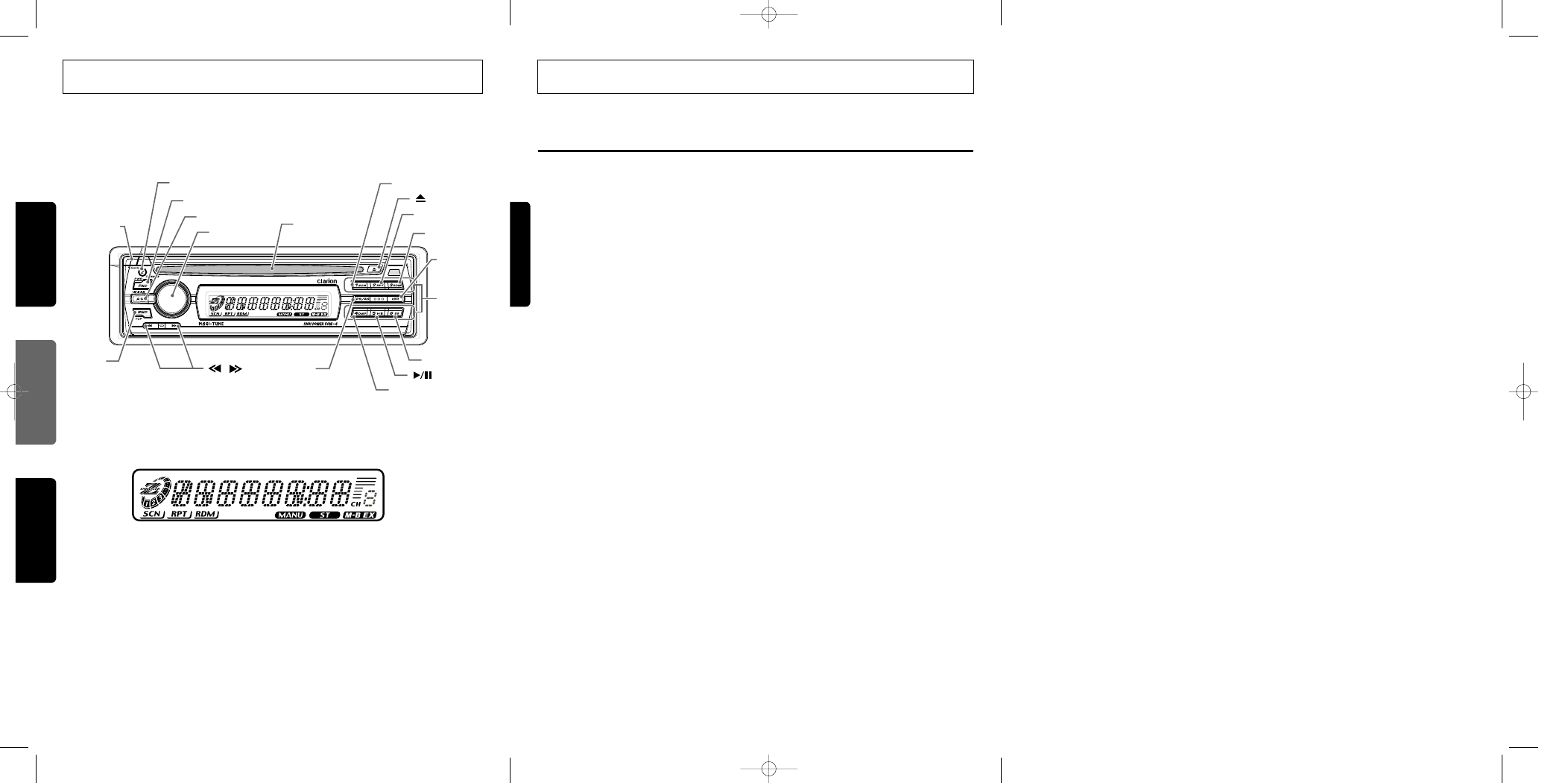

2. CONTROLS /

COMMANDES

/ CONTROLES

[FNC]

[BND]

[ROTARY]

[ ] [ ]

[SS]

[A-M]

[DIRECT]

[SCN]

[RPT]

[RDM]

[RELEASE]

[Z-EHCR]

[ ]

[ ]

[DISP]

[ISR]

[PS/AS]

[CD SLOT]

SOURCE UNIT /

APPAREIL PILOTE

/ UNIDAD FUENTE

DISPLAY

AFFICHEUR

VISUALIZADOR

English

Français

Español

DB335/DB235

45

Note:

Be sure to read this chapter referring to the front diagrams of chapter 2. CONTROLS on page 3 (unfold).

3. BUTTON TERMINOLOGY

Note:

The above illustration shows the front panel of the model DB335/DB235.

Remarque:

L’illustration ci-dessous montre le panneau avant du modèle
DB335/DB235.

Nota:

La ilustración de arriba muestra el panel frontal del modelo
DB335/DB235.

[RELEASE] button

• Press the [RELEASE] button to unlock the

DCP.

[Z-EHCR] button

• Use the button to select one of the three types

of sound characteristics already stored in
memory. (Z-Enhancer)

[FNC] button

• Press the button to turn on the power.

Press and hold the button for 1second or
longer to turn off the power.

• Switches the operation mode among the radio

mode, etc.

[A-M] button

• Press and hold the button for 1 second or

longer to switch the MAGNA BASS EX on/off.

• Use the button to switch to the audio mode

(bass/treble, balance/fader)

[ROTARY] knob

• Adjust the volume by turning the knob clock-

wise or counterclockwise.

• Use the knob to perform various settings.

[CD SLOT]

• CD insertion slot.

[SCN] button

• Performs scan play for 10 seconds for each

track while in the CD mode.

[

Q

] button

• Ejects a CD when it is loaded into the unit.

[RPT] button

• Plays repeatedly while in the CD mode.

[RDM] button

• Performs random play while in the CD mode.

[ISR] button

• Recalls ISR radio station in memory.

• Press and hold for 2 seconds or longer: Stores cur-

rent station into ISR memory (radio mode only).

[DIRECT] button

• Stores a station into memory or recall it direct-

ly while in the radio mode.

[SS] button

• Press the [SS] button while keeping the [BND]

button pressed, to turn the screen saver func-
tion on or off.

[

s

] button

• Plays or pauses a CD while in the CD mode.

[DISP] button

• Press the [DISP] button while keeping the

[BND] button pressed, to switch the display
indication (Main display, clock display).

[PS/AS] button

• Performs preset scan while in the radio mode.

When the button is pressed and held, auto
store is performed.

[

a

][

d

] button

• Selects a station while in the radio mode or

selects a track when listening to a CD.

• Press and hold the button for 1 second or

longer to switches the fast-forward/fast-back-
ward.

[BND] button

• Switches the band, or seek tuning or manual

tuning while in the radio mode.

• Plays a first track while in the CD mode.

Names of the Buttons and their Functions
