4. I/O Interface

I/O Connection

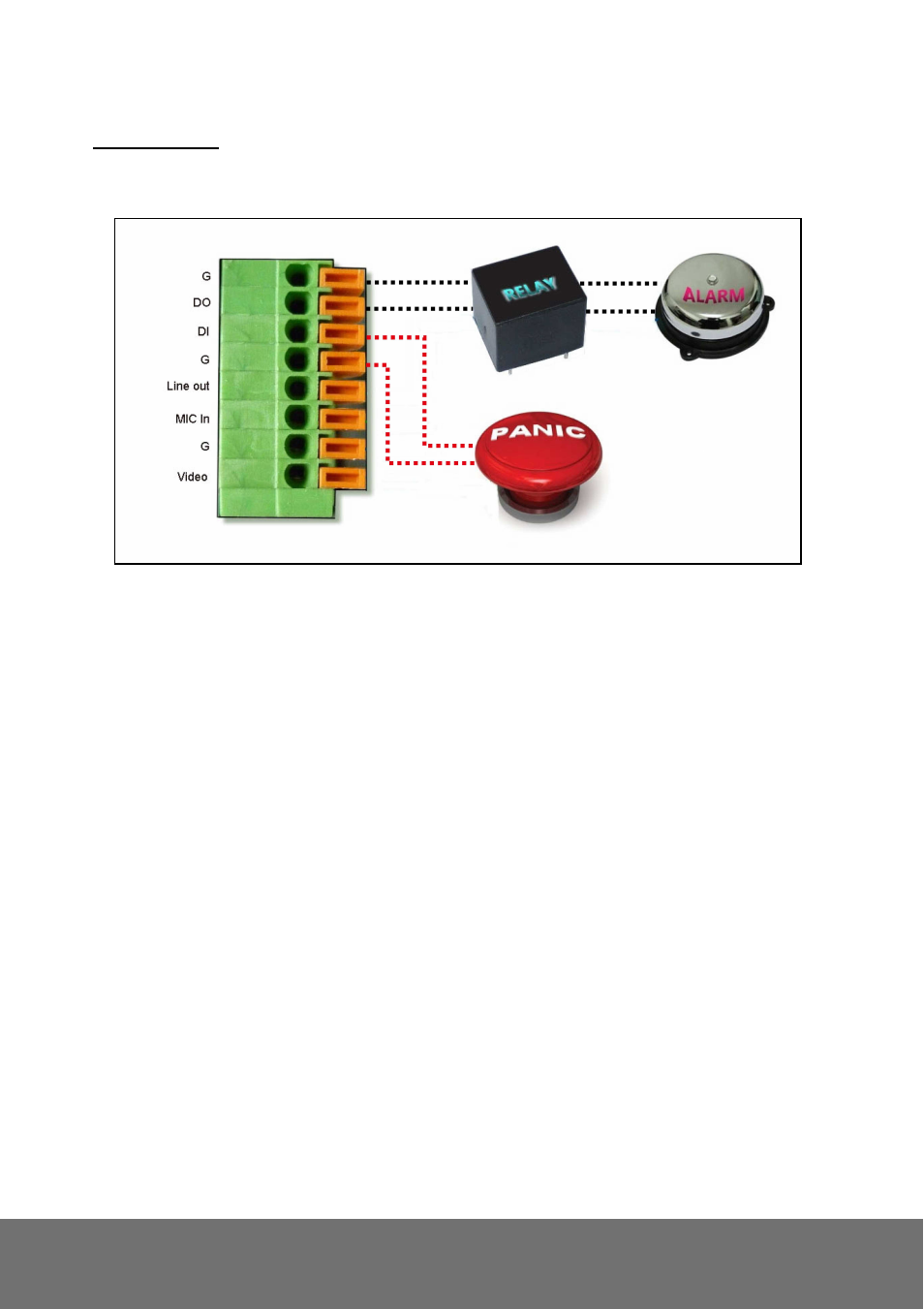

a. Please connect the GND & DO pin to the external relay (buzzer) device.

b. Please connect the GND & DI pin to the external trigger device

c. I/O PIN definition

GND (Ground): Initial state is LOW

DO (Digital Output): DC 5V

DI (Digital Input): Max. 50mA, DC 5V
