AVer SF2111H-DVR user manual User Manual
Page 10
6
Hardware Installation and I/O Pin Assignment

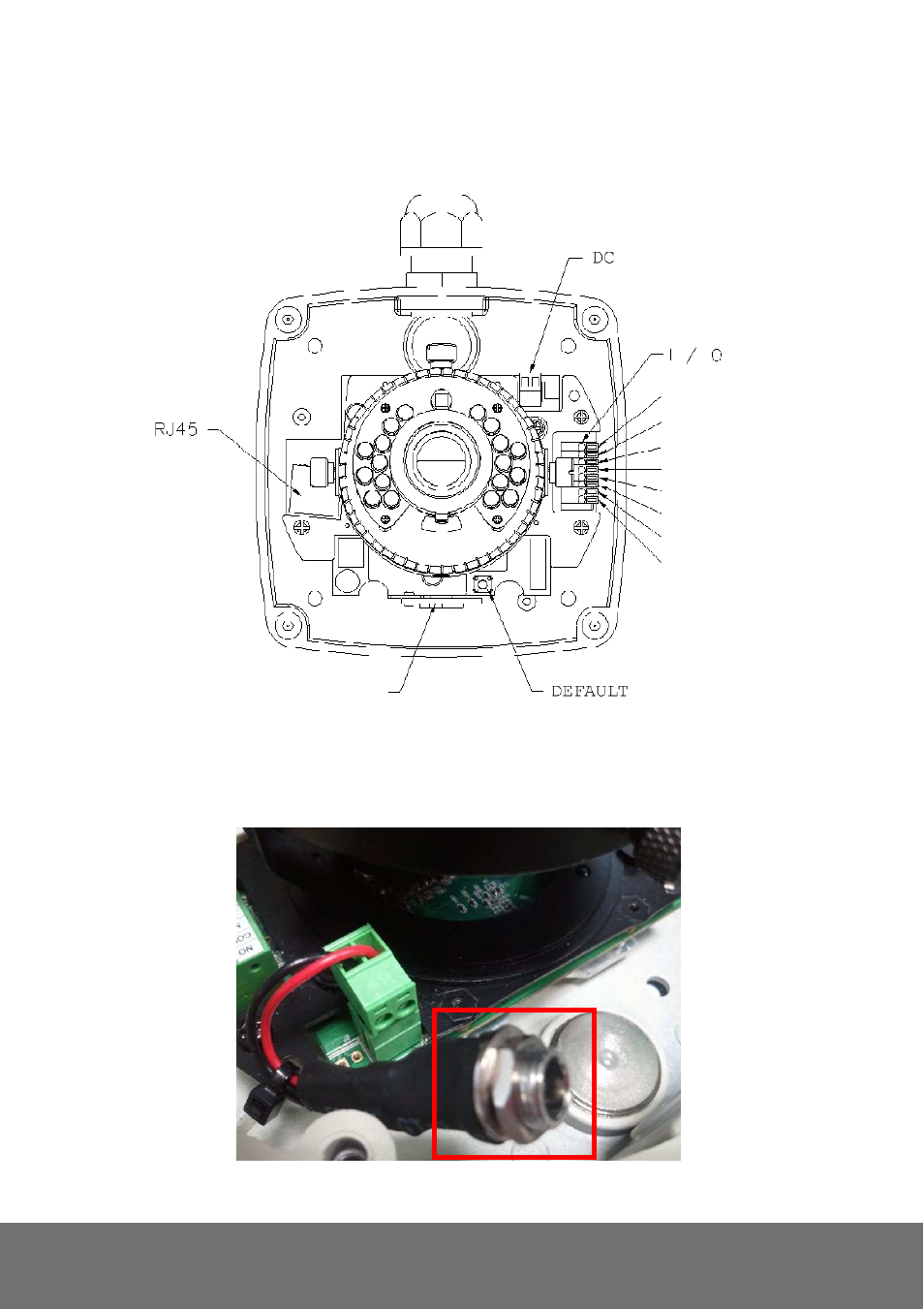

1. Remove the dome cover, and you will see the structure as below.
2. Connect power adaptor, then connect the IP camera to PC or network. Set up the network
configurations according to the network environment.
The following picture shows a DC 12V
connector for adapter jack plug.
microSD
G
DO
DI
G
Line out
MIC In
G
Video
