2.2 Hardware Installation
1. Connect a power adapter and IP camera to PC or local network.
2. I/O Control Instruction

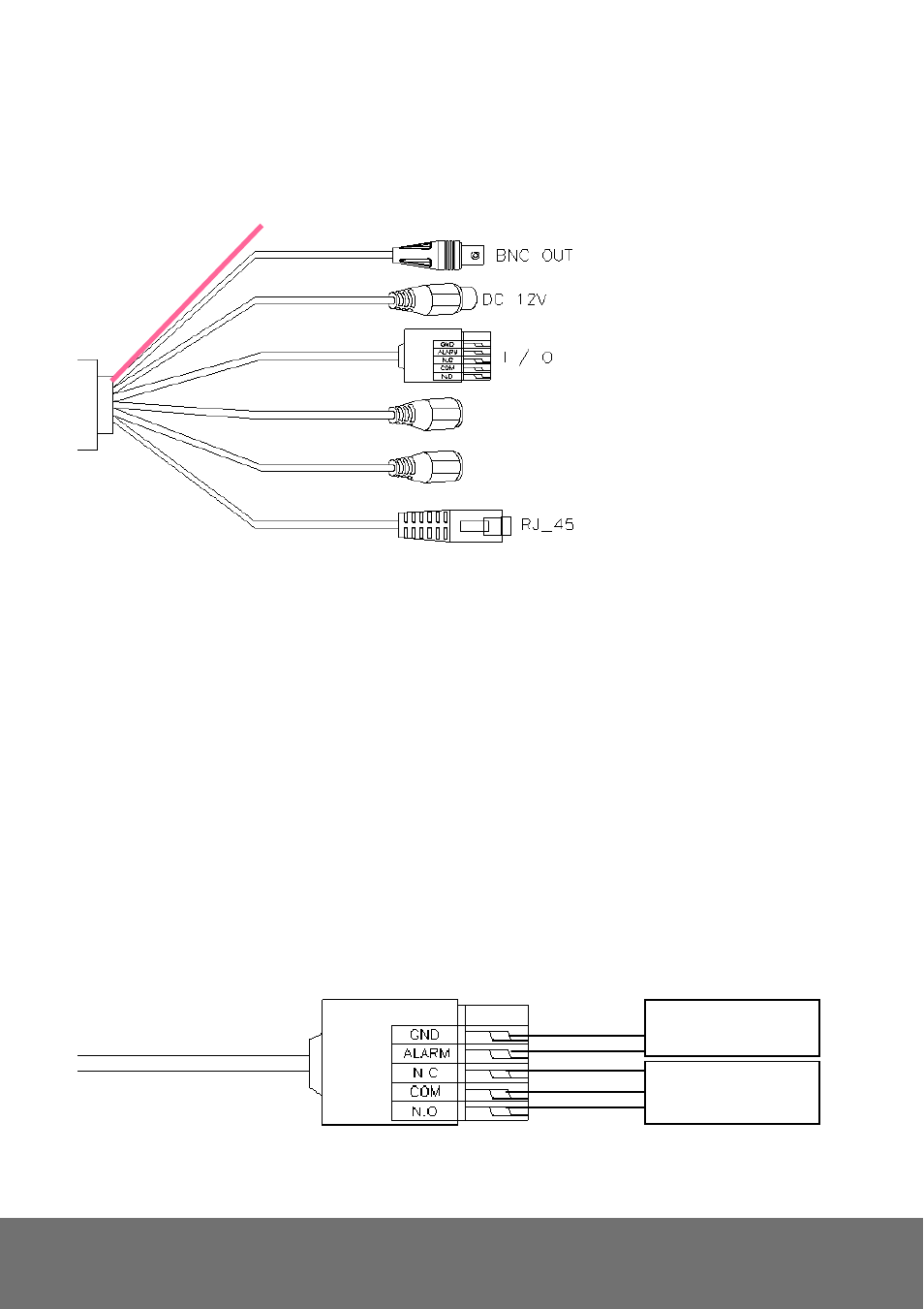

I/O terminal connector – used in application, for e.g., motion detection, event triggering, alarm
notifications. It provides the interface to:
Digital Input (GND+Alarm) : An alarm input for connecting devices that can toggle between
an open and closed circuit, for
1. GND (Ground) : Initial state is LOW
2. Alarm : Max. 50mA, DC 3.3V
Example: PIRs, door/window contacts, glass break detectors, etc. When a signal is
received the state changes and the input becomes active.
Relay output (COM +N.O.) / (COM+N.C.) : An output to Relay switch, for example: LEDs,
Sirens, etc
1. N.C. (Normally Close): Max. 1A, DC24V or 0.5A, 1AC25V
2. COM: (Common)
3. N.O. (Normally Open): Max. 1A, DC24V or 0.5A, AC 125V
3.5mm Phone Jack (Audio Input, Red)
3.5mm Phone Jack (Audio Output, Green)
ALARM IN
RELAY OUT
Pink default setting wire
