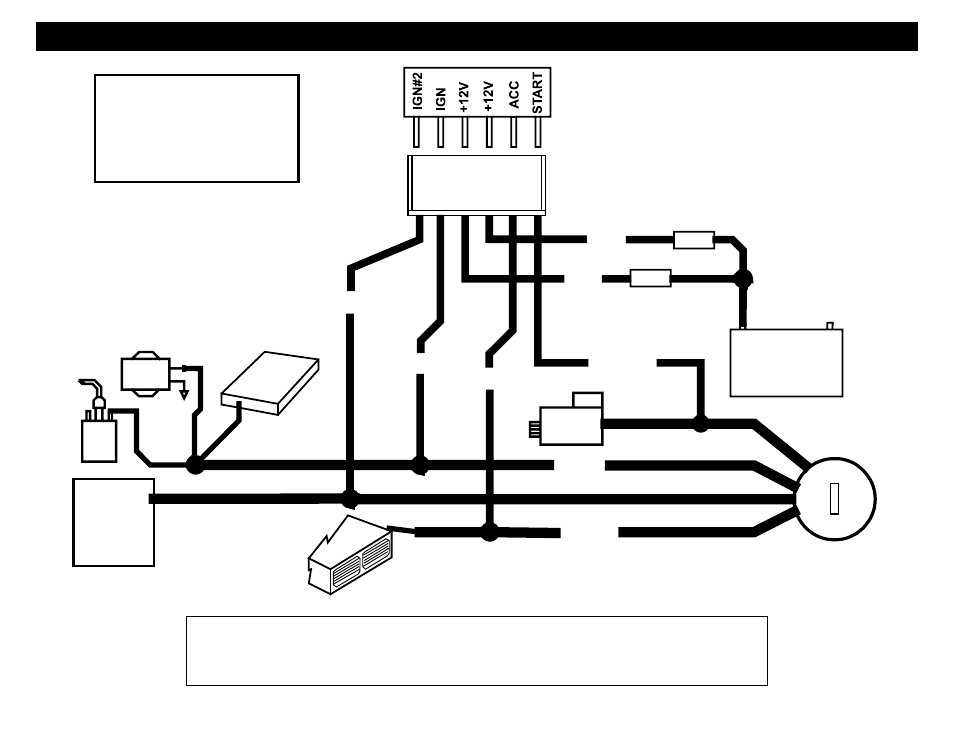

WIRING: 6-PIN High Current Connector
FUSE
RED
PINK/WHITE
30A
FUSE RED
30A
+ -
BROWN PINK
FUEL ENGINE
BATTERY
PUMP ECU
GRAY
+ STARTER -
COIL
IGN
OR
ACC
HEAT / AC
Diagram not to scale,
for illustration purposes
only. Your vehicle may
differ.
IGN 2
ACC 2
IF NECESSARY
NOTE!: Use External Relays for High Current Ignition and/or Accessory
circuits greater than 30A. Failure to do so could result in damage to the
unit that is not covered under warranty.
