WIRING: 2-PIN LED / 2-PIN Program-Valet Button (22 gauge wires)
Mount LED in a visible location in the Dash or Console. Connect the small 2-pin plug from the LED to the control
module. Note: Connectors are designed so that they will only plug into their appropriate slots.
Mount the Valet/Program/Override button in a suitable location. Connect the 2-pin plug from the Switch to the
control module. Note: Connectors are designed so that they will only plug into their appropriate slots.
WIRING: 4-PIN Shock Sensor (22 Gauge wires)
4 Pin Plug - Sensor Plug 22 Gauge :
SHOCK SENSOR: The sensor supplied with this system
does not require any additional wiring. Simply mount the
sensor in a suitable location, plug it in, and adjust for
sensitivity. White Wire: (-) Negative Trigger
Blue Wire: (-) Negative Warn Away
Black Wire: (-)Sensor Ground
Red Wire: +12Volt Sensor Power
Sensor Adjustment
Adjust the main shock sensor with the small White dial. Clockwise will increase sensitivity and counter-clockwise
will decrease sensitivity. Adjust Pre-Warning level with small Black dial.

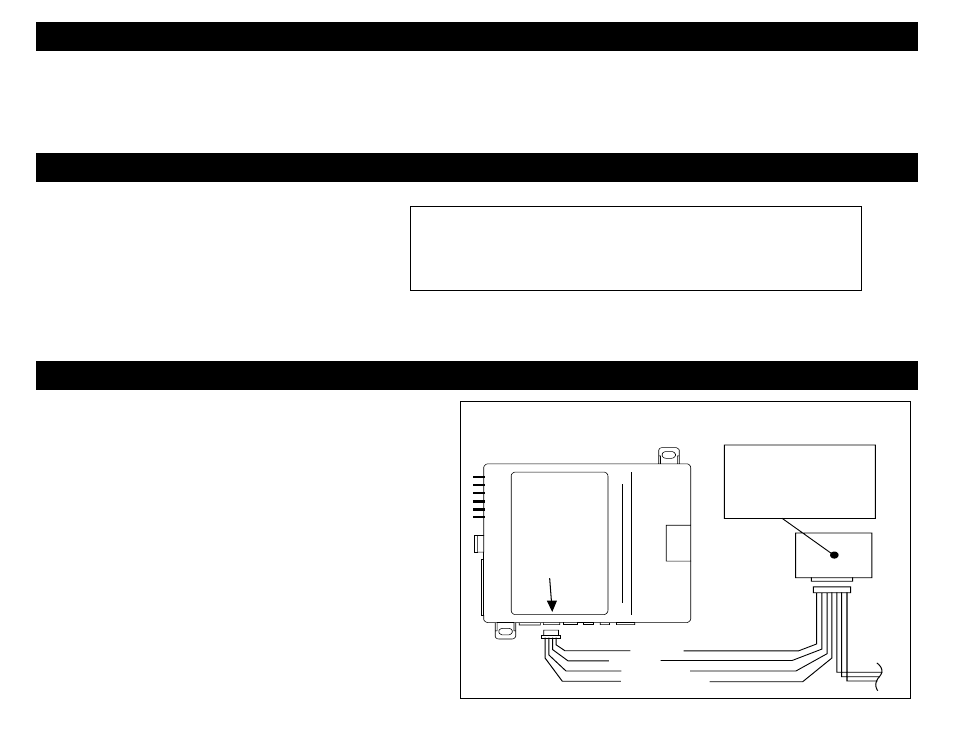

WIRING: 4-PIN (BLUE) Door Lock Connection Port (For External Modules)
There is now a Blue 4-pin output port for use when
installing your system along with an optional
Crimestopper Data Bus door lock interface module.
Some new vehicles require a special door lock
interface module. Check your Crimestopper catalog
or Crimestopper’s website for the latest list of vehicles
requiring Data Bus door lock interfaces. To save time
just connect the 4-pin input harness of a Crimestopper
Data Bus Interface Module into this Blue port and
make the remaining connections according to the data
module’s instructions. If using an External Data Bus
module, you will no longer require the standard 3-pin
door lock output plug for your installation.
4-Pin
Blue
Crimestopper External
Data Bus Door Lock
Adapter. (Optional) Check
Catalog for Part numbers
& Applications.
(-) UNLOCK (#2)
(-) LOCK
(-) UNLOCK
+12 VDC
New Connection for External Modules
10
