Power door locks: wiring & system types, Green: (-) lock / (+) unlock, Red: +12v coil power for external relays – Crimestopper Security Products CS-2011RS SERIES IV User Manual

Page 11: Hint! this system provides both positive and neg, Reverse polarity: many ford/lincoln/mercury/dodge

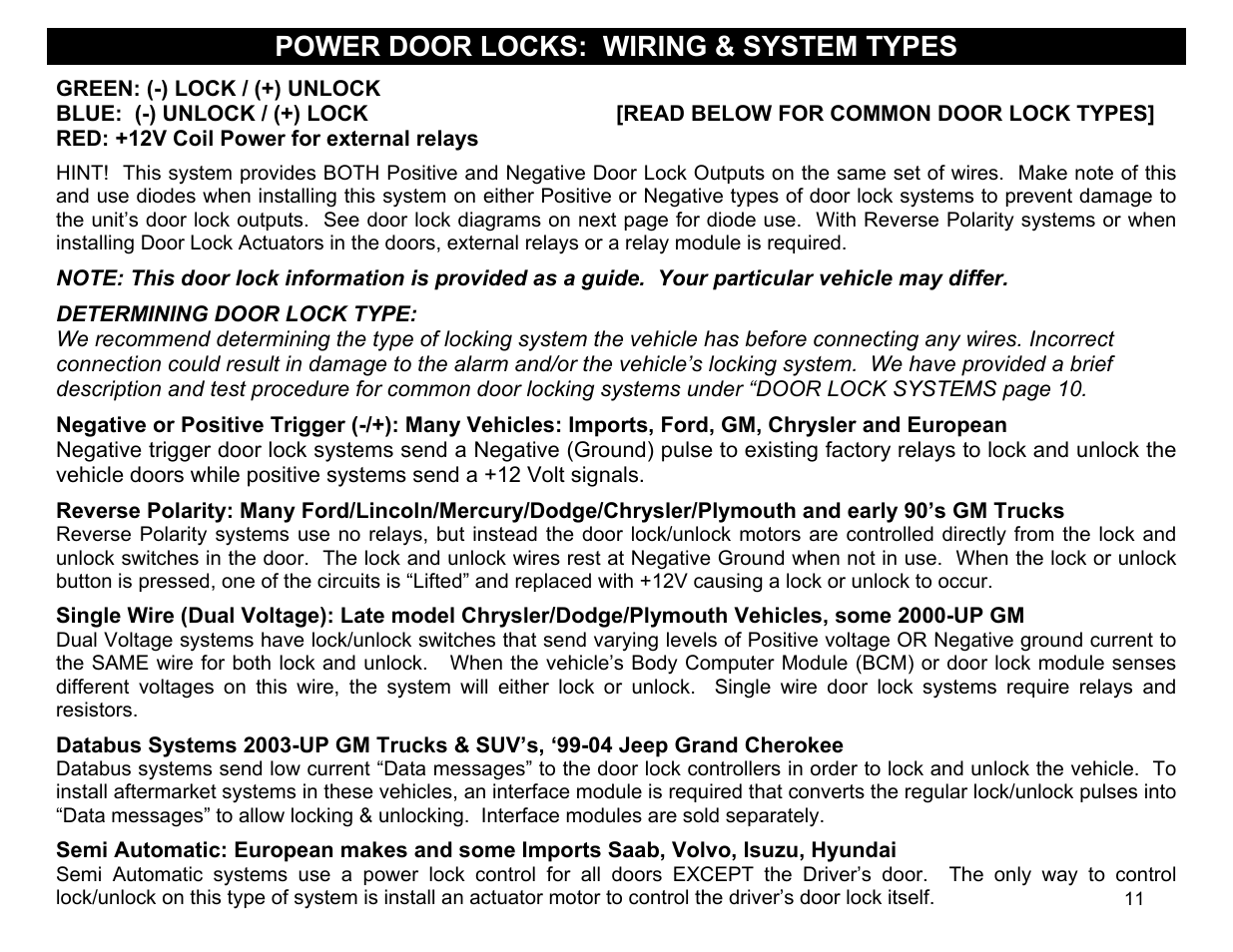

Power door locks: wiring & system types, Green: (-) lock / (+) unlock, Red: +12v coil power for external relays | Hint! this system provides both positive and neg, Reverse polarity: many ford/lincoln/mercury/dodge | Crimestopper Security Products CS-2011RS SERIES IV User Manual | Page 11 / 28 Power door locks: wiring & system types, Green: (-) lock / (+) unlock, Red: +12v coil power for external relays | Hint! this system provides both positive and neg, Reverse polarity: many ford/lincoln/mercury/dodge | Crimestopper Security Products CS-2011RS SERIES IV User Manual | Page 11 / 28
