Installing Hardware 2-3
Step 2: Insert the
modem card
1. Align the modem card with the unused PCI slot and press the card gently but firmly into the slot as
shown in Figure 2-2.
2. Secure the modem card with the screw you had placed aside earlier.
Step 3: Connect to
power supply
1. Replace the computer casing.
2. Plug the power cord back into the wall outlet, and then turn on the computer.
To install drivers and applications, refer to “Installing and Testing the Modem Drivers” on page 3-2.
Do not force the modem
card into the slot. Make
sure that the gold finger
PCI connector on the
modem card is aligned
with the motherboard
before you insert the card
into the PCI expansion
slot.
If it does not fit properly,
gently remove it and try
again.

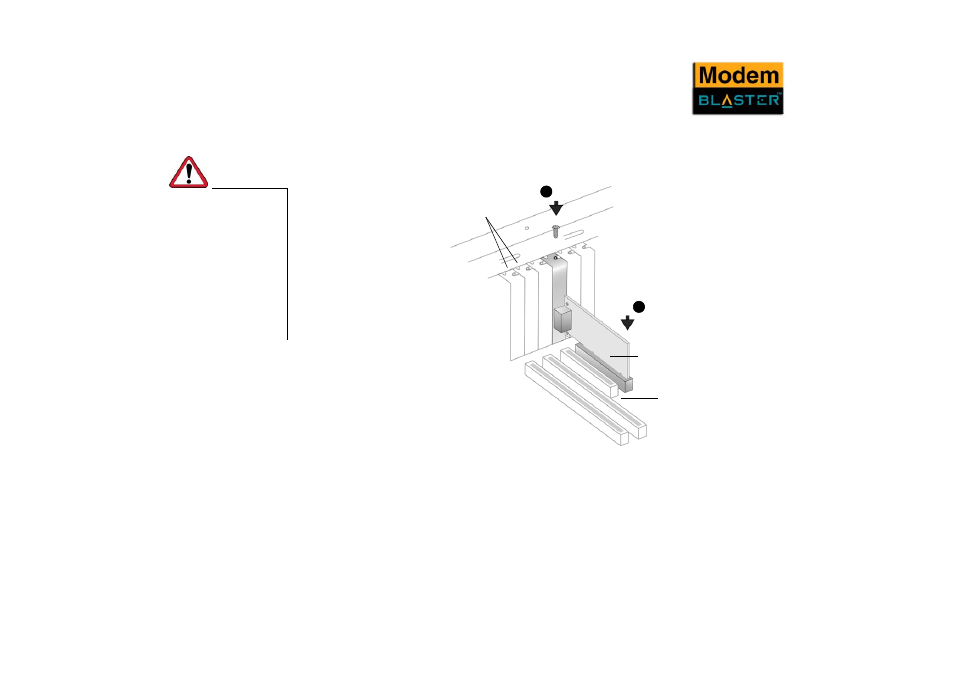

Figure 2-2: Aligning the modem card against the slot.
1
2
Unused brackets
Fasten the modem card and
bracket with a screw.
PCI slot
ISA slot
