FIPS 140-2 Nonproprietary Security Policy for Cisco 7206VXR NPE-400 Router with VAM
OL-3959-01
Cryptographic Module
Cryptographic Module
The Cisco 7206VXR NPE-400 router with VAM is a multiple-chip standalone cryptographic module.
The Cisco 7206VXR supports multi-protocol routing and bridging with a wide variety of protocols and
port adapter combinations available for Cisco 7200 series routers. The metal casing that fully encloses
the module establishes the cryptographic boundary for the router, all the functionality discussed in this
document is provided by components within the casing. The Cisco 7206VXR has six slots for port
adapters, one slot for an input/output (I/O) controller, and one slot for a network processing engine or
network services engine.

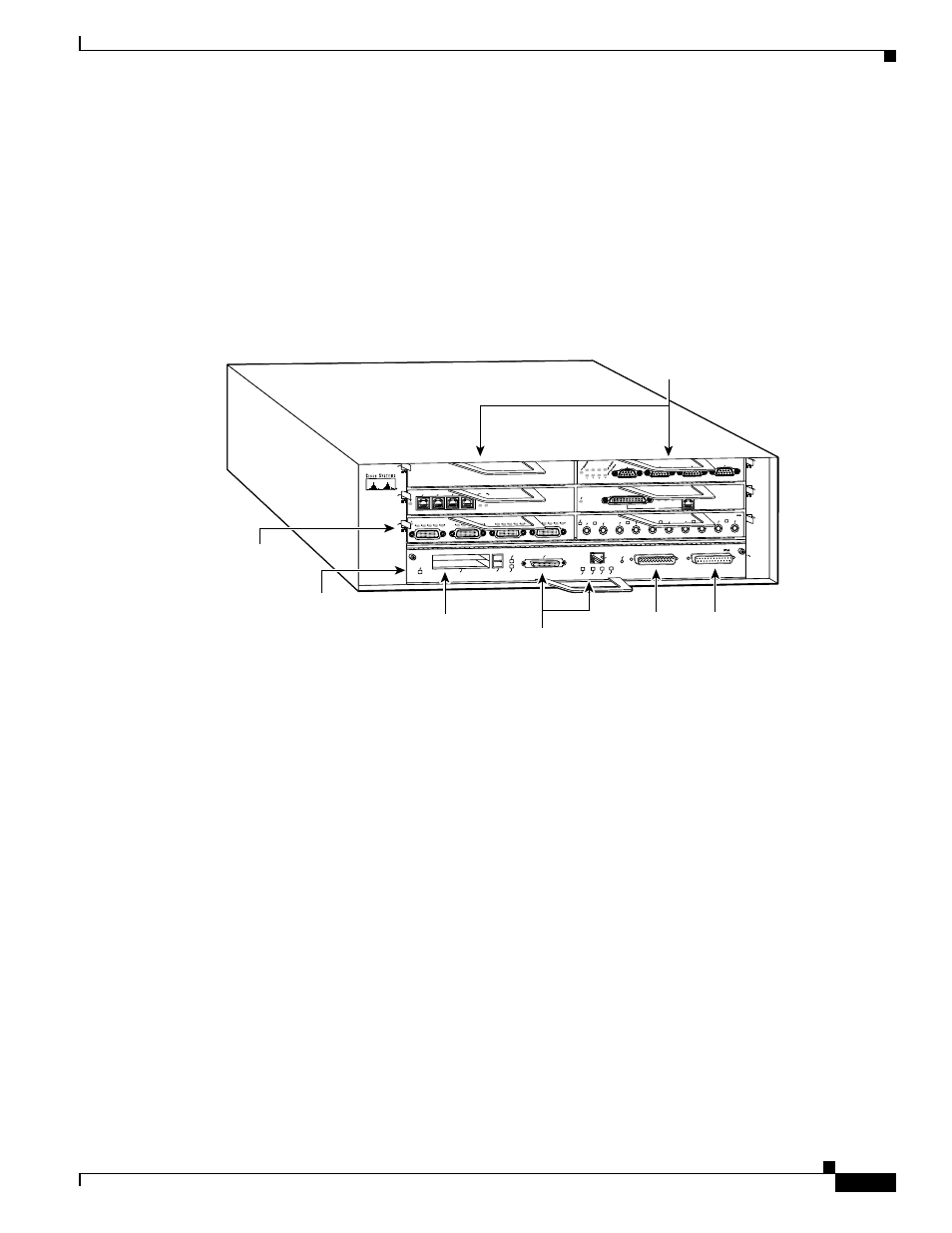

Figure 1 Cisco 7206VXR NPE-400 Router (Front View)
The Cisco 7206VXR NPE-400 uses an RM7000 microprocessor that operates at an internal clock speed
of 350 MHz. The NPE-400 uses SDRAM for storing all packets received or sent from network interfaces.
The SDRAM memory array in the system allows concurrent access by port adapters and the processor.
The NPE-400 has three levels of cache: a primary and a secondary cache that are internal to the
microprocessor, and a tertiary 4-MB external cache that provides additional high-speed storage for data
and instructions.
The Cisco 7206VXR router comes equipped with one 280W AC-input power supply. (A 280W DC-input
power supply option is available.) A power supply filler plate is installed over the second power supply
bay. A fully configured Cisco 7206VXR router operates with only one installed power supply; however,
a second, optional power supply of the same type provides hot-swappable, load-sharing, redundant
power.
Module Interfaces
The interfaces for the router are located on the front panel Input/Output (I/O) Controller, with the
exception of the power switch and power plug. The module has two Fast Ethernet (10/100 RJ-45)
connectors for data transfers in and out. The module also has two other RJ-45 connectors for a console
terminal for local system access and an auxiliary port for remote system access or dial backup using a
modem.
H5997
ETHERNET 10BT
ENABLED
0 2
1 3 LINK 0 1 2 3
FAST SERIAL EN
TD TC RD RC LB CD TD TC RD RC LB CD TD TC RD RC LB CD TD TC RD RC LB CD
ENABLED M II L IN K R J4 5
FAST ETHERNET
0
TOKEN RING
0 1 2 3
MII EN RJ45 EN RJ45 LINK 1O PWR OK
R J-45 C PU R E S E T FAST ETHERNET INPUT/OUTPUT CONTROLLER
ENABLED
PCMCIA EJECT SLOT 0
SLOT 1 FE MII
Auxiliary
port
Console
port
Port adapter
lever
I/O controller
0
2
4
1
3
5
6
ETHERNET-10BFL E N
R X
0 1 2 3 4 TX R X TX R X TX R X TX R X TX
Port adapters
Cisco 7200
Series
PC card slots
Optional Fast Ethernet port
(MII receptacle and RJ-45 receptacle)
