6
17

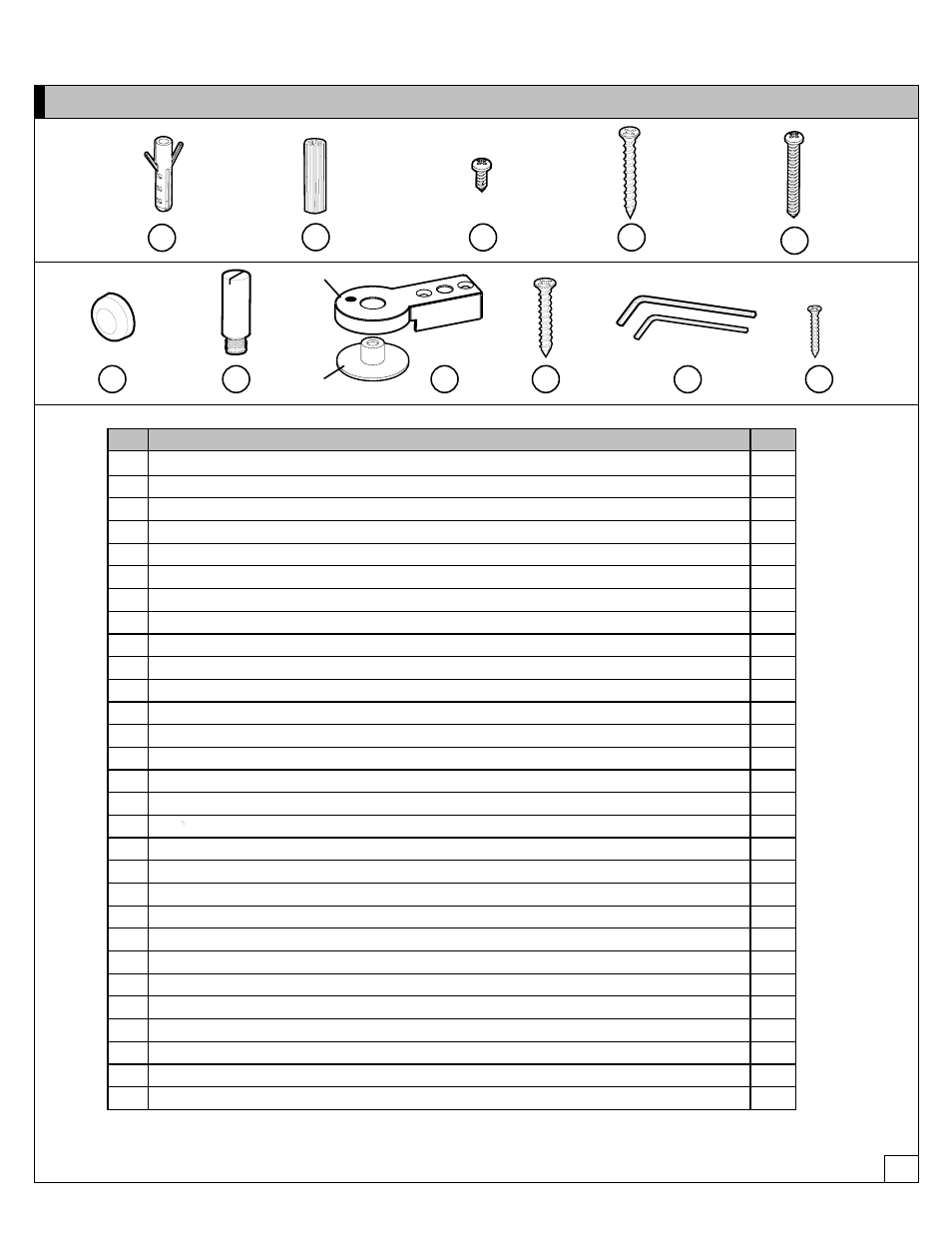

PROVIDED HARDWARE
22
20 21
23 24
18 19
25 26
24A
24B
28
PARTS QTY
1 DOOR PANEL 1
2 CURVED FIXED PANEL 1
3 WALL JAMB ‘’A’’ 1
4 CONNECTOR 1
5 SUPPORT BAR 1
6 WALL BRACKET 1
7 MAGNET GASKET 2
8 WALL JAMB ‘’B’’ 2
9 BIG FIXED PANEL 1
10 SMALL FIXED PANEL 1
11 SHELF 3
12 SHELF HOLDERS 9
13 TOWEL BAR 1
14 BOTTOM DOOR GASKET 1
15 SET OF HANDLE BAR 1
16 BASE 1
17 WALL PLUG 1
18 WALL PLUG 12
19 SCREW 12
20 SCREW 4
21 SCREW 12
22 SCREW CAP 12
23 ROD 1
24 PIVOT SUPPORT 2
25 SCREW 1
26 KEY 2
27 SIDE GASKET 1
28 SCREW 1
