INSTRUCTION MANUAL
4
4a
13
2
1
FRONT PANEL
FRONT PANEL
1
2
1 2
8
8
4a.

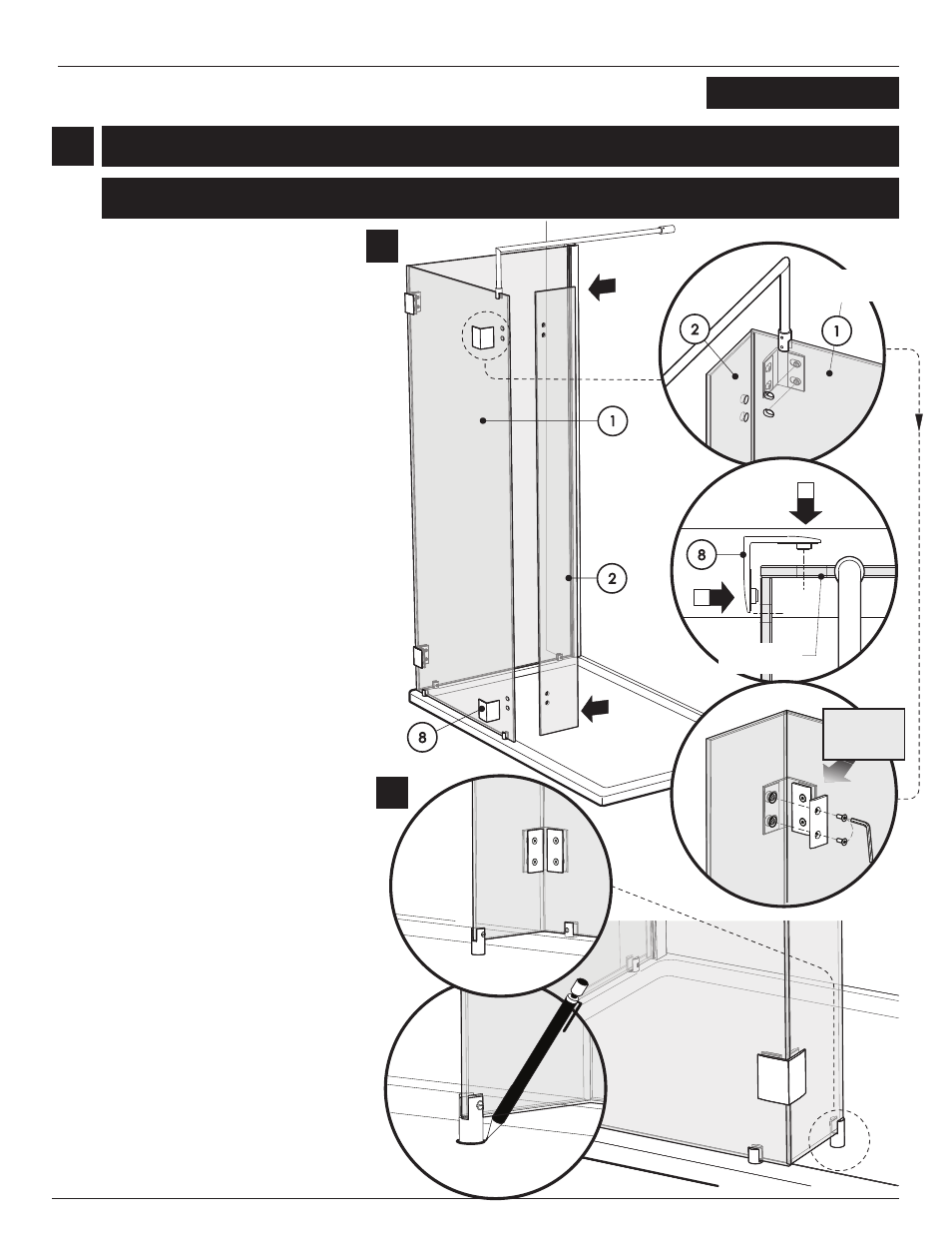

4b. Place the long bottom clip (6) right along
the edge of the glass (2). Mark on the base
its location.
Temporarily install the corner clip (8) on the
glass panels (1 & 2). Align the small panel
(2) to the edge of the front panel (1) as
shown. Install the front plate of the corner
clip in the slotted holes and slide it into the
holes of the small panel (2).
A second person proceeds to tighten the
black plates of corner clip from the inside of
the shower .
Make the necessary adjustments and level
the small panel (2) by adjusting the corner
clip.
4b
EDGE
LONG BOTTOM CLIPS INSTALLATION
CORNER CLIPS INSTALLATION
INTERIOR
SHOWER SIDE
303X, 423X, 423TBX
