Fix panel installation (continued) 6 – Alumax M-R94Z User Manual
Page 21
21
INSTALLATION MANUAL

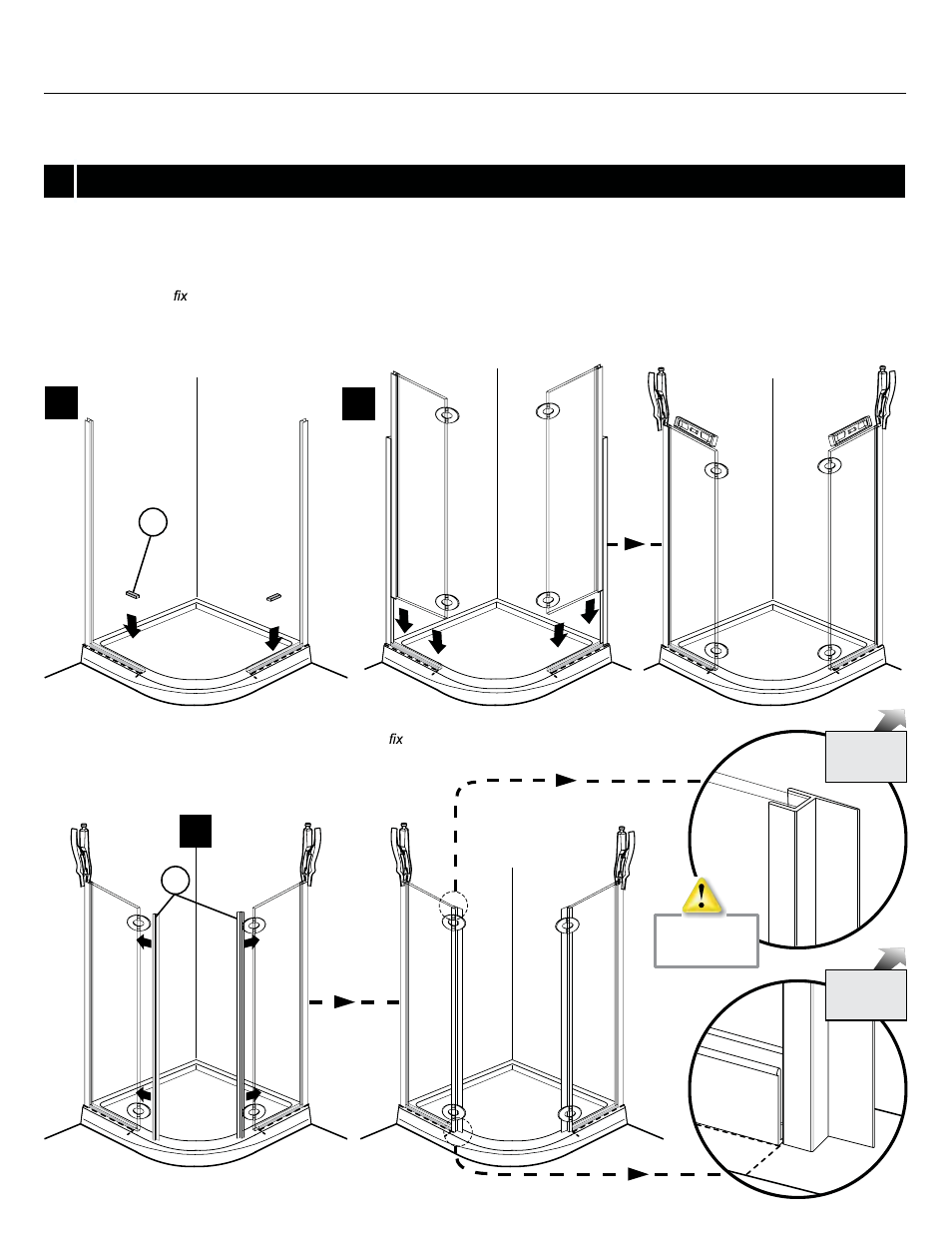

FIX PANEL INSTALLATION (CONTINUED)
6
Use a mallet to install the side gasket on the two panels.
Place the lip side towards the inside of the shower.
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
11
The side gaskets
must touch
the base!
21
Place the clear setting blocks 1 over the screws .
Insert the two panels into the wall jambs and the aluminium “U” channels and clamp the expanders to the wall jambs.
Level the glass panels and if necessary use also the clear setting blocks 2 (#22) .
6f.
6g.
6h
6f
6g
6h
