14
INSTRUCTION MANUAL

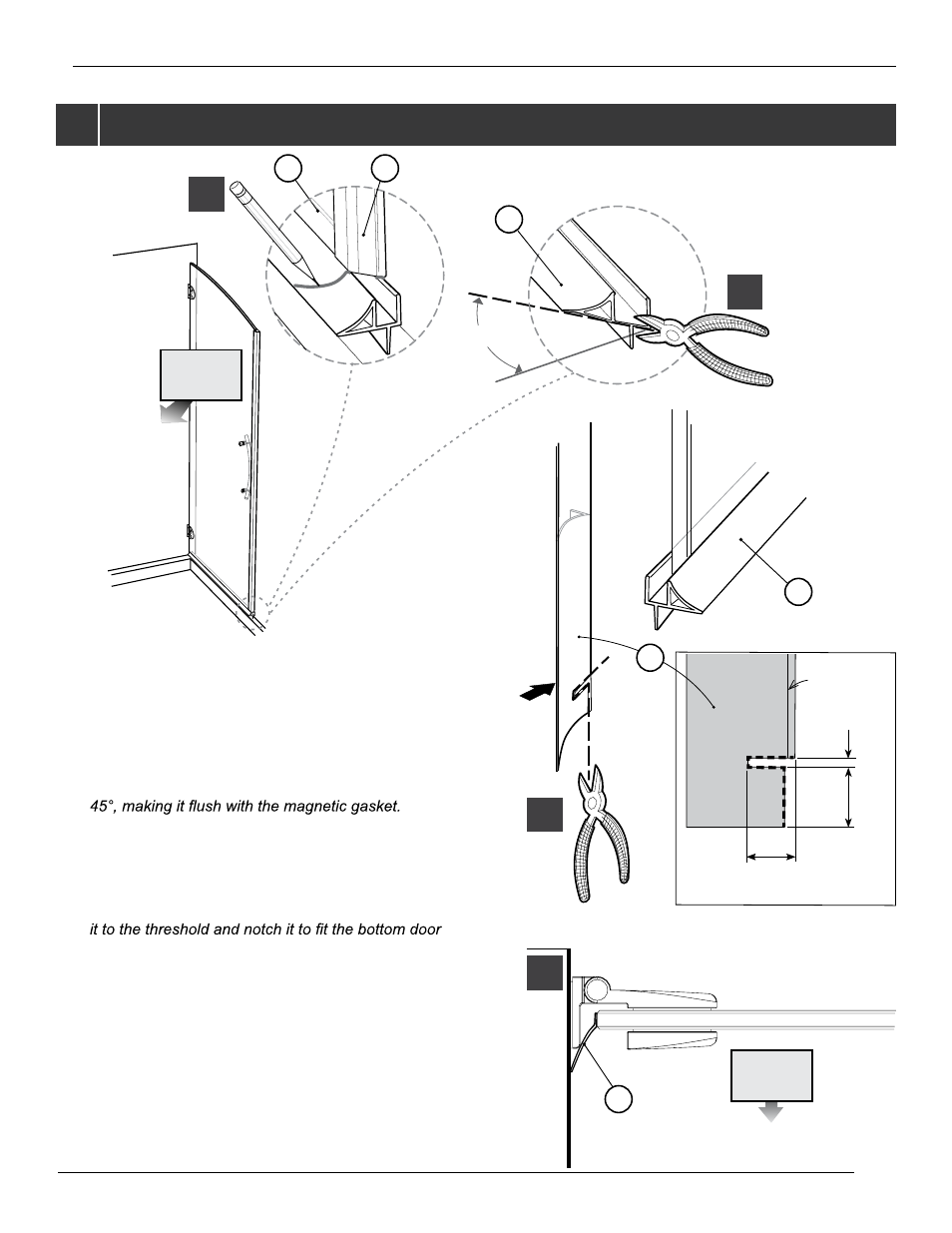

12A
INSTALL THE DOOR GASKETS.
12
12A. Align the bottom door gasket (#8) to the wall and project
on it the 45° magnetic gasket (#5) surface.
12C. Open the door and clean the door panel surface on
which the door side gasket (#10) will be placed. Align
gasket. Make sure it is oriented as illustrated.
12B. Using the cutting plier, trim the bottom door gasket at
45º
9
8
12B
5
INTERIOR
SHOWER SIDE
10
12C
12D. Stick the door side gasket on the door panel.
12D
8
± 1/8"
10
RIGID PART
SUGGESTED TRIMMING
± 5/8"
± 1/2"
INTERIOR
SHOWER SIDE
