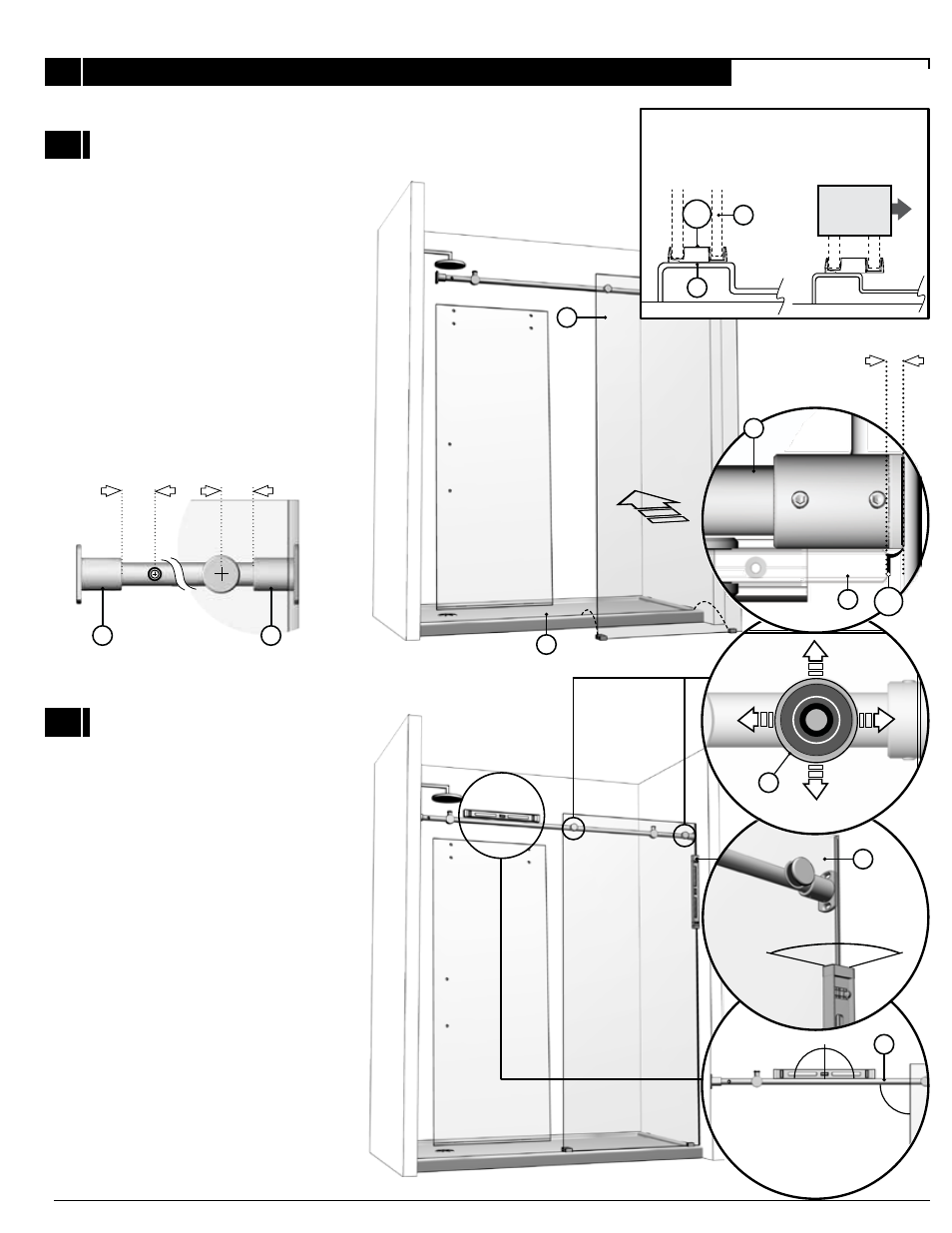

5 FIXED PANEL PLACEMEMENT
5B
Position the fixed panel assembly (7) on
threshold of base (B) as shown. Adjust the
wall brackets so as to ensure that they are
pressed up against the walls. Distances
A and B must however stay the same, as
shown below.
s e s p a ll o c ) 0 1 ( t e k s a g e h t t a h t e r u s n E
against the wall properly.
Ensure that the running rail (1) is level and
that the wide fixed panel (7) is square. If
a horizontal correction is required, adjust
and level the glass fasteners (5).
5A
A B
B
7
1
90
°
90°
5
1/2” max
(12.7mm)
7 10
1
7
2 2
The bottom guide (13) can hang off the threshold
(B) as long as it can be well-fastened.
INTERIOR
SHOWER SIDE
B
13 6
