Alumax P-DR1W-72 User Manual
Page 13

13
STRAIGHT HANDLE
10

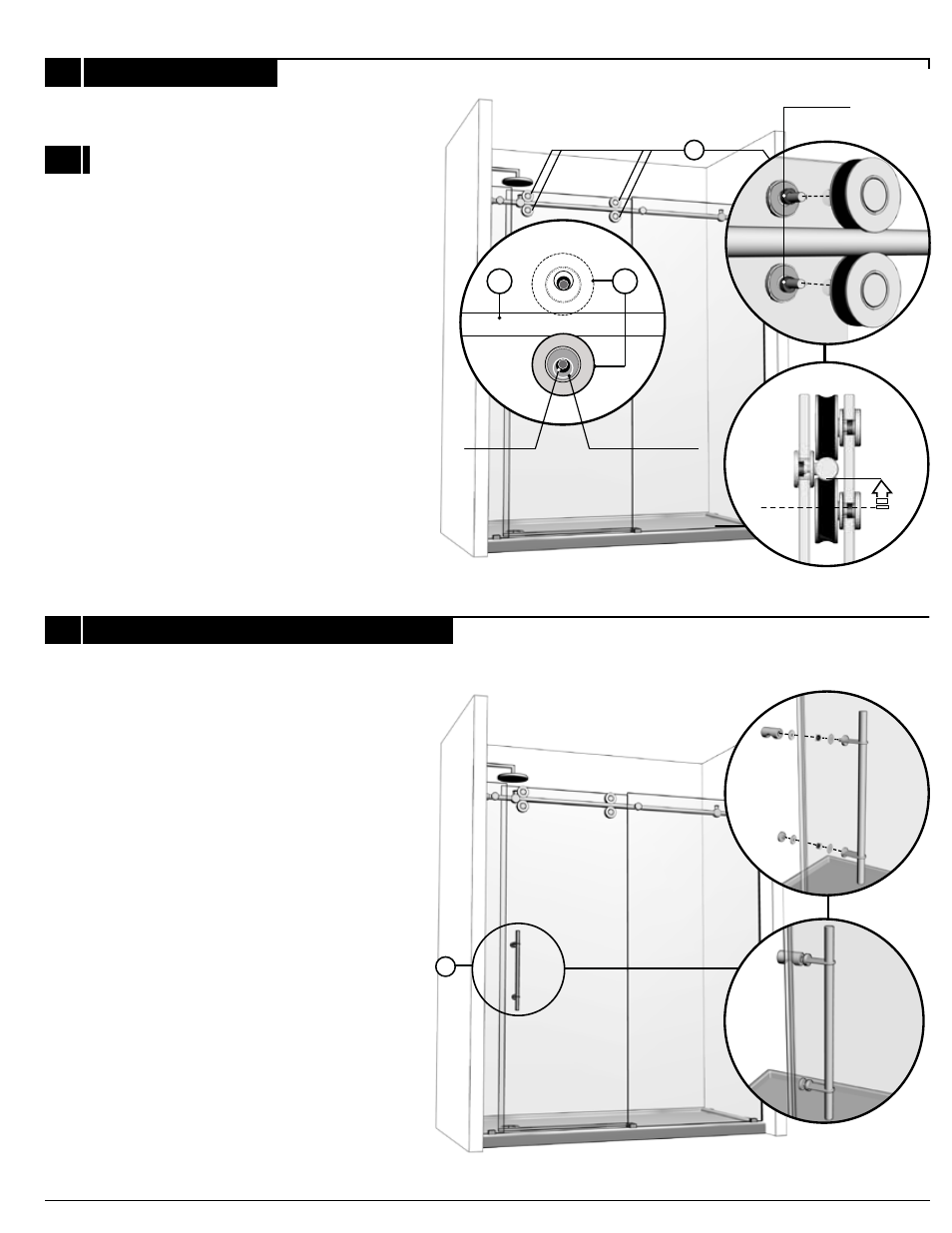

Install bottom rollers, making sure that they are
tangent to the running rail (1).
Install straight handle (9) onto sliding door (6).
Ensure that clear washers on either side of
glass are installed.
CONTINU
ED
9
Through the use of the nonconcentric washers,
adjust rollers so that the sliding door panel is
parallel to the running rail.
9C
GLASS HOLE
3
1
8
WASHER
5
WASHER
