Alumax 1050 - Manual (Page 7)

Page 7 of 9 G03711095
11-4-14
7

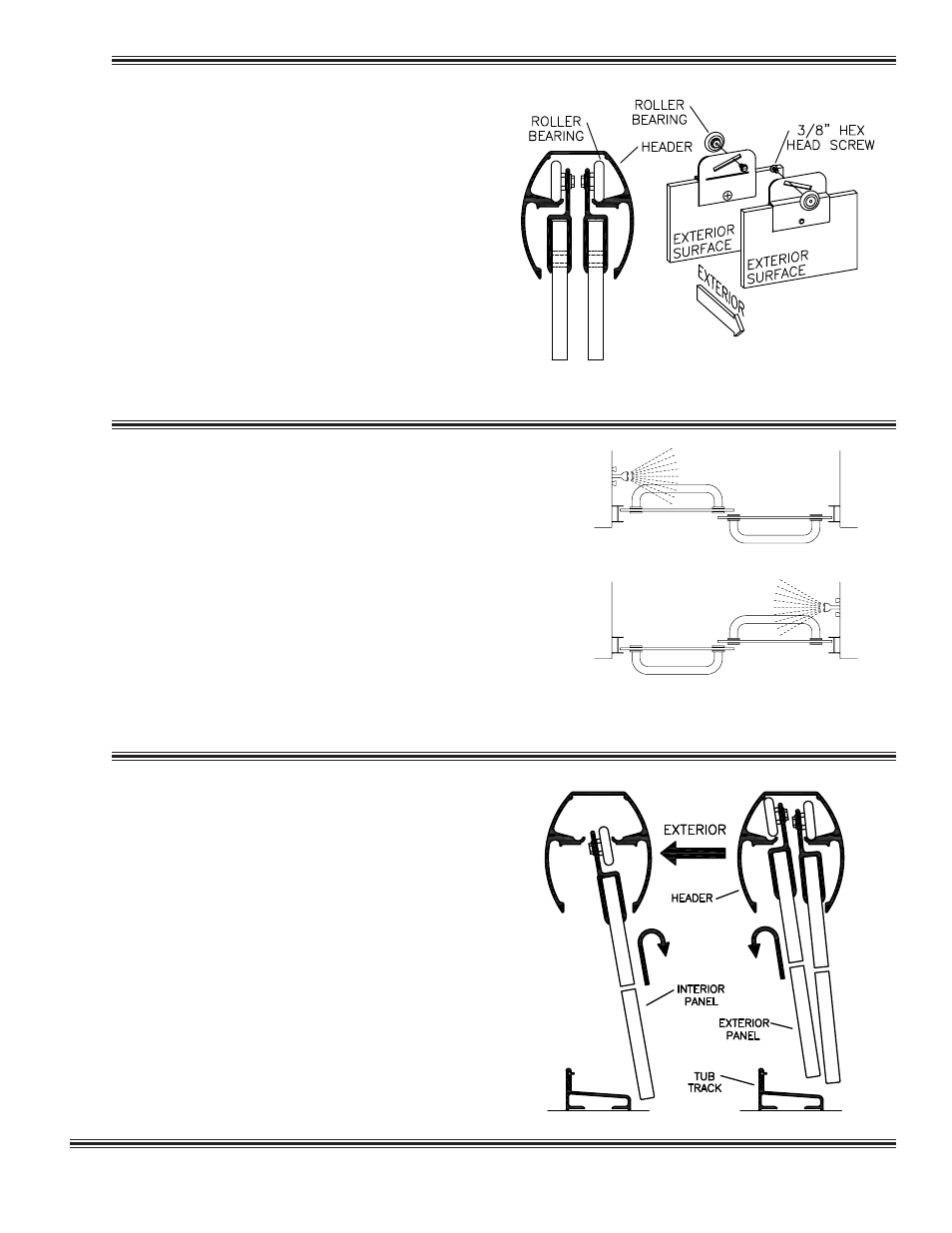

Attach the four one inch roller bearings [ K] to the
door hanger brackets [ G] as shown, using #8-32 x 3/8”
hex head screws [ L]. The rollers should be in approxi-
mately the top quarter of the diagonal slots in the bracket
fins.
8
Before installing the door panels, the proper orienta-
tion should be determined. For maximum water-proofing,
the interior panel should always be positioned closest to
the shower head, as shown in this illustration.
Lift the interior door panel [ H] (exterior surface
closest to fin) into position with the roller bearings [ K]
engaging the roller slot in the header [ F]. If the door
panel is not parallel to the wall jambs, remove and adjust
the roller bearings up or down to compensate.
Repeat for the exterior door panel (exterior surface away
from the fin).
9
