EPH-N00-06020

1-26-00

- 790 DOORS ONLY

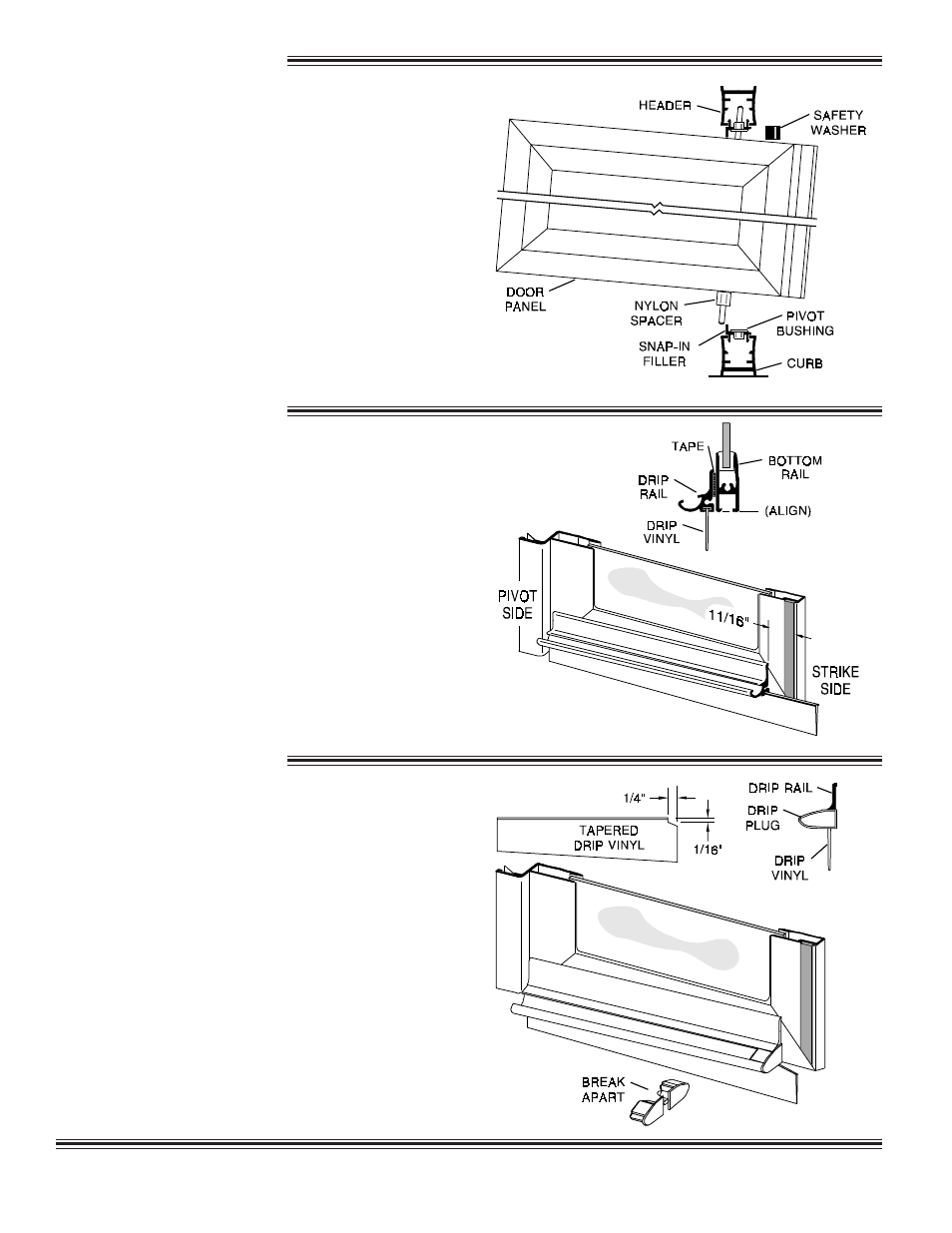

Adjust the drip vinyl [T] by sliding it left or

right until it just touches the curb. Trim the vinyl
(flush with the pivot end and notch 1/4" longer
than the drip rail as shown on the strike end).

The drip plug [S] is supplied with a left and right
hand plug together. Break the right and left drip
plug apart and insert the appropriate plug into
the high (strike) side of the drip rail. Discard the
unused drip plug. Peel off the tape backing and
carefully press the drip rail [R] to the door in the
marked position.

Cut the drip rail [R] to the length of the bottom

rail minus 11/16". Clean the bottom door rail and the
drip rail thoroughly to ensure proper adhesion. Unroll
the double stick tape [V] and carefully apply it to the
back of the drip rail (do not peel the tape backing yet).

Insert the tapered drip vinyl [T] into the drip rail.
Position the drip rail flush with the bottom and pivot
side of the door panel [L], then raise the strike side
until the bottom edge of the drip vinyl is parallel to the
curb [A]. Mark the location of each end of the drip rail.

Insert the two nylon pivot bushings [Y] into

the pivot holes in the head and curb fillers [P].

Lift the door panel [L] and insert the top pivot pin
into the pivot bushing in the header filler. Hold the
door vertical and insert the bottom pivot pin into the
pivot bushing in the curb filler. It may be necessary
to remove the header retaining screws and raise the
header slightly to install the door.

When the door has been set into place, snap the
security washer [AA] over the top pivot pin to hold
the upper pivot bushing in place and prevent
accidental dislodging of the door.
