1 - ALL DOORS
The A LUMAX 794 S TIK S TALL Shower Enclosure
is completely reversible and may be installed
pivot-left or pivot-right (hinge-left or hinge-right).
For maximum waterproofing, the pivot jamb should

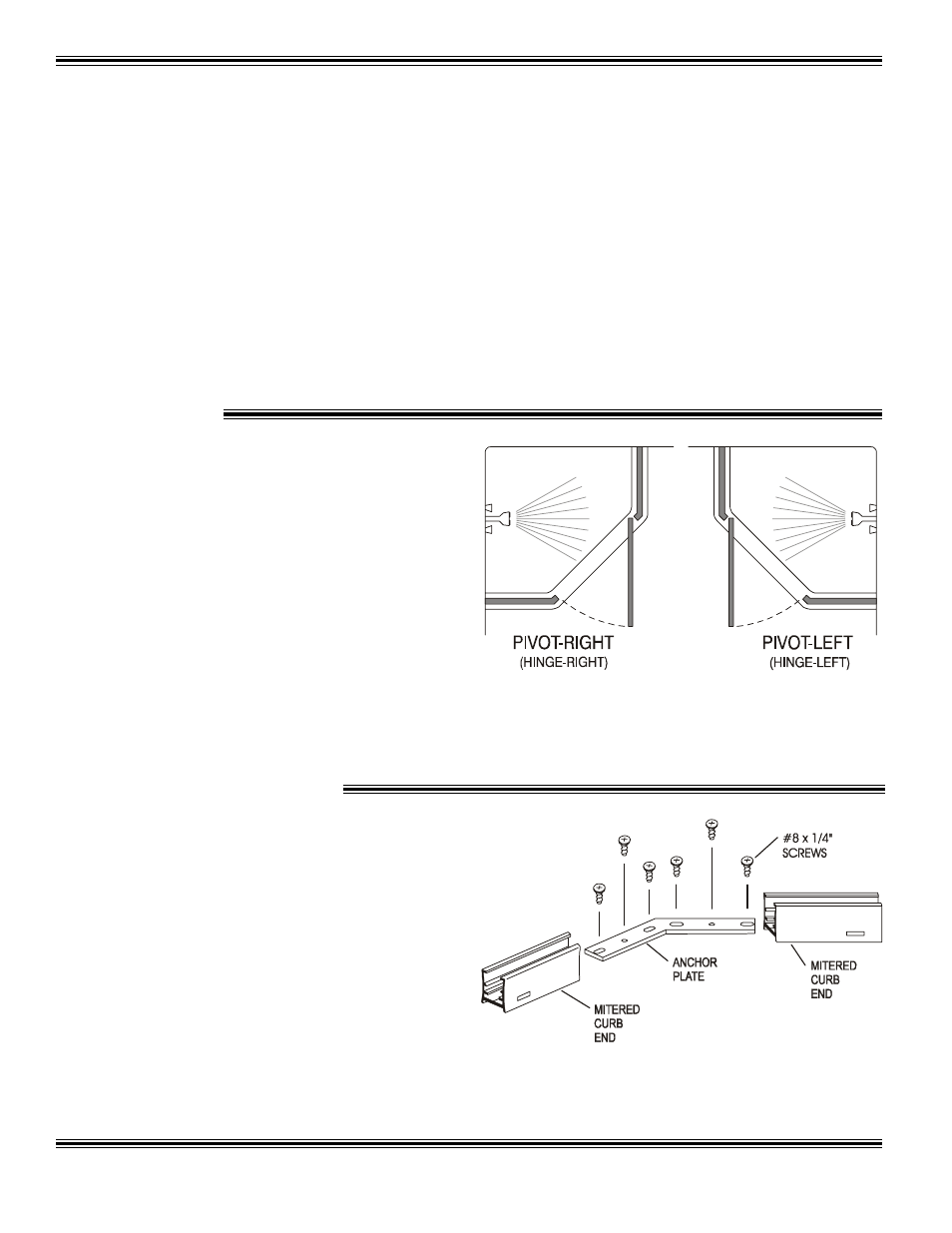

be opposite the shower head. Using the diagram,
determine the correct position for the door in your
particular S
TIK S TALL installation. This instruction
sheet depicts a pivot-right (hinge-right)
i n s t a l l a t i o n .
NOTE: Fixed glass panel size should be determined
by formulas shown on A
LUMAX detail sheets.
CAUTION: For safety reasons, the door panel
must always open outward.
The A
LUMAX
S
TIK
S
TALL
framework has been designed to work with a variety
of different door types. To ensure correct installation, this 794 Instruction Sheet
is designed to be used by itself with a 790 Framed Pivot Door or with an instruction
supplement packed with a 390 Frameless Pivot Door, a 790i Intre-Hinge Door or
a 1090 Heavy Frameless Pivot Door.
Each step in this primary instruction sheet will indicate whether it applies to
all door types or if a supplement should be used. If your door panel kit does not
have an instruction supplement, then contact your dealer for the proper instructions.
790 door panel kits are covered in this instruction, therefore will not come with a
separate instruction supplement.
2 - ALL DOORS EXCEPT 1090
Assemble the three curb sections [A] (with
weep slots) by sliding two 135° anchor plates [B]
into the mitered ends and forcing the sections
together. The weep slots in the curb must be to the
inside. Using the slotted holes in the anchor plate
as a guide, drill matching 1/8" holes into the curbs.
Secure the anchor plates to the curb with eight #8
x 1/4" truss head screws [C]. As you tighten the
screws, be sure the mitered ends are forced tightly
together. To increase the rigidity of the mitered
joint, drill and install two more screws through
the round holes in the bracket.
Assemble the three header sections [D] in the
same manner and set the assembly aside.
