Alumax 794 - Manual (Page 3)

Page 3 of 11 G03711062
7-2-07
A
.
3 Curb Sections (with weep slots)
B
.
4 135
° Anchor Plates
C
.
48 #8 x 1/4" Truss Head Screws
D
.
3 Header Sections
E
.
2 Wall Jambs
F.
6 Plastic Wall Anchors
G
.
6 #8 x 1 1/2" Truss Head Screws
H
.
4 Plastic Setting Blocks
J.
2 Fixed Glass Panels
K
.
2 135
° Post
L.
2 Clear Vinyl Jamb Seals
M
.
1 Glazed Door Panel
N
.
1 Pivot Jamb
P
.
1 Strike Jamb (Magnetic)
R
.
2 Snap-in Fillers
S
.
1 Drip Rail
T.
2 Drip Plugs
U
.
1 Tapered Drip Vinyl
V
.
1 Roll Double Stick Tape
W
.
2 #10 x 7/16" Sq. Head Set Screws
X
.
1 Nylon Spacer
AA.
2 Nylon Pivot Bushings
BB.
1 Security Washer
CC.
1 Interior Door Handle
DD.
1 Exterior Door Handle
EE.
2 #6 x 1 1/4" Round Head Screws
FF
.
8 Pcs. Vert. Glazing Vinyl (72")
G
G
.
8 Pcs. Horiz. Glazing Vinyl (48")

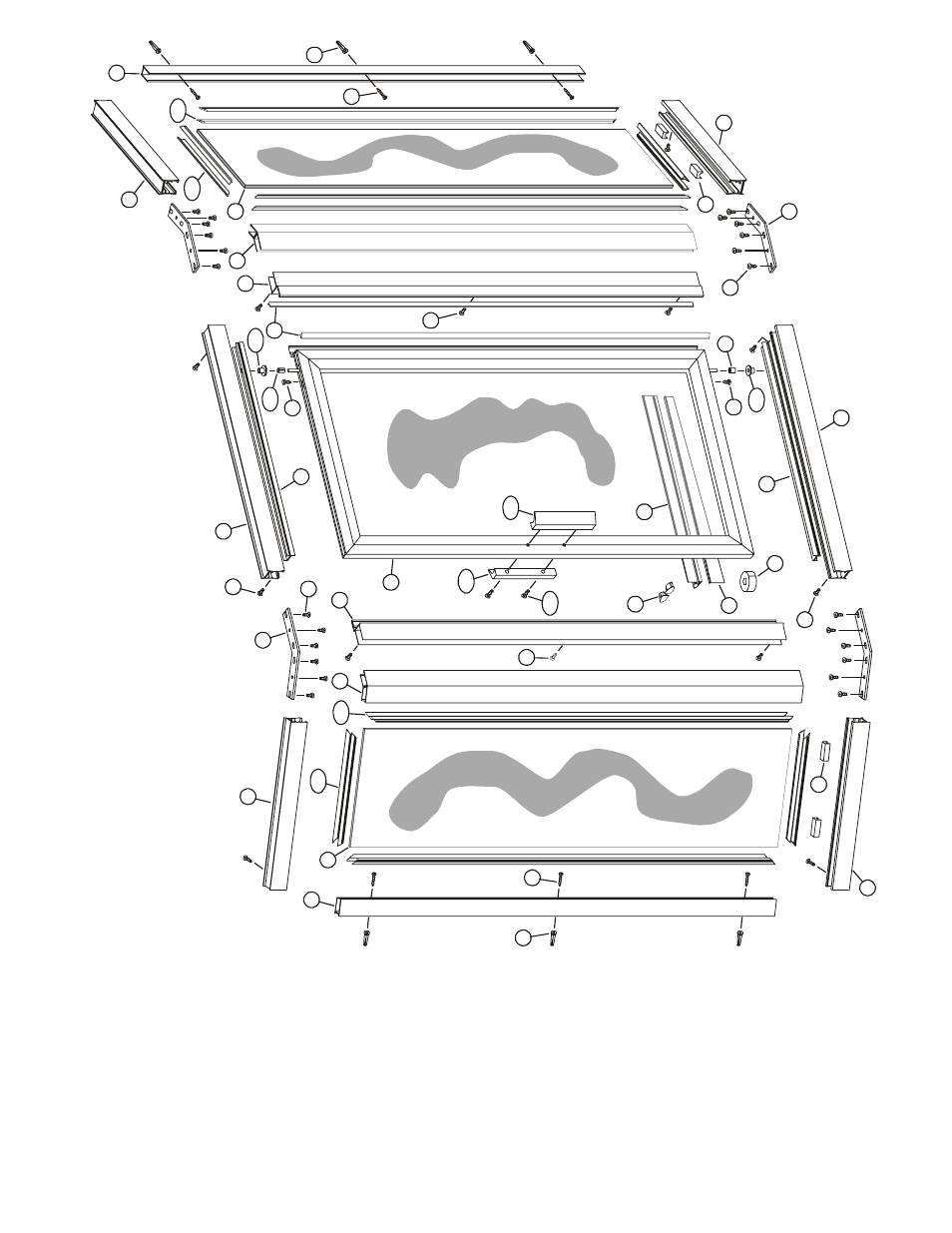

794 STIKSTALL
PARTS LIST
A
B
A
R
R
D
B
U
M
L
T
S
C
H
X
C
W W
BB AA
AA
C
F
G
C
C
G
F
D
E
C
J
FF
K
P
E
CC
DD
GG
EE
H
A
V
D
J
K
N
FF
GG
