Alumax 791 User Manual

Page 9

G03711063

12-21-05

Page 8 of 10

- 790 DOORS ONLY

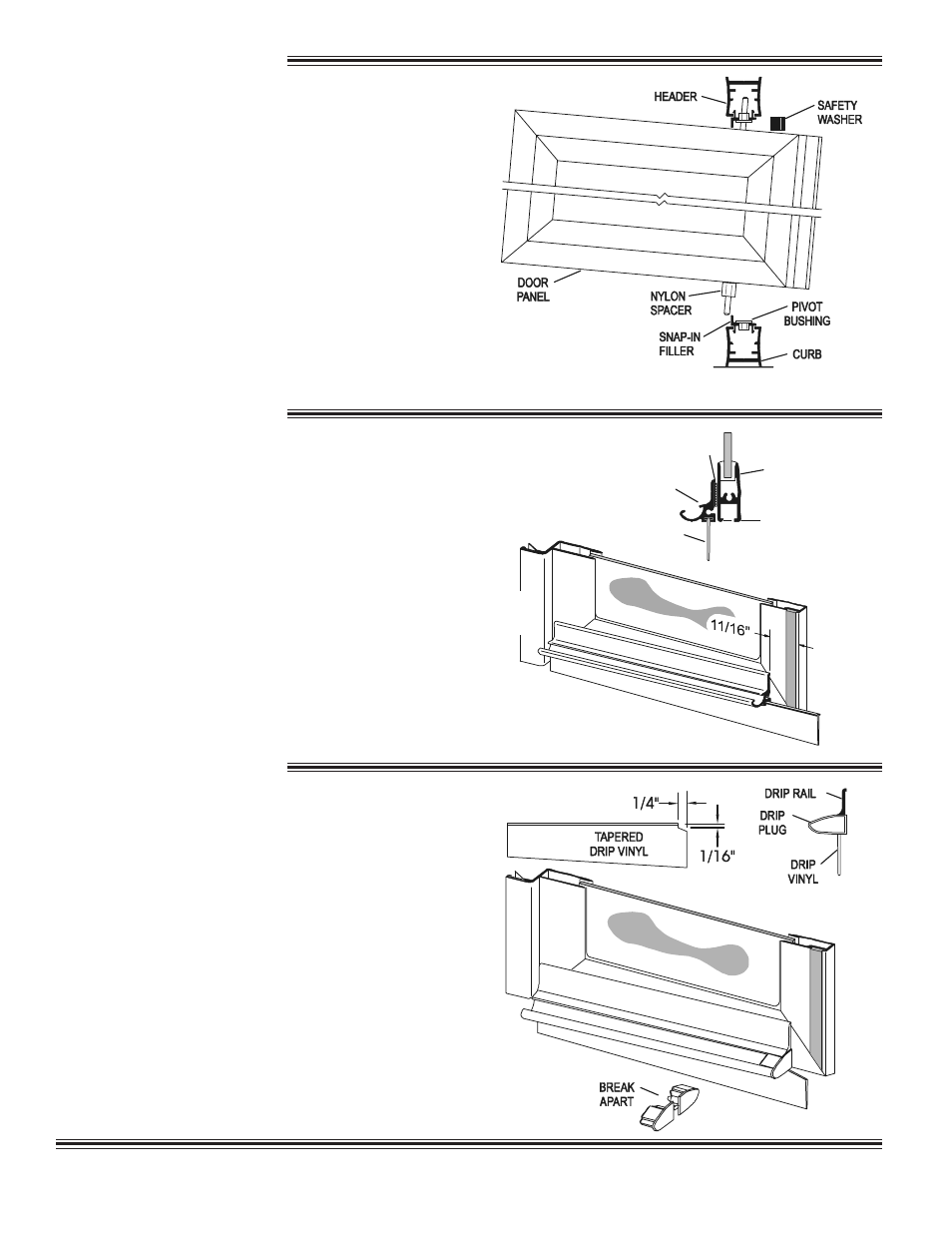

Insert the two nylon pivot bushings [

] into

the pivot holes in the head and curb fillers [

Lift the door panel [ L] and insert the top pivot pin

into the pivot bushing in the header filler. Hold

the door vertical and insert the bottom pivot pin

into the pivot bushing in the curb filler. It may be

necessary to remove the header retaining screws

and raise the header slightly to install the door.
When the door has been set into place, snap the

security washer [ AA] over the top pivot pin to hold

the upper pivot bushing in place and prevent

accidental dislodging of the door.

Cut the drip rail [ R] to the length of the bottom

rail minus 11/16". Clean the bottom door rail and the

drip rail thoroughly to ensure proper adhesion. Unroll

the double stick tape [ V] and carefully apply it to the

back of the drip rail (do not peel the tape backing yet).
Insert the tapered drip vinyl [ T] into the drip rail.

Position the drip rail flush with the bottom and pivot

side of the door panel [ L], then raise the strike side

until the bottom edge of the drip vinyl is parallel to the

curb [ A]. Mark the location of each end of the drip rail.

Adjust the drip vinyl [ T] by sliding it left or

right until it just touches the curb. Trim the vinyl

(flush with the pivot end and notch 1/4" longer

than the drip rail as shown on the strike end).
The drip plug [ S] is supplied with a left and right

hand plug together. Break the right and left drip

plug apart and insert the appropriate plug into

the high (strike) side of the drip rail. Discard the

unused drip plug. Peel off the tape backing and

carefully press the drip rail [R] to the door in the

marked position.

BOTTOM

RAIL

(ALIGN)

TAPE

DRIP

RAIL

DRIP

VINYL

STRIKE

SIDE

PIVOT

SIDE
