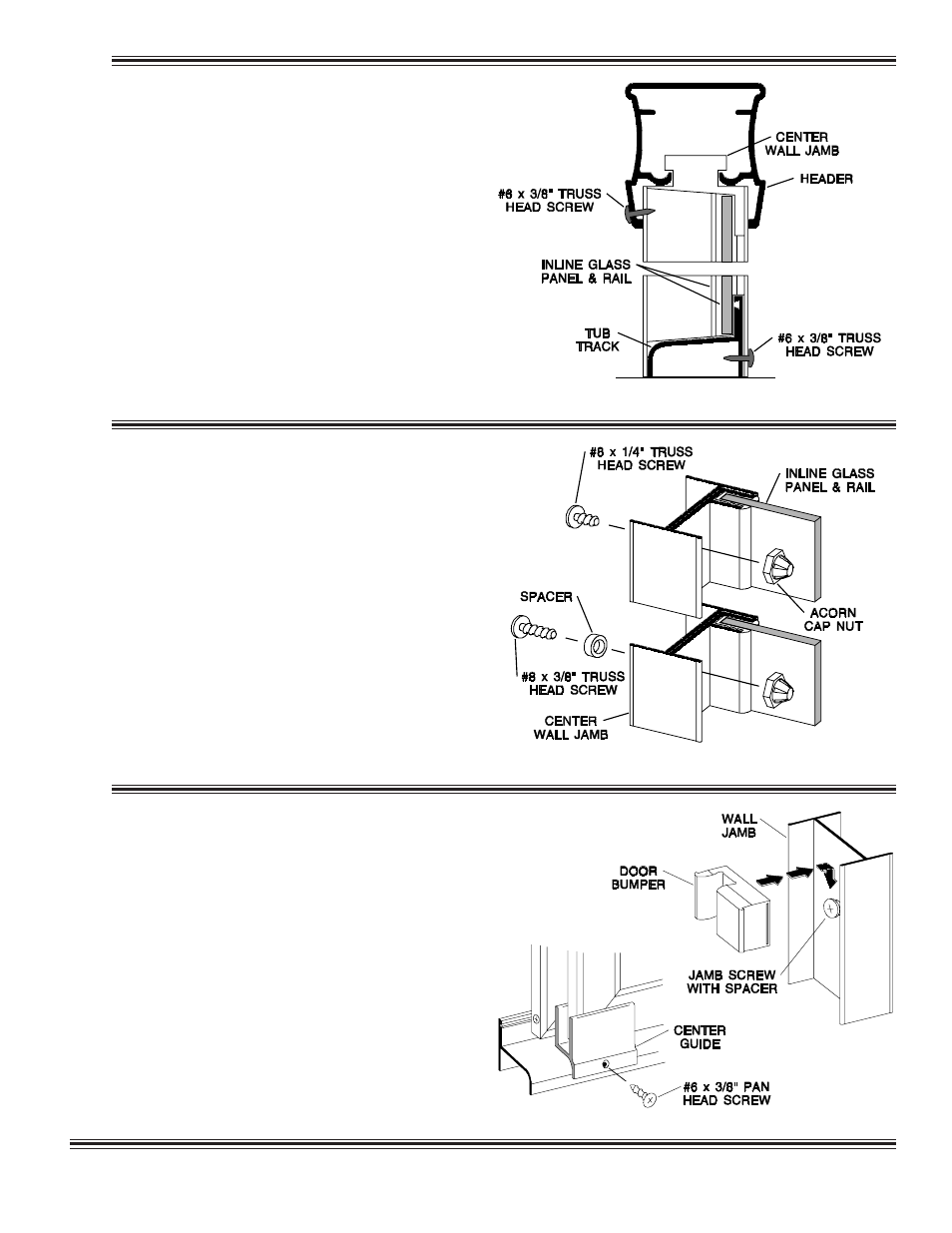

Refer to the primary instruction sheet to assemble
and install the door panels [P P P P P]. Install the bottom
panel guide hardware [R R R R R] and the door panel bumper
hardware [S SS SS] per the primary instruction sheet.
8
Attach the second inline rail [G G G G G] to the center wall
jamb [B B B B B] with two #8-32 x 1/4" truss head screws [L L L L L]
thru the top and bottom holes into acorn cap nuts [M M M M M] on
the inline panel side. Slide a nylon spacer [E E E E E] onto a #8-
32 x 3/8" truss head screw [N N N N N], insert into the center hole
and attach an acorn cap nut.
NOTE: Frameless units will use two jamb bumpers per
side located on the top and bottom mounting screws.
Install the third wall jamb [B B B B B] by engaging the
upper end into the header [F F F F F] and sliding the jamb up
against the second inline rail [G G G G G]. Plumb the center
wall jamb and secure it with a #6 x 3/8" truss head
screw [K
K K K K] thru the exterior face of the tub track [A A A A A] and
another thru the interior face of the header.
