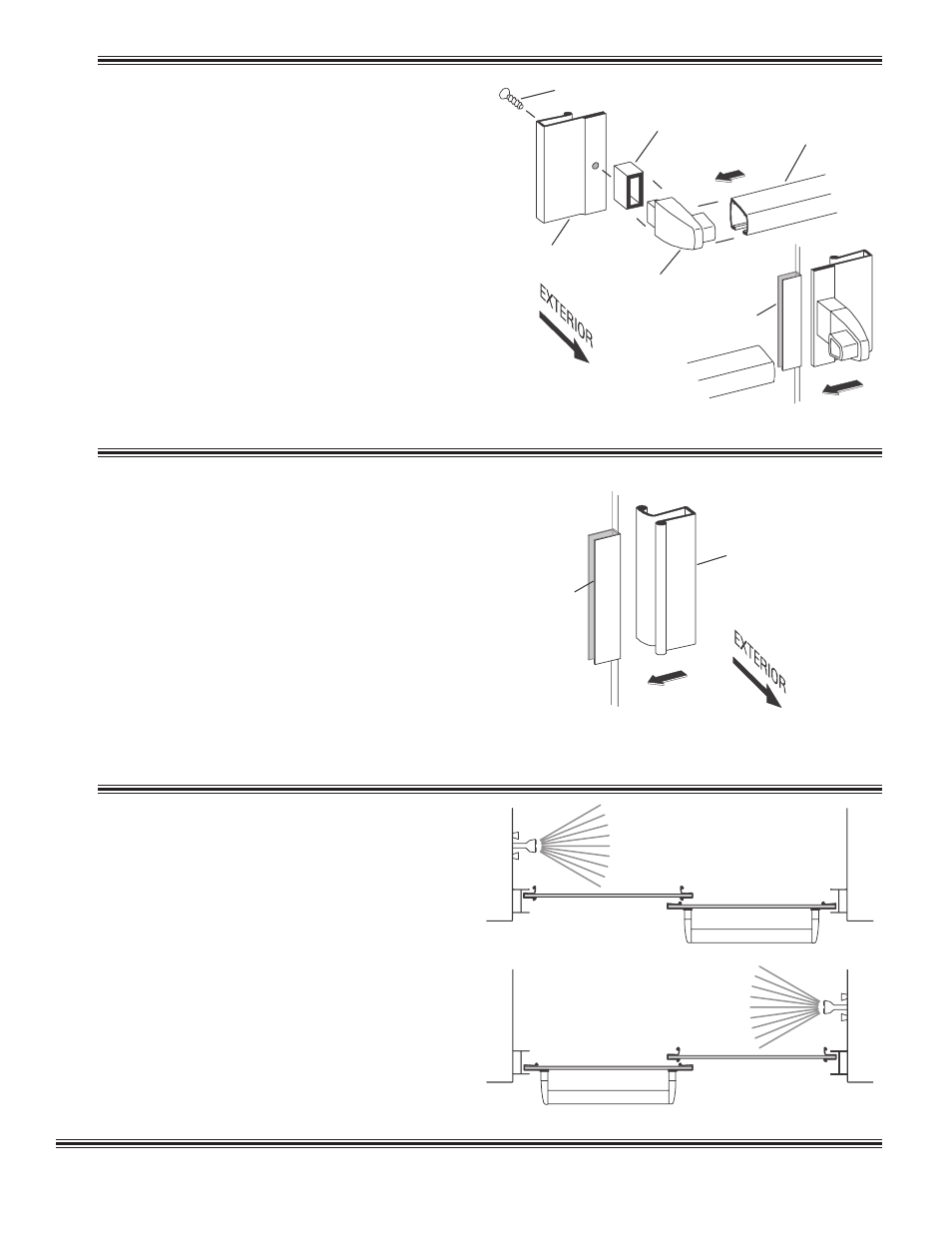

Slide the two trim rings [ J] over the acrylic towel
bar brackets [ K] and attach to the towel bar bases [L]
with two #10-24 x 1/2" flat head screws [ M]. Force the
towel bar [ N] onto one of the brackets. At the center of
the exterior glass panel, press the base (with towel bar
attached) and the vinyl shim [
P] over the glass. Install
the remaining base in a similar manner, locking the towel
bar into place between the two brackets.
NOTE:
When using 1/4" glass it is recommended to
use a small amount of clear silicone sealant and discard
the vinyl shims.
Before installing the door panels, the proper orienta-
tion should be determined. For maximum water-proofing,
the interior panel should always be positioned closest to
the shower head, as shown in this illustration.
9
Press the two pull handles [ R] and vinyl shims [P]
into place on the interior glass panel at the same height
as the towel bar bases [
L] were mounted on the exterior
panel.
NOTE:
When using 1/4" glass it is recommended to
use a small amount of clear silicone sealant and discard
the vinyl shims.
8
TOWEL
BAR
TRIM
RING
#10 x 1/2"
FH SCREW
VINYL
SHIM
TOWEL BAR
BRACKET
TOWEL
BAR BASE
PULL
HANDLE
VINYL
SHIM
