2.2 Overview

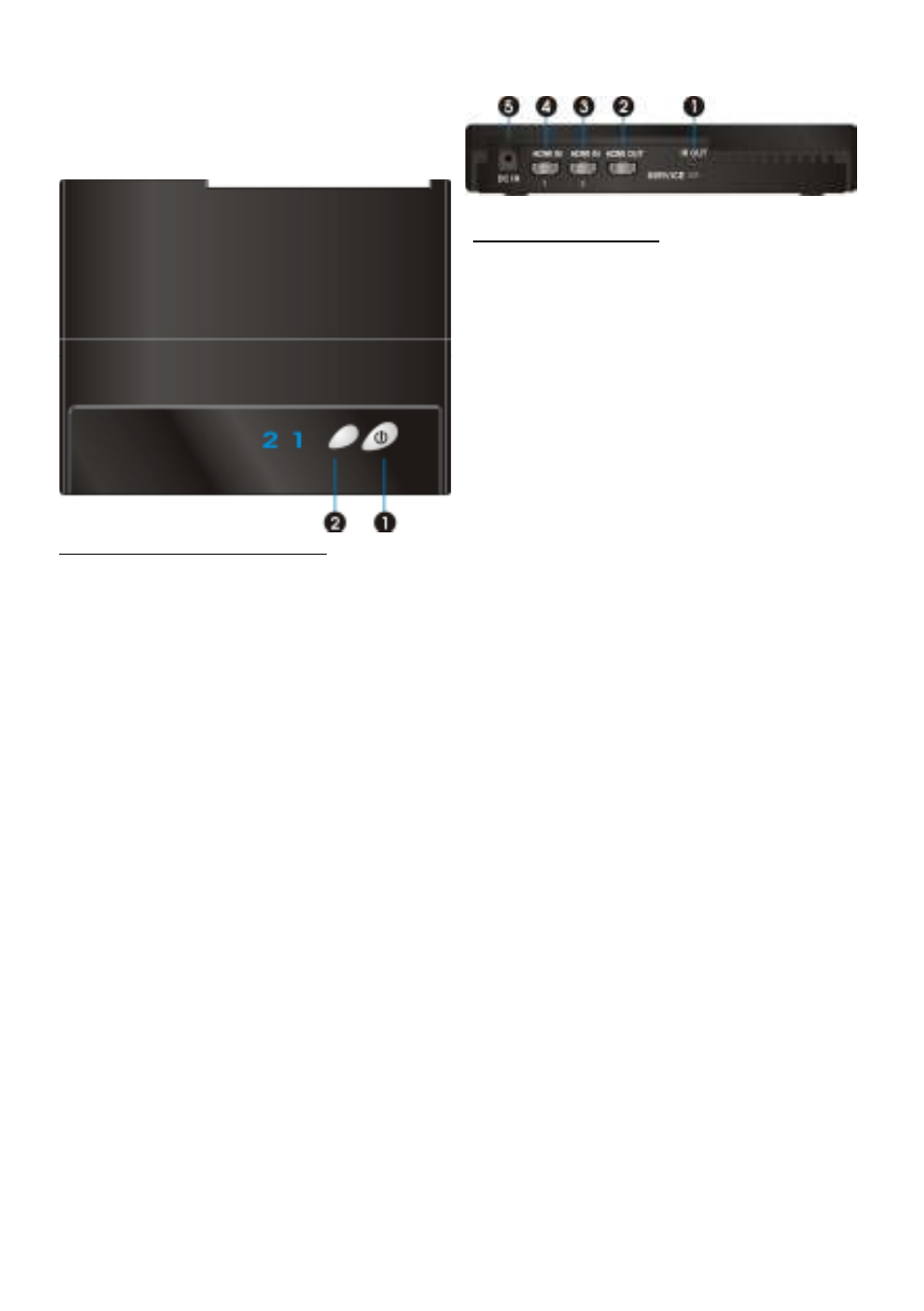

A. TRANSMITTER: Full HD Transmitter
Front Panel Buttons and LEDs
Power Button with LED Indicator
Press to turn the transmitter on and off. The
indicator in the power button is lit solid blue
when the power is on, and turns red in standby
mode.
Source Selection Button
Press to switch between the various inputs of
the transmitter. The one of two LED indicators
next to this button is lit solid blue to show
current input you switch. Press this button to
cycle through connected sources in sequence.
Note:
Make sure you have connected the RECEIVER
correctly to your HDTV set with an HDMI cable,
and have selected the correct HDMI input on
your TV.
If you have more than one pair of ProA/V Media
Extender Wireless HDMI, each transmitter and
receiver should be at least 6.5 feet away from
one another.
If both the transmitter and the receiver exist in
the same room, the suggested the distance
between the two is 6.5 feet minimum.
Main Unit Back Panel
IR Blaster Extender Jack
Plug the IR Blaster Extender Cable into the IR
OUT jack at rear panel of the transmitter. Attach
the IR blaster to the device connected to the
TRANSMITTER.
You
can
point
your
AV
equipment’s existing remote control at the
RECEIVER (usually close to your TV) to control
connected device.
HDMI OUT
To use the “loop-through” feature, you can place
your 1
st
HDTV set close to the AV equipment,
and connect the TRANSMITTER to that HDTV set
via HDMI out, and the AV equipment via HDMI
in. Then, you can enjoy the same digital content
on your 2
nd
HDTV set connected to the
RECEIVER, possibly in another room.
HDMI IN
Connect
Transmitter
to
High-definition
audio/video devices that have an HDMI port
using a provided HDMI cable.
DC IN
For connecting the TRANSMITTER power
adapter.
Note:
The TRANSMITTER can be connected two
audio/video devices running on HDMI cable,
plus looping through the signals to the HDTV set
via the HDMI OUT port at the same time. Only
one AV source connected to the TRANSMITTER
can be selected and displayed on either the
HDTV also connected to the TRANSMITTER, or
on a 2nd HDTV possibly in a different room,
once the transmitter is paired successfully with
receiver connected to the 2nd HDTV set.
