Aero Twin ATRS-100 - Manual (Page 6)

Aero Twin, Inc. Remote Nose Gear Strut Servicing Port Installation and Maintenance Instructions
Kit No. ATRS-100 Document No. ATRS1-IM
Page 6 of 6
Revision: A, dated: 02/13/03
6. Drill bolt holes to 0.189 inch diameter with a #12 drill bit (outer two holes).
7. Drill fitting hole to 0.563 inch diameter with a 9/16” drill bit (center hole).
8. Install kit components as shown in Fig 2, at locations shown in Fig. 1.

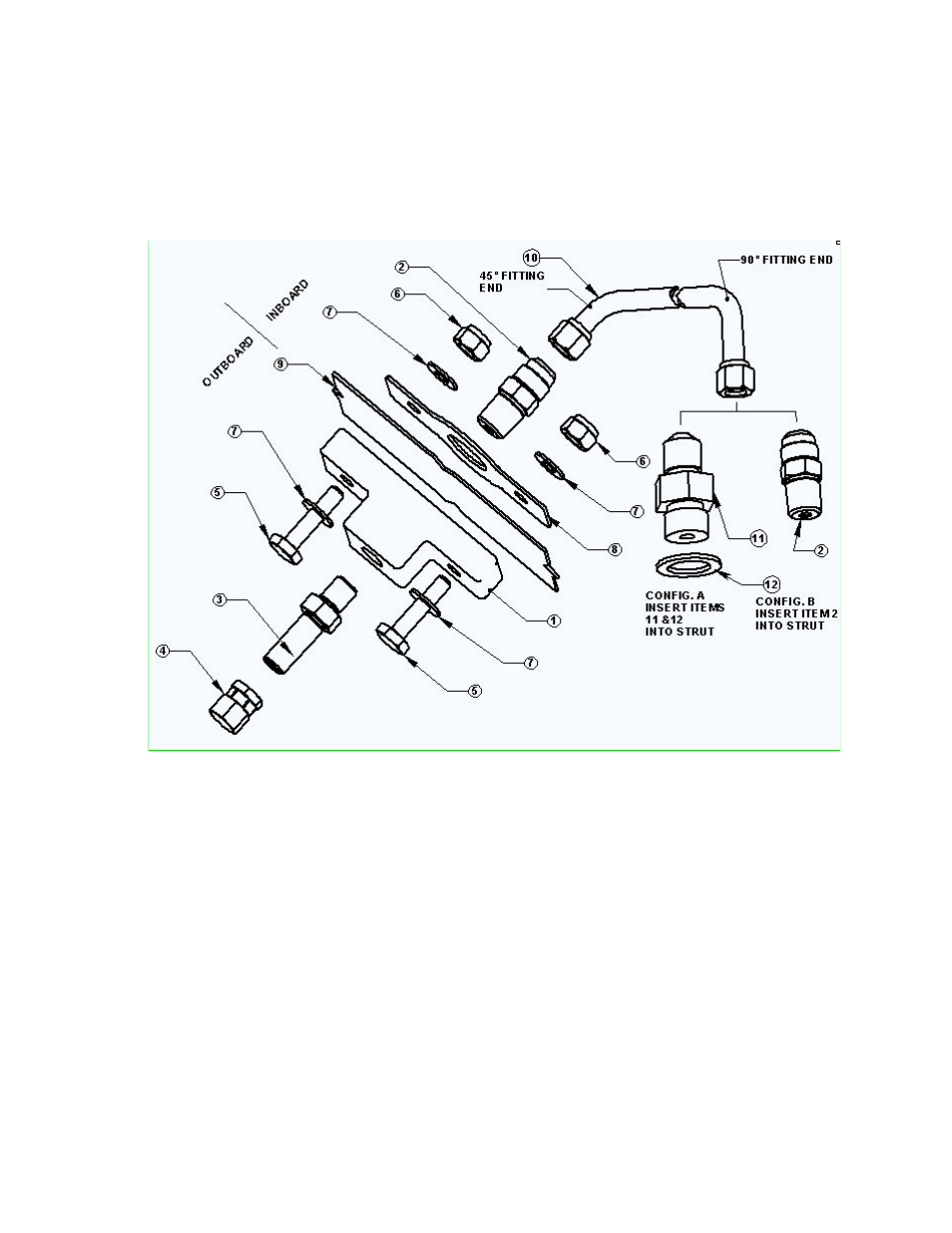

Fig. 2 Component Assembly of ATRS-100
9. Service strut per procedures in aircraft maintenance manual, using the new remote
servicing port. Verify that there are no leaks.
10. Complete FAA Form 337 or equivalent to indicate that this kit has been installed in
accordance with this STC.
Note: Use thread sealant on pipe threads, do not over tighten flare fittings.
Instructions for Continued Airworthiness
14 CFR 43, Appendix D is adequate for continued airworthiness of this installation.
END
