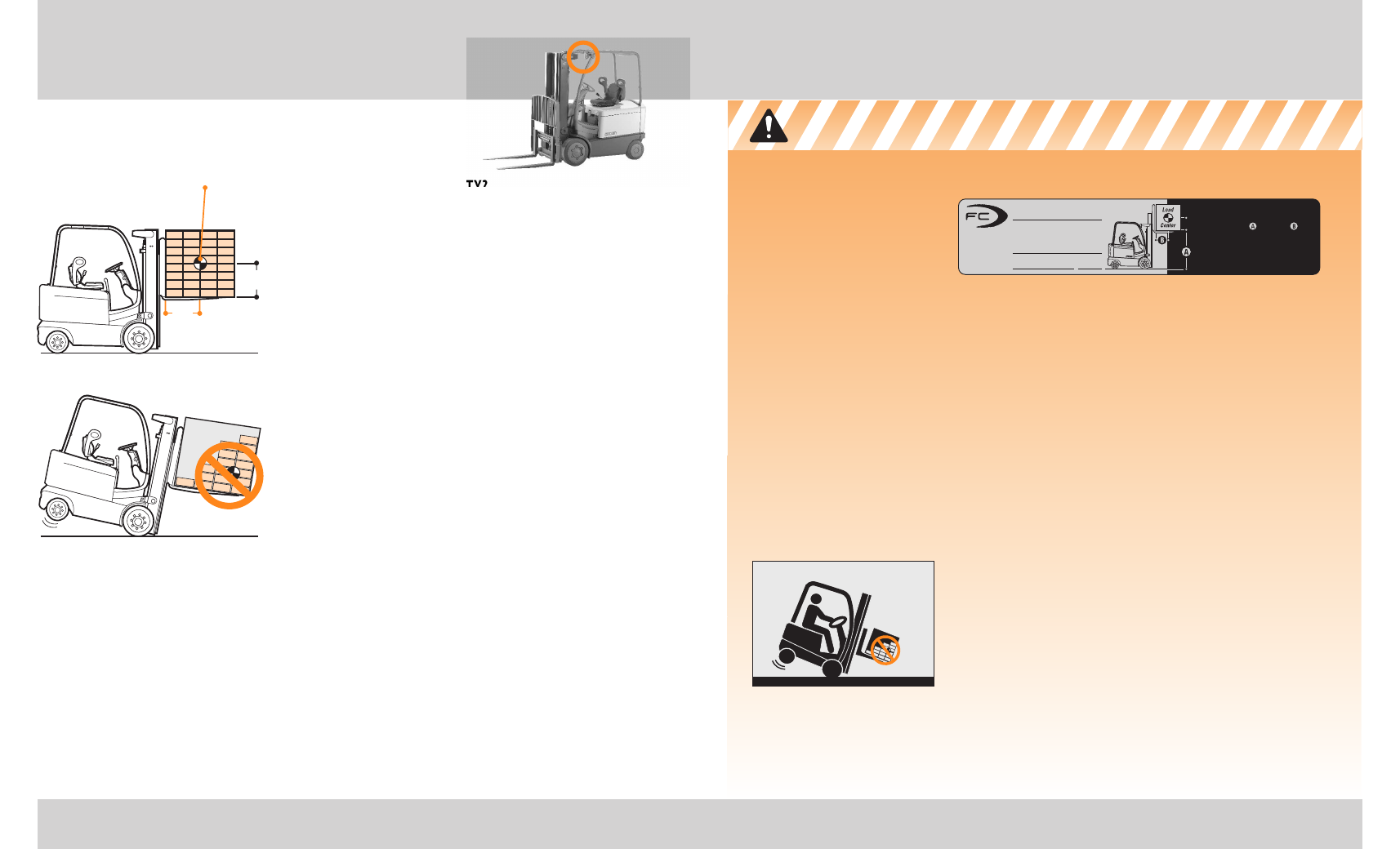

Know the Hazards
KNOW YOUR LOAD
Do not exceed the capacity shown on your truck's
capacity plate. Be careful when handling long, high or
wide loads. Do not handle unstable loads.
EXCEEDING TRUCK CAPACITY CAN CAUSE AN ACCIDENT
Know the capacity of your truck as shown on your
capacity plate. Make certain you use the correct units
of measure. Pay attention to:
• Weight of load
• Load center
• Lift height
• Position of mast.
CENTER THE LOAD
Your truck could tip over if a load is shifted to the front
or side of a pallet or container. Make sure your load is
evenly distributed and centered over the forks.
HYDRAULIC OPERATIONS CAN AFFECT STABILITY
Capacities shown on your capacity plate are with the
mast vertical. Be extra careful when tilting a load. (This
also applies to other accessories or attachments your
truck may have, such as sideshift, carton clamp, push-
pull, etc.)
SAMPLE CAPACITY PLATE
The information shown on this
sample plate does not apply to
your truck.
LOADS MUST BE EVENLY DISTRIBUTED
Your truck could tip over, in any direction, if a
load is shifted to the front or side of a pallet or
container.
WHAT IS YOUR TRUCK CAPACITY?
Capacity is the load (including pallet or
container) that can be lifted to a given height
at a given load center. See the capacity plate on
your truck. Make certain you use the correct units
of measure.
WHAT IS LOAD CENTER?
Load center is the distance from the load backrest
or vertical face of the fork to the center of an evenly
distributed load.
600mm
(24 in.) Max
Load
Center
Center of evenly
distributed load
Capacity & Load Center
Capacity & Load Center 12 11 Capacity & Load Center
SAMPLE
600(24)
Serial Number
Attachment Data
Truck Weight with Max. Battery
Truck Type
Capacity
Units of measure, kg/mm(lb/in)
4000
S E R I E S Sideshifter
123456789XX F
9724 (7788)
1745(3850)
1815(4000)
1385(3050)
1450(3200)
5230(206)
4775(188)
5230(206)
4775(188)
600(24)
600(24)
750(30)
750(30)
Capacity with Mast Vertical
354-001B
