473721007 • 17
9
10

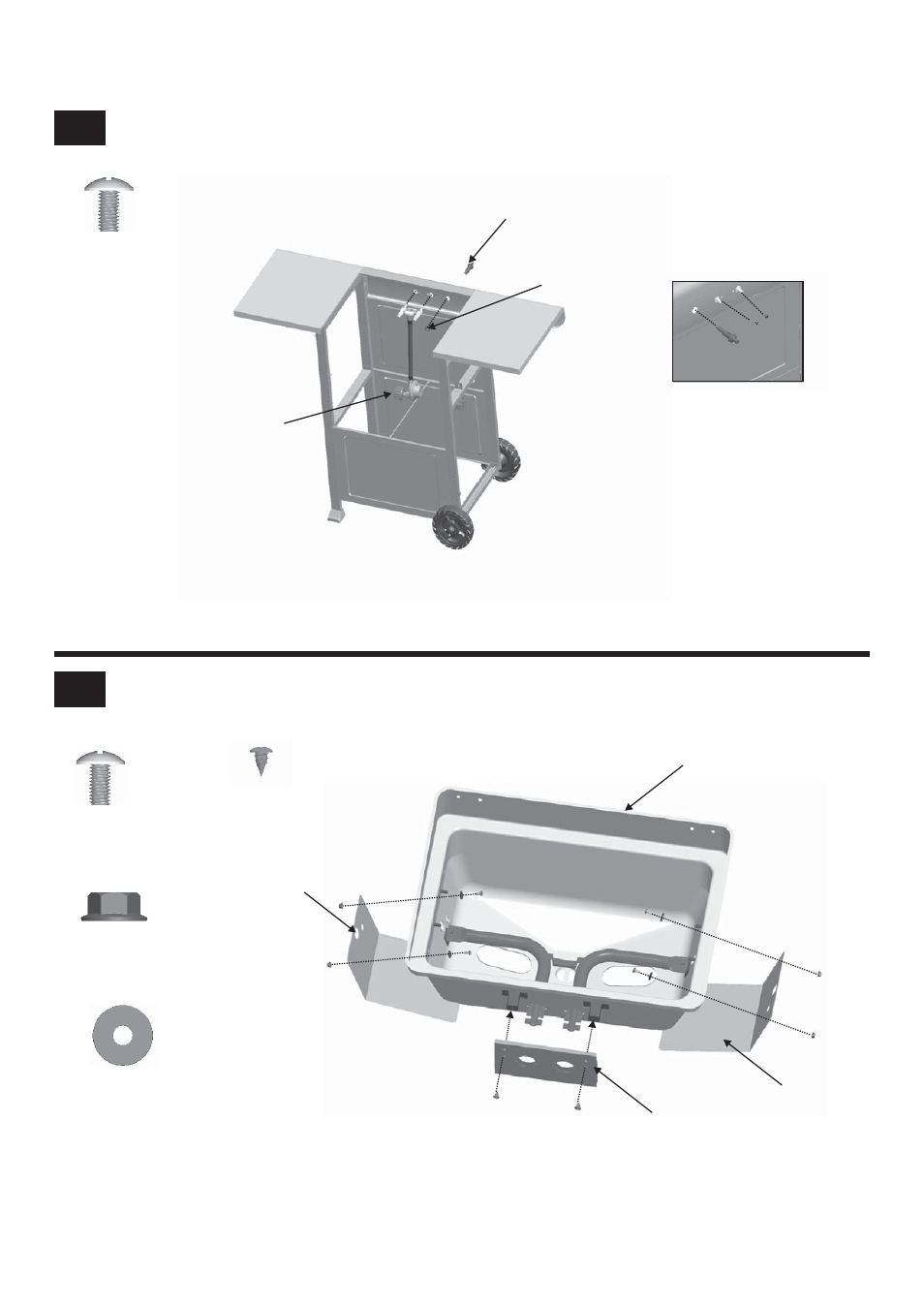

Attach valve\hose\regulator assembly to control panel using two #10-24 X1/2" machine screws. Attach ignitor to
a stamped nut.
control panel using
Ignitor
80008322
Stamped Nut
Valve/Hose/Regulator
80009002
#10-24 X ½”
Machine Screw
Qty. 2
Attach two wind shields to firebox assembly using two #10-24 X1/2” machine screws, fiber washers and #10-24 flange nuts on each
side. Attach valve heat shield using two #6 sheet metal screws.
#10-24X1/2’
Machine Screw
Qty: 4
Fiber Washer
Qty: 4
#10-24
Flange Nut
Qty: 4
#6 Sheet Metal Screw
Qty: 2
Firebox
Windshield
80009019
Firebox Assembly
80012668
Valve Heat
Shield
80009047
Firebox
Windshield
80009019
