Craftsman 917.272762 - Manual (Page 44)

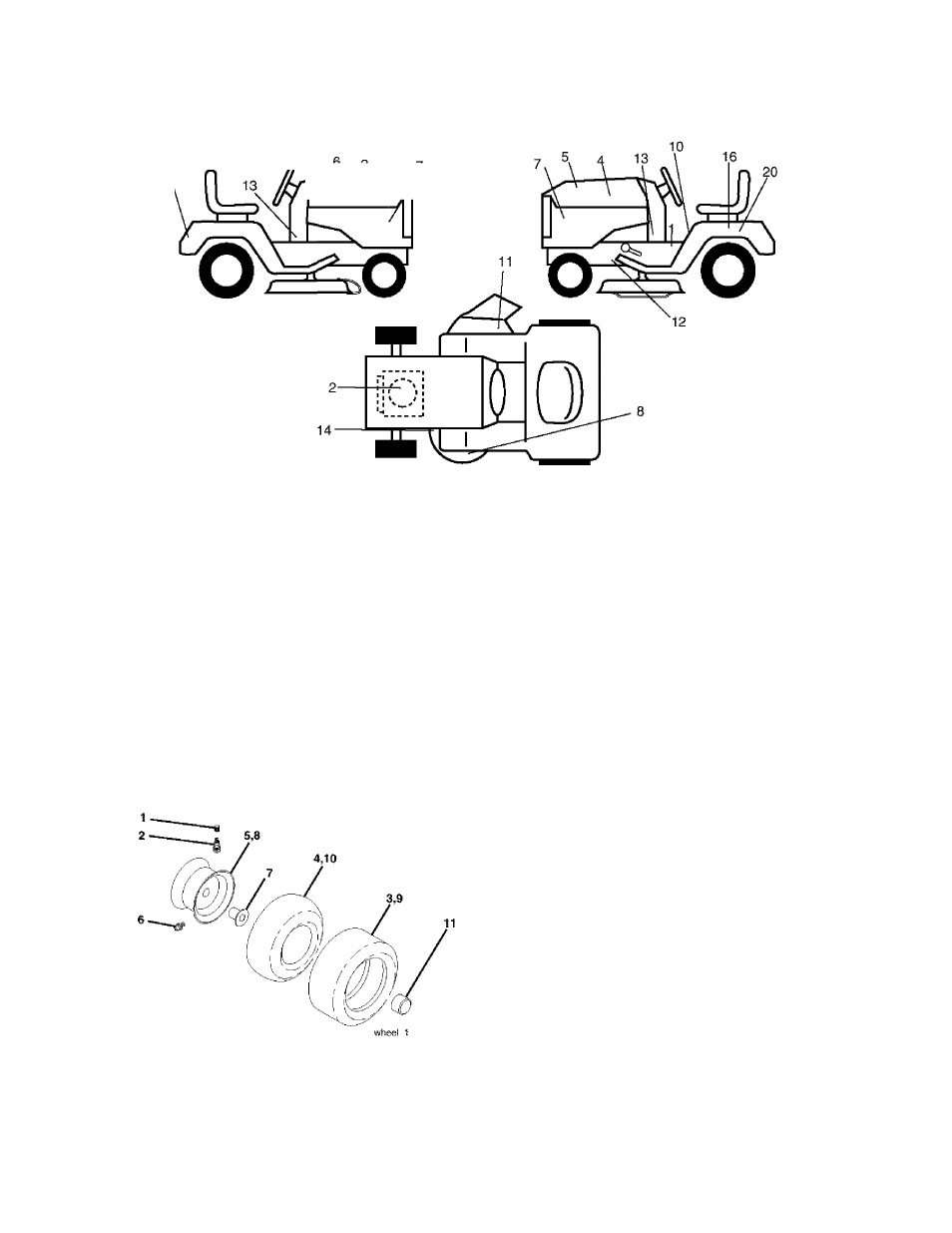

DECALS
TRACTOR--MODEL NUMBER 917.272762
t H~>¿
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 156811 Decal, Oper. Instr. 13 183827 Decal, Lower Dash
2 188097 Decal, HP Engine 14 160396 Decal, V-Belt Schematic
3 184728 Decal, Hood, R.H. 16 138047 Decal, Battery Diehard
4 184729 Decal, Hood, L.H. 20 149516 Decal, Battery Dngr/Psn Eng
5 184915 Decal, Hood Replacement - - 178392 Decal, Chassis Disconnect
6 133644 Decal, Customer Maintenance LTH 2000
7 184730 Decal, Hood Side - - 138311 Decal, Lift Handie
8 172331 Decal, Deck - - 165800X428 Pad Footrest LH STLT
9 184899 Decal, Fender, Craftsman . , 165799X428 Pad Footrest RH STLT
10 156439 Decal, Fender Danger . , 188095 Owner's Manual, English
11 179128 Decal, Deck B 42” - -
188096 Owner's Manual, Spanish
12 146046 Decal, V-Be!t Drive Schematic
WHEELS & TIRES KEY PART
NO.
NO. DESCRIPTION
1 59192 Valve Cap, Tire
2 65139 Stem, Valve
3 106222X Tire, Front
4 59904 Tube, Front Tire {Not Provided,
Service Item Only)
5 106732X624 Rim, Front
6 278H Fitting, Grease (Front Wheel
Only)
7 9040H Bearing, Flange (Front Wheel
Only)
8 106108X624 Rim, Rear
9 122082X Tire, Rear
10 7152J Tube, Rear Tire (Not Provided,
Service Item Only)
11 104757X428 Cap, Axle
- - 144334 Sealant, Tire 10 oz.
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
44
