TRACTOR - - MODEL NUMBER 917.272762

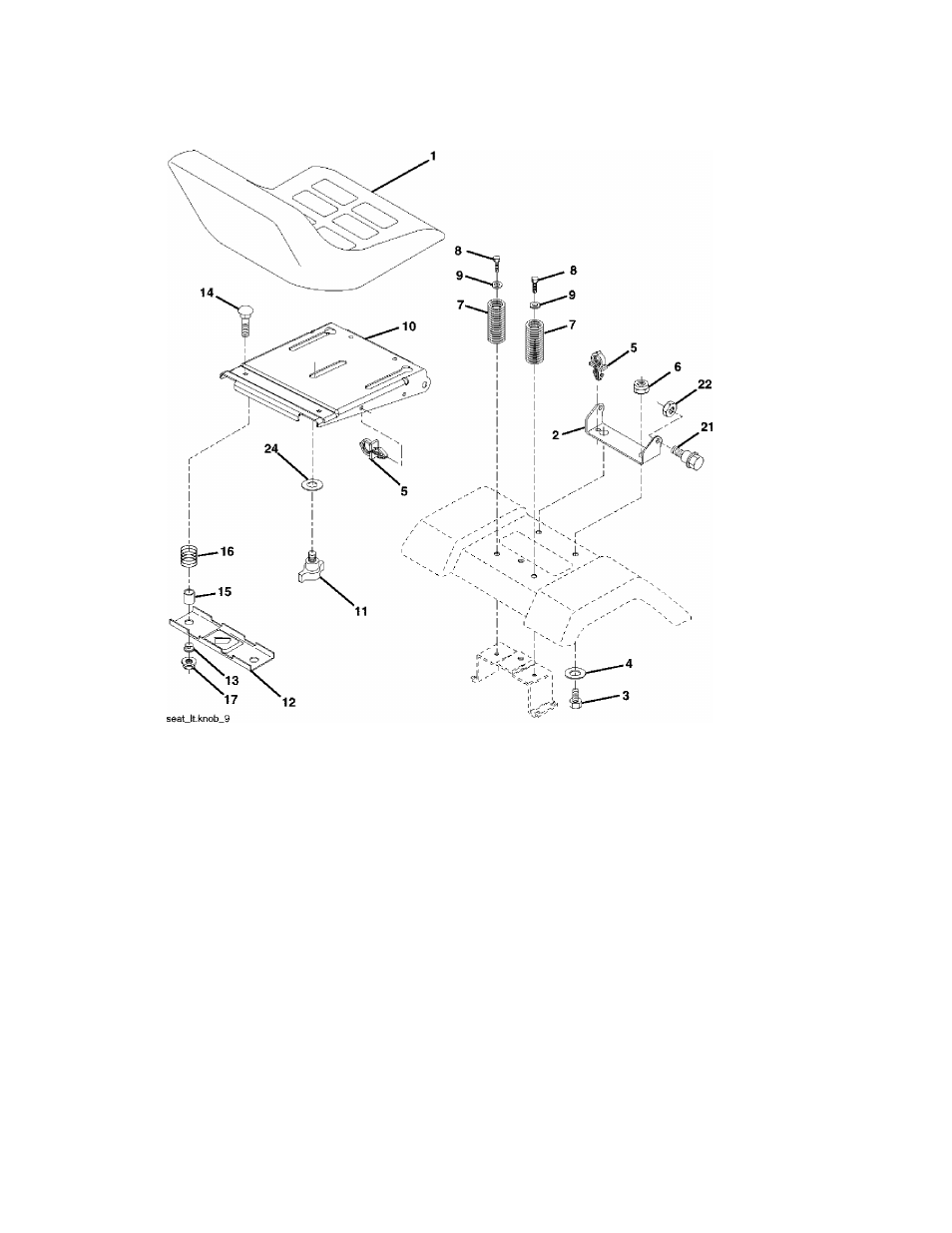

SEAT ASSEMBLY
KEY
NO. PART
NO.
DESCRIPTION
KEY
NO. PART
NO.
DESCRIPTION
1 180597 Seat 12 121246X Bracket, Switch Mounting
2 180166 Bracket, Pivot, Fender 13 121248X Bushing, Snap
3 71110616 Bolt 14 72050412 Bolt, Carriage 1/4-20 x 1-1/2
4 19131610 Washer 13/32 x 1 x 10 Gauge 15 134300 Spacer, Split .28 x .88
5 145006 Clip, Push-in Hinged 16 121250X Spring
6 STD541437 Nut 17 123976X Locknut, Flange 1/4 Grade 5
7 124181X Spring, Seat 21 171852 Bolt, Shoulder 5/16-18 Unc
8 17000616 Screw 3/8-16x1-1/2 22 73800500 Nut
9 19131614 Washer 13/32 x 1 x 14 Gauge 24 19171912 Washer 17/32 x 1-3/16 x 12 (
10
11 180186
166369 Pan, Seat
Knob Seat
NOTE: Ail component dimensions given in U.S.
inches 1 inch = 25.4 mm
43
