TRACTOR - - MODEL NUMBER 917.272762

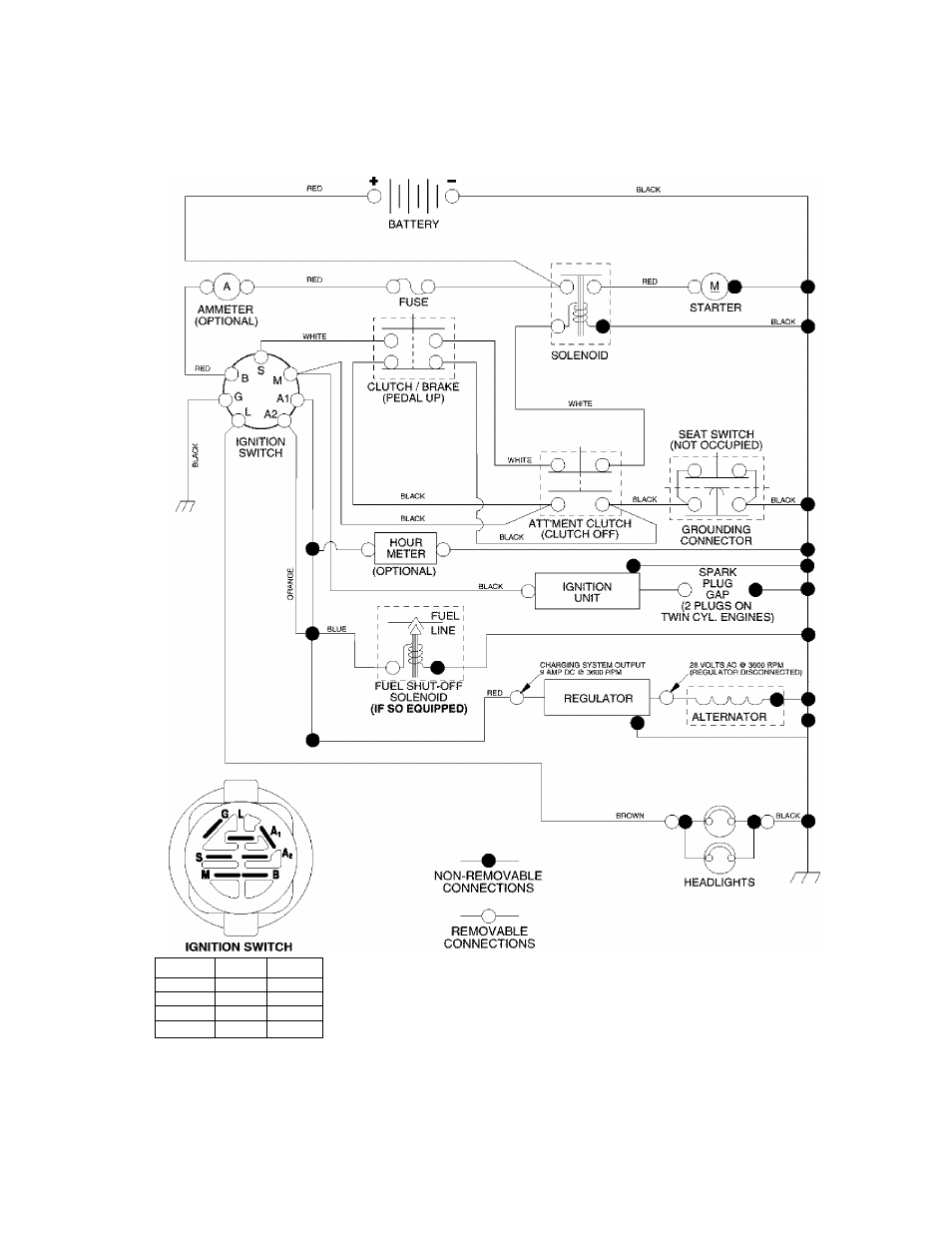

SCHEMATIC

POSITION CIRCUIT “MAKE"

OFF

M4-G+A1

NONE

RUN/LIGHT

B-I-A1

A2-6-L

RUN

B-I-A1

NONE

START

B + S + A1

NONE

WIRING INSULATED CUPS

NOTE:

!F WIRING INSULATED CUPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.
