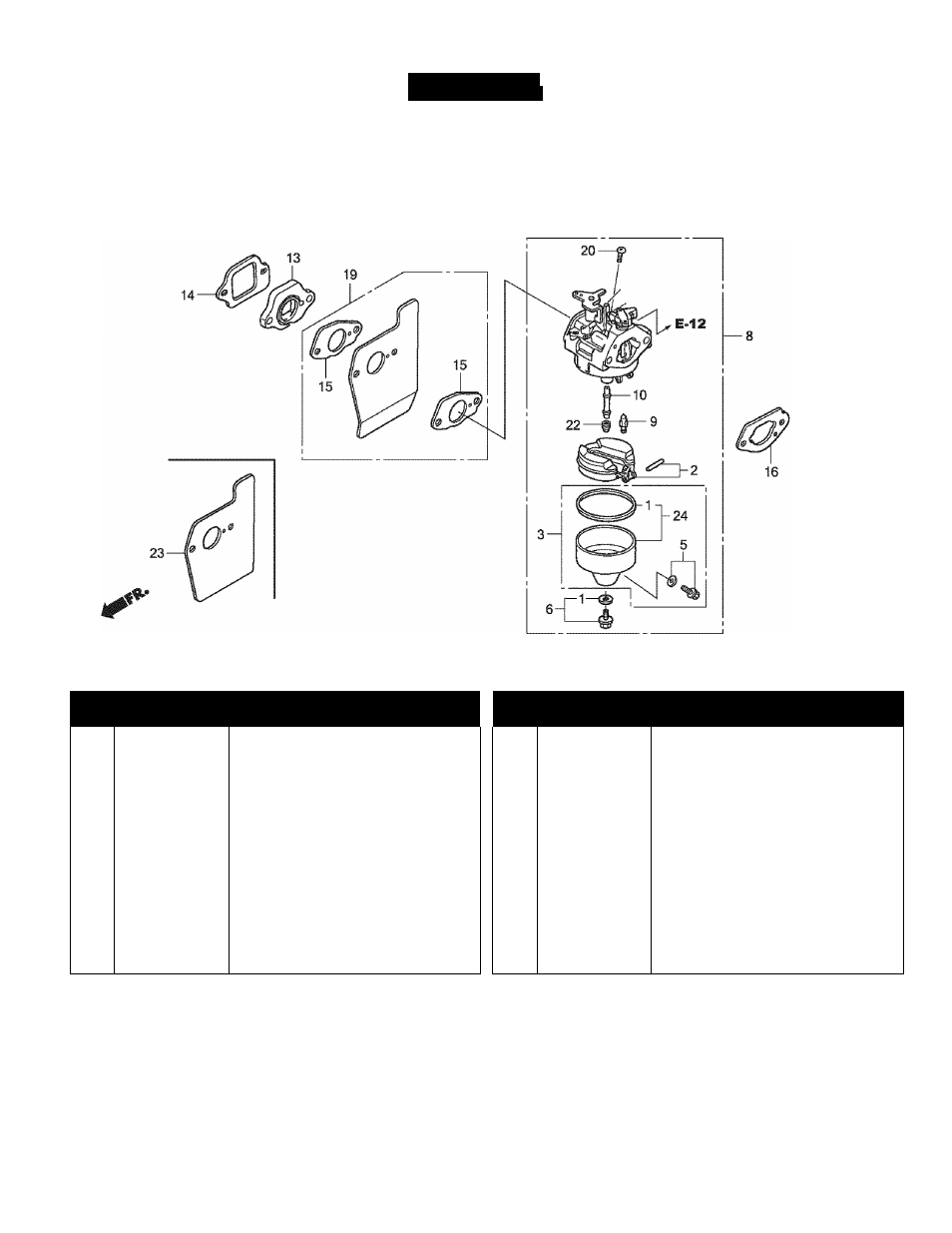

PARTS LIS
Craftsman Engine iVlodei No. GCV160LAS3A
For Self-Propelled IVlower IVlodei 247.37683
I
J
Ref.
No.
Part No.
Description
Ref.
No.
Part No.
Description
1
16010-883-015
Gasket Set
14
16212-ZL8-000
Gasket, Insulator
2
16013-ZL1-003
Float Set
15
16221-883-800
Gasket, Carburetor (to Ser. # 6349022)
3
16015-887-782
Chamber Set, Float (to Ser.#BB62Z A)
16
16228-ZL8-000
Gasket, Carburetor
5
16024-ZE1-811
Screw Set, Drain (to Ser.#BB62Z A)
19
19650-ZM0-000
Guide, Air (to Ser. # 6349022)
6
16028-ZE0-005
Screw Set
20
93500-05006-0H
Screw, Pan (5 x 6)
8
16100-Z0L-851
Carburetor Assy, (to Ser. # 7161134)
22
99101-124-0600
Jet, Main (#60)
16100-Z0L-852
Carburetor Assy, (from Ser. # 7161135)
99101-124-0620
Jet, Main (#62)
9
16155-ZM0-013
Valve, Float
99101-124-0650
Jet, Main (#65)
10
16166-ZM0-003
Nozzle, Main
23
19651-ZOL-000
Guide, Air (from Ser. # 6349023)
13
16211-ZL8-000
Insulator, Carburetor
24
16015-Z0L-881
Chamber Set, Float (from Ser.# BB62Z B)
