Page 5: Hardware package contents shown full size
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

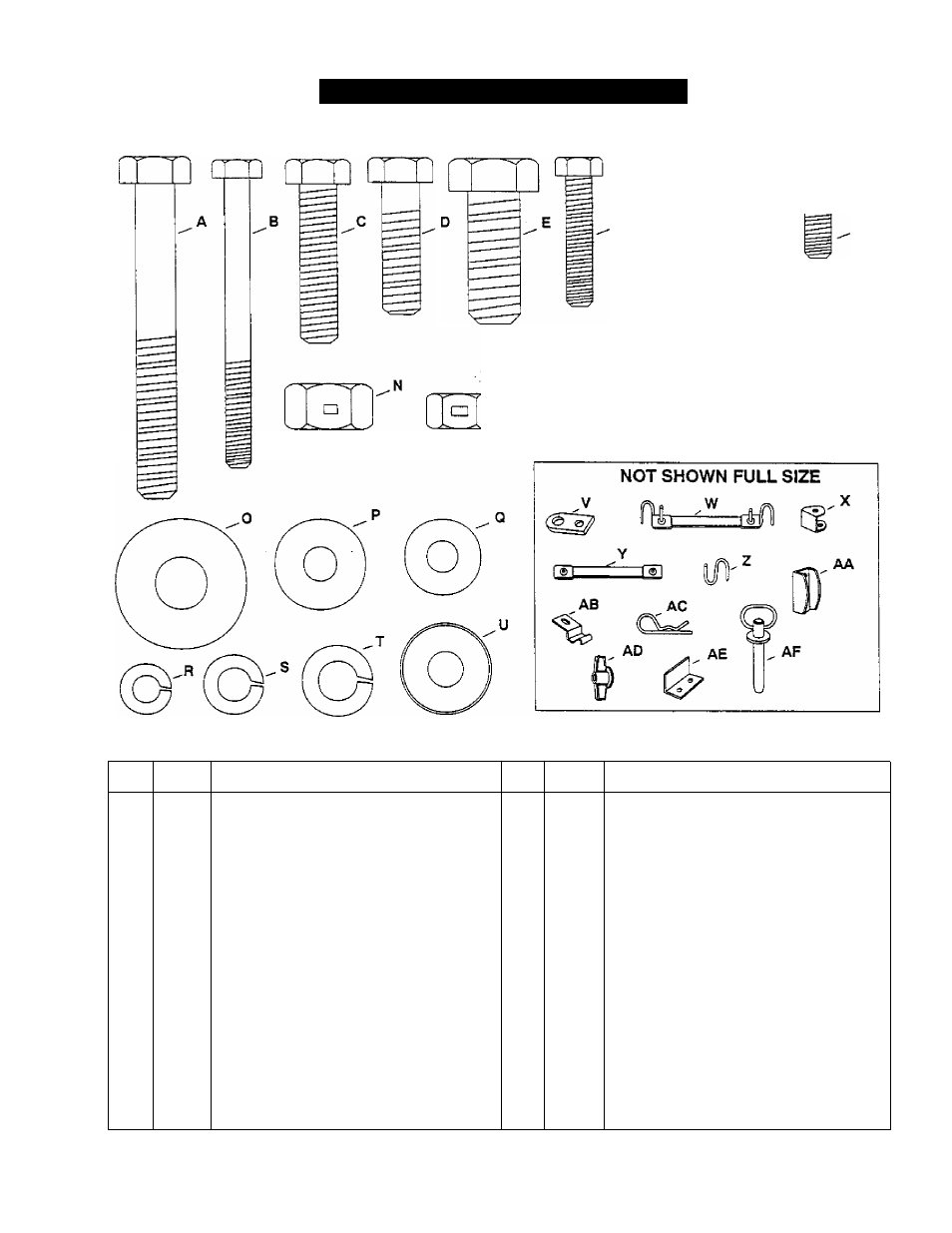

HARDWARE PACKAGE CONTENTS
SHOWN FULL SIZE
■ ■ ca c
T]
dD-
K
M
“Y
I
□
HARDWARE PACKAGE (Chipper Vac Carton)
Ref.
Qty.
Description
Ref.
Qty.
Description
A
3
Bolt, Hex 3/8-16
X
3"
S
4
Lockwasher, 5/16" Spring Type
8
4
Bolt, Hex 1/4-20
X
2-3/4"
T
5
Lockwasher, 3/8"
C
5
Bolt, Hex 3/8-16
X
1-1/2"
u
3
Washer, 5/16" Bell (cupped)
D
2
Bolt, Hex 3/8-16x1-1/4"
V
1
Hitch Plate "
E
1
Bolt, Hex 1/2-13x1-1/4"
w
1
Strap, Tarp 25"
F
2
Bolt, Hex 1/4-20
X
1-1/4"
X
5
Clamp, Cart Extension
G
2
Bolt, Hex 1/4-20
X
1"
Y
2
Strap, Tarp (Less Hooks)
H
6
Bolt, Hex 5/16-18x3/4"
z
2
Hook #32
1
28
Bolt, Hex 1/4-20 x 3/4"
AA
2
Door Latch
J
4
Bolt, Hex 5/16-18 x 3/4" Thd. Form.
AB
2
Door Support
K
38
Nut, Hex 1/4-20
AC
1
Pin, Hair Cotter
L
9
Nut, Hex Lock 5/16-18
AD
3
Knob ■
M
5
Nut, Hex Lock 3/8"
AE
1
Angle Stop
N
1
Nut, Hex Lock 1/2-13
AF
1
Hitch Pin
0
1
Washer, Flat 7/16"
P
6
Washer, Nylon 21/64"
Q
24
Washer, Rat 1/4" STD
R
36
Lockwasher, 1/4“ Spring Type
