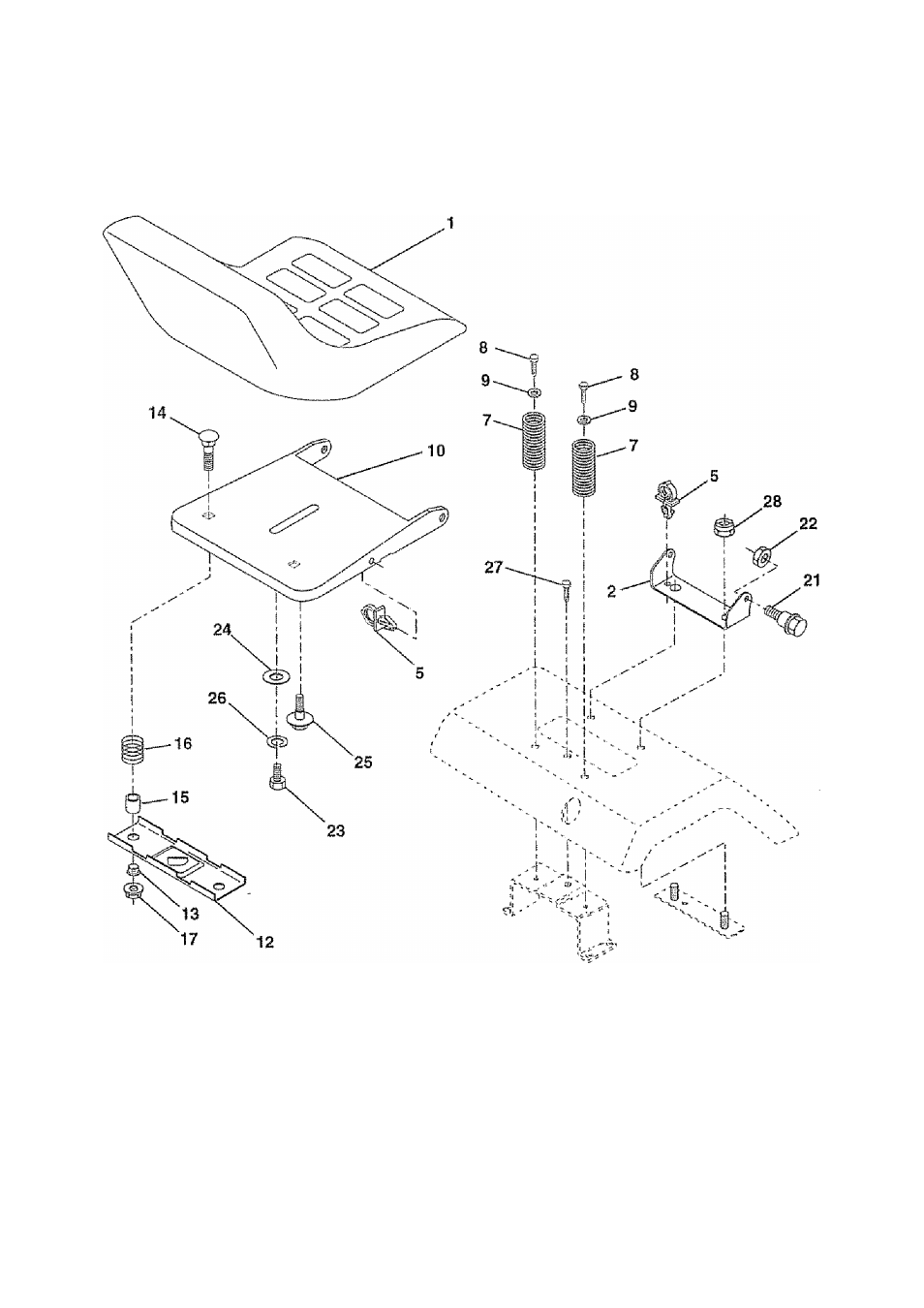

SEAT ASSEMBLY
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.252560
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
140123
Seat
17
123976X
Nut Lock 1/4 Lge Fig Gr 5 Zinc
2
140551
Bracket Pnt Pivot Seat {blk)
21
139888
Bolt Shoulder 5/16-18 line Btkz
5
145006
C!ip Push-in
22
STD541431
Nut Lock Hex W/!ns 6/16-18
7
124181X
Spring Seat Cprsn 2 250 Bik Zi
23
74780814
Bolt Fin Hex 1/2-13 X 7/8 Gr 5
8
17490508
Screv^ Thdroi 3/8-16 X 1 Ty-lt
24
19171912
Washer 17/32 X 1-3/16 X 12 Ga
9
19131614
Washer 13/32 X 1 X 14 Ga
25
127018X
Bolt Shoulder 5/16-18 X 62
10
140SS2
Pan Pnt Seat (blk)
26
STD551150
Washer Lock Hvy Hid Spr 1/2
12
121246X
Bracket Pnt Mounting Switch
27
17490608
Screw Thdroi. 3/8-16x1/2
13
121248X
Bushing Snap Blk Nyl 50 id
28
STD541437
Nut Crownlock 3/8-16 Line
14
72050411
Bolt Rdhd Shi Nk 1/4-20x1-3/8
15
134300
Spacer Spilt 28X96 Zinc
NOTE;
Ail component dimensions aiven in U,S. inches-
16
121250X
Spring Cprsn 1 27 Blk Pnt
1 inch = 25,4 mm
